Installation Procedure

  1. Install the drive belt tensioner.

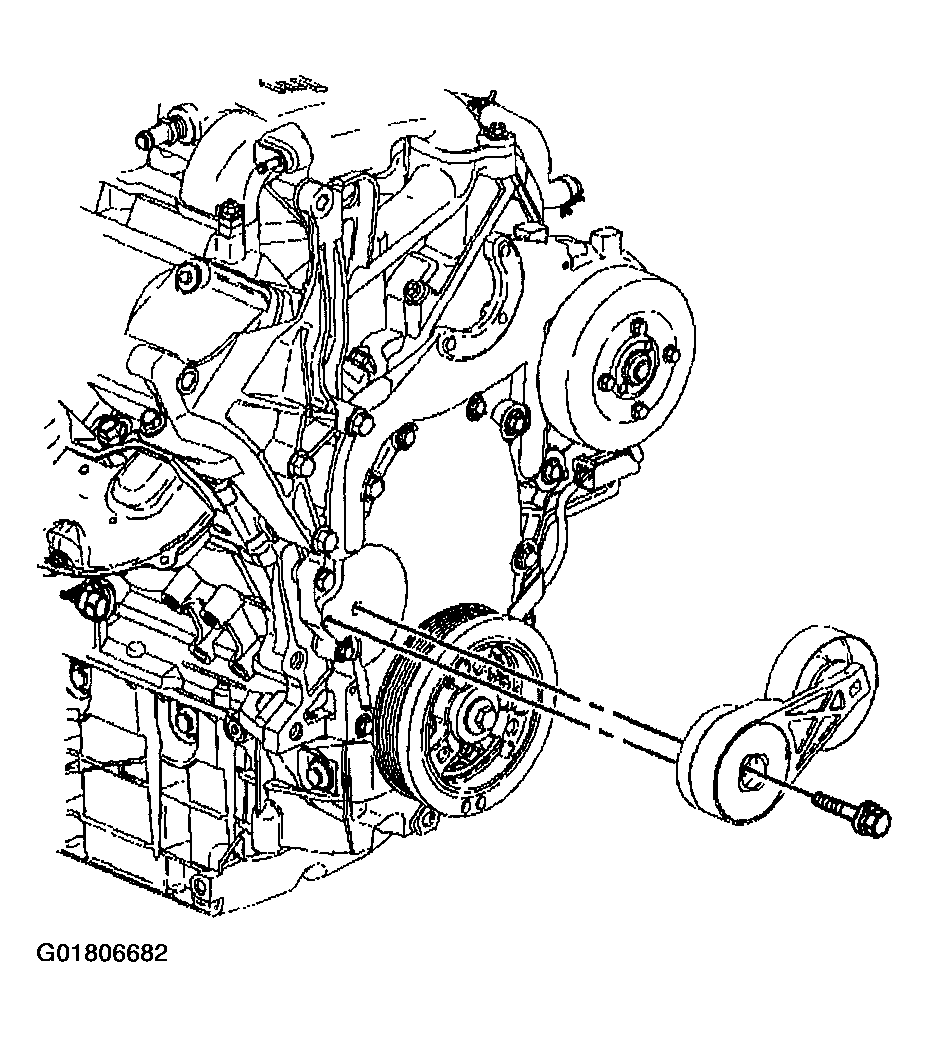

    2. Fig 1: Drive Belt Tensioner
    G01806682Courtesy of GENERAL MOTORS CORP.
  2. Install the drive belt tensioner bolt. Tighten the drive belt tensioner bolt to 50 N.m (37 ft lbs).
  3. Install the drive belt. Refer to Drive Belt Replacement .
  4. Install the coolant recovery reservoir.
