Removal Procedure

Important:  After the new drive belt is installed, make sure that the mark on the drive belt tensioner is in range, as indicated on the tensioner housing.

  1. Using a 3/8 drive breaker bar (1) rotate the drive belt tensioner in order to release the pressure on the drive belt.

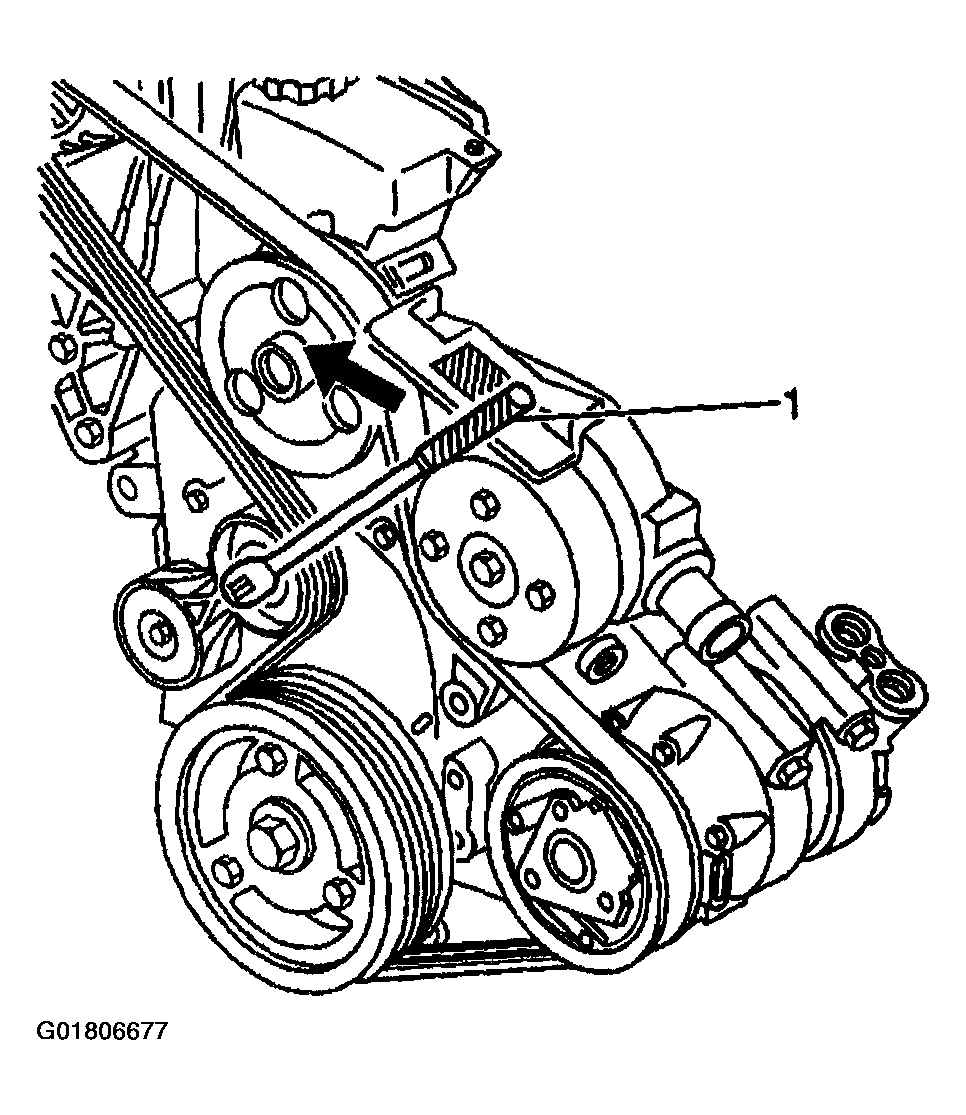

    Fig 1: Rotating Drive Belt Tensioner
    G01806677Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt.

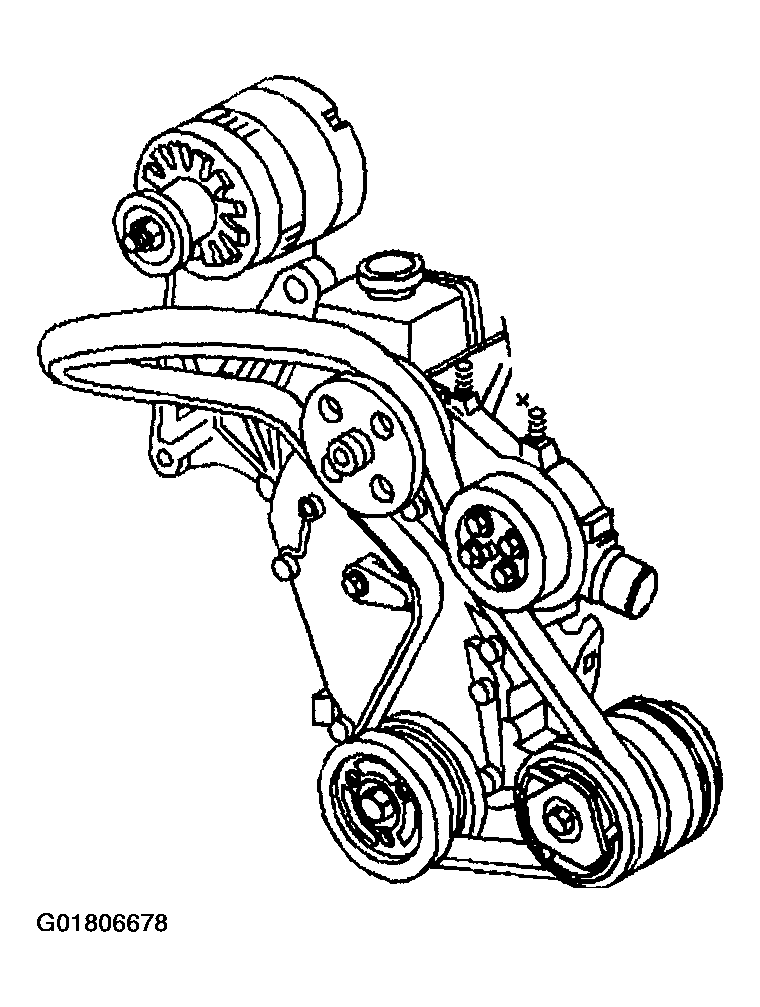

    Fig 2: Removing Drive Belt
    G01806678Courtesy of GENERAL MOTORS CORP.
