Installation Procedure

  1. Install the drive belt to all of the pulleys except the generator pulley.
  2. Rotate the drive belt tensioner in order to install the drive belt over the generator pulley.
  3. Make sure that the drive belt is properly routed.

    Important:  Make sure the mark on the drive belt tensioner is in range, as indicated on the tensioner housing.

  4. Make sure the drive belt tensioner is operating properly.

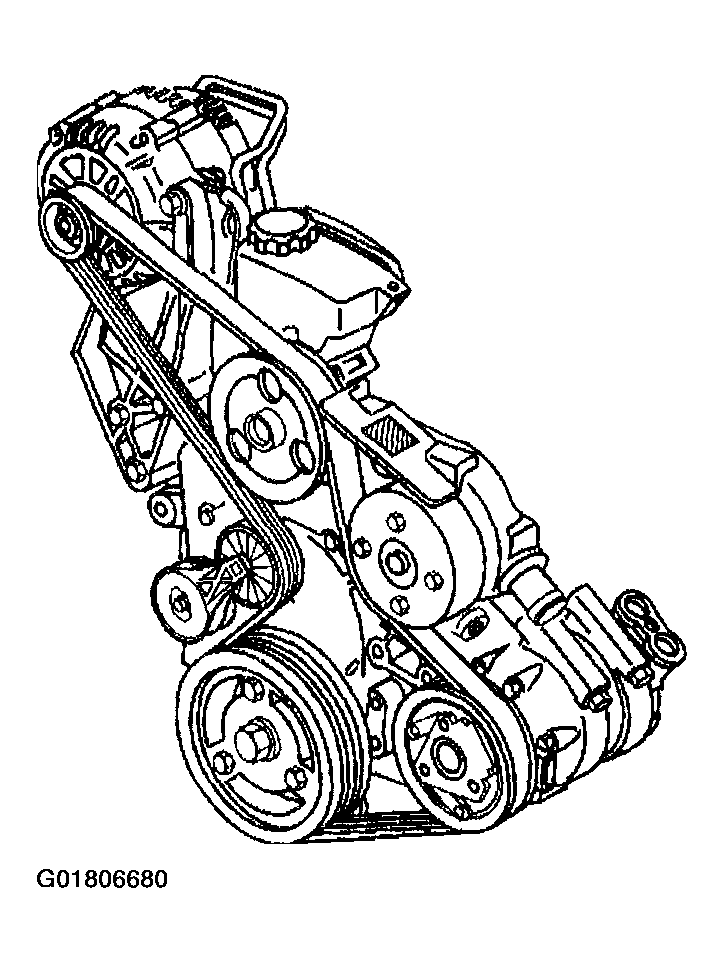

    Fig 1: Drive Belt Routing
    G01806680Courtesy of GENERAL MOTORS CORP.
