Removal Procedure

  1. Remove the oil pan. Refer to Oil Pan Replacement .
  2. Remove the oil pump Refer to Oil Pump Replacement .
  3. Remove the crankshaft oil deflector nuts.
  4. Remove the crankshaft oil deflector.

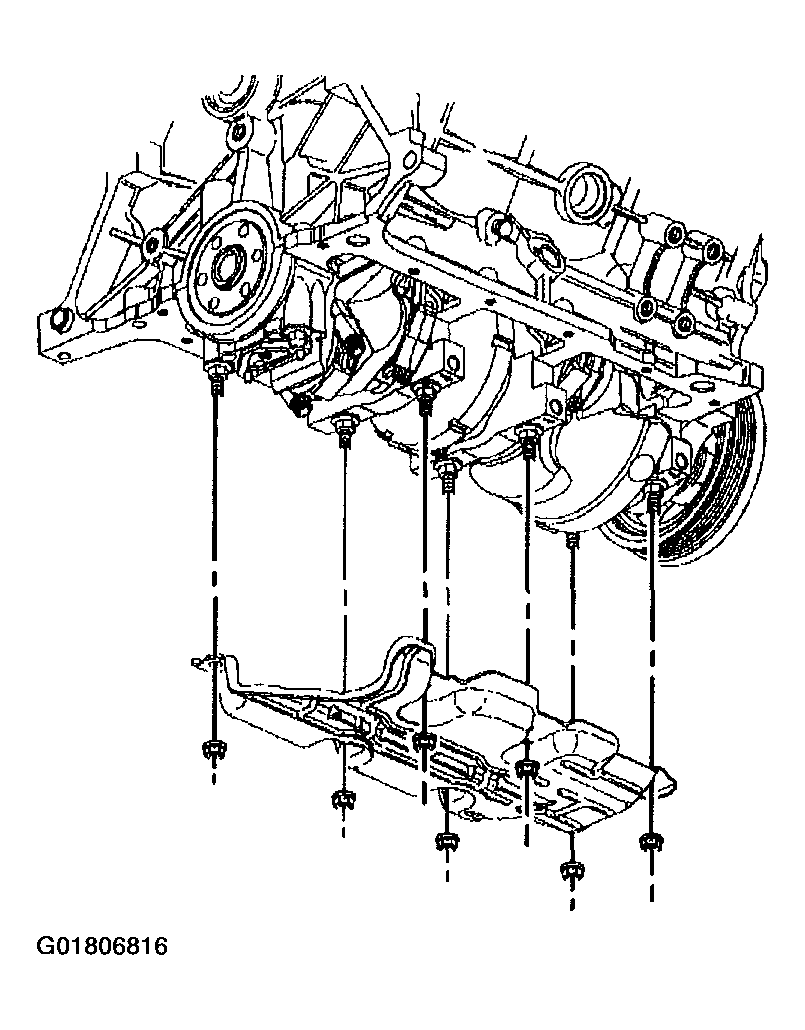

    Fig 1: Crankshaft Oil Deflector
    G01806816Courtesy of GENERAL MOTORS CORP.
