Removal Procedure

  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer - Replacement .
  2. Use a suitable tool in order to pry out the crankshaft front oil seal. Refer to the instructions supplied with the replacement part.

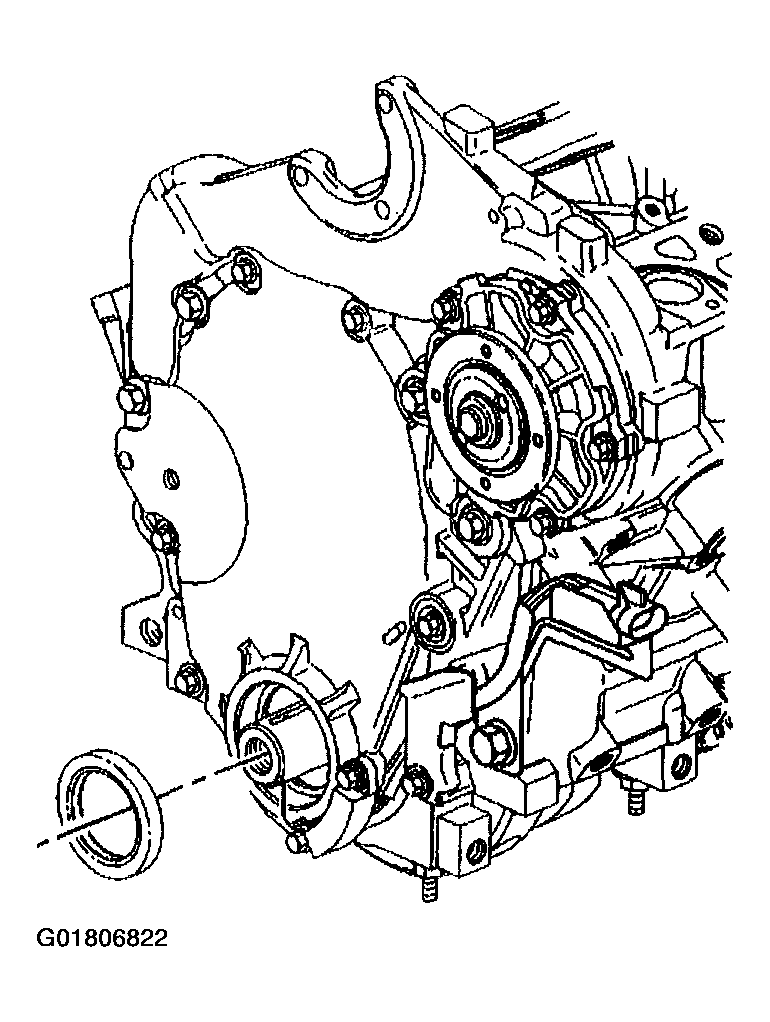

    3. Fig 1: Crankshaft Front Oil Seal
    G01806822Courtesy of GENERAL MOTORS CORP.
  3. Inspect the crankshaft, the crankshaft balancer and the engine front cover for wear and/or damage. Replace or repair the crankshaft, the crankshaft balancer and/or engine front cover as necessary.
