Installation Procedure

  1. Lubricate the crankshaft front oil seal with engine oil in order to make installation easier. Install the crankshaft front oil seal using the J 35468  . Make sure that the crankshaft front oil seal lip faces the engine.

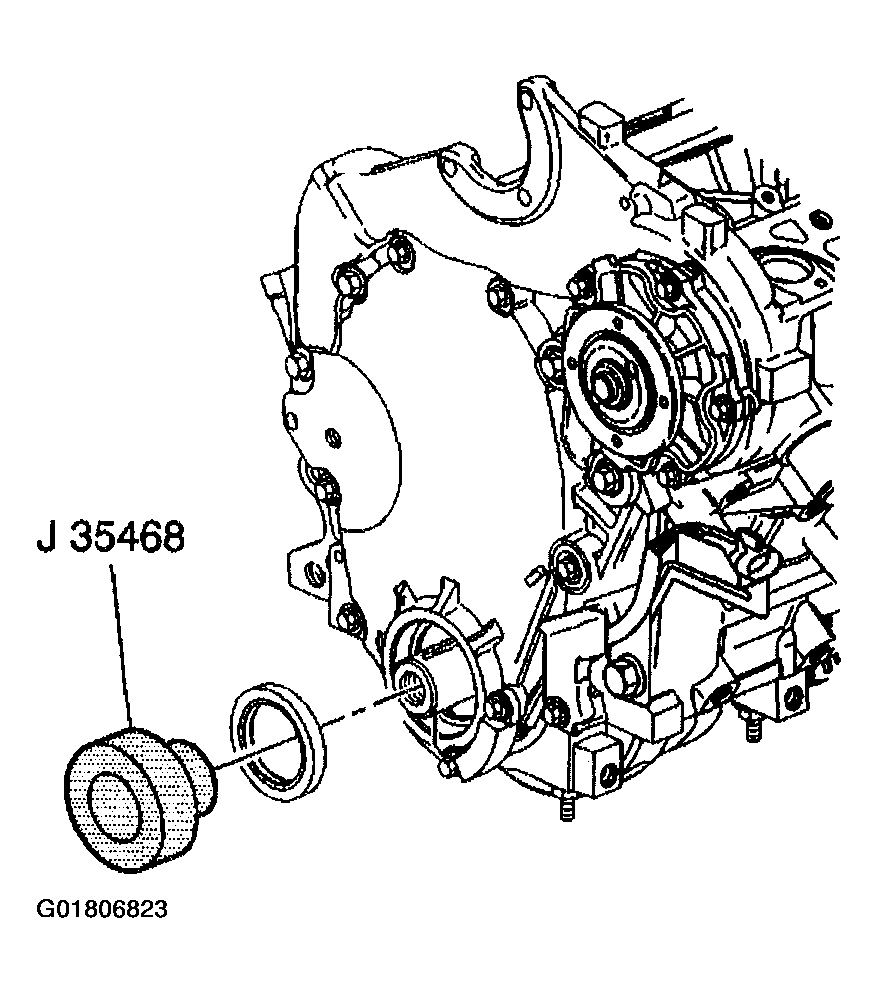

    Fig 1: Installing Crankshaft Front Oil Seal
    G01806823Courtesy of GENERAL MOTORS CORP.
  2. Make sure the crankshaft front oil seal is installed flush to the engine front cover (1).
    3. Fig 2: Crankshaft Front Oil Seal Installed Position
    G01806824Courtesy of GENERAL MOTORS CORP.
  3. Install the crankshaft balancer.
  4. Inspect for leaks.
