Removal Procedure

NOTE: The inertial weight section of the crankshaft balancer is assembled to the hub with a rubber type material. The correct installation procedures (with the proper tool) must be followed or movement of the inertial weight section of the hub will destroy the tuning of the crankshaft balancer.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Raise and support the vehicle.
  3. Remove the right front tire and wheel.
  4. Remove the right engine splash shield.
  5. Support the frame with jackstands.
  6. Loosen the left side and remove the right side frame bolts.
  7. Use the jackstands to lower the right side of the frame.
  8. Remove the torque converter covers.
  9. Install the J 37096  to prevent the flywheel from rotating.
  10. Remove the crankshaft balancer bolt and the washer.

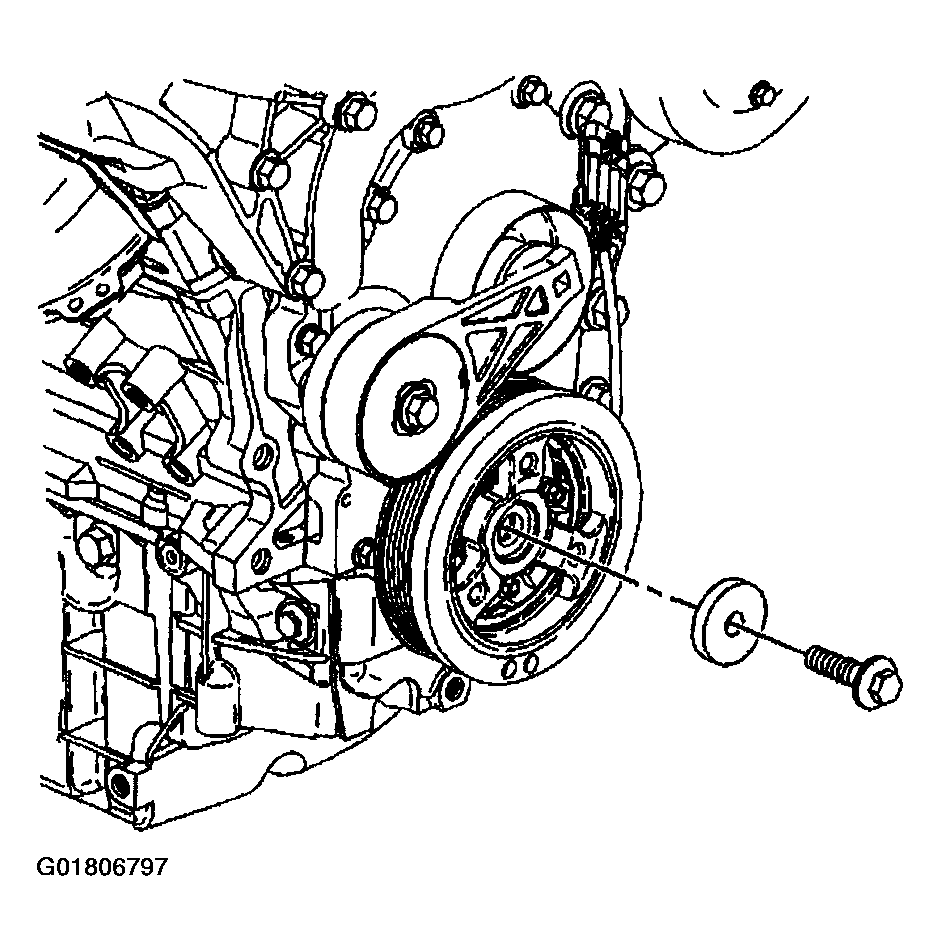

    11. Fig 1: Crankshaft Balancer Bolt & Washer
    G01806797Courtesy of GENERAL MOTORS CORP.
  11. Use the J 24420-C  to remove the crankshaft balancer.

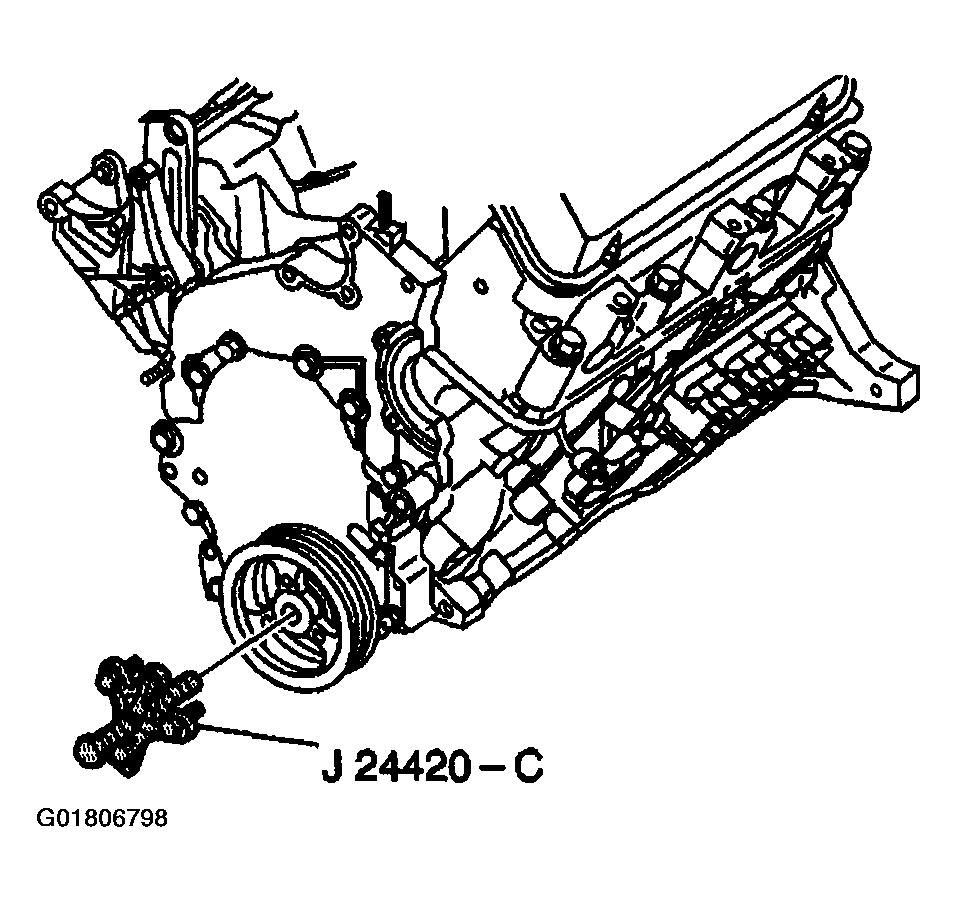

    Fig 2: Crankshaft Balancer Remover
    G01806798Courtesy of GENERAL MOTORS CORP.
