Installation Procedure

  1. Apply sealant GM P/N 12345739, (Canadian P/N 10953472) or equivalent to the keyway of the balancer.
  2. Use the J 29113  to install the crankshaft balancer.
  3. Remove the J 29113  from the crankshaft balancer.
  4. Install the J 37096  to prevent the flywheel from rotating.

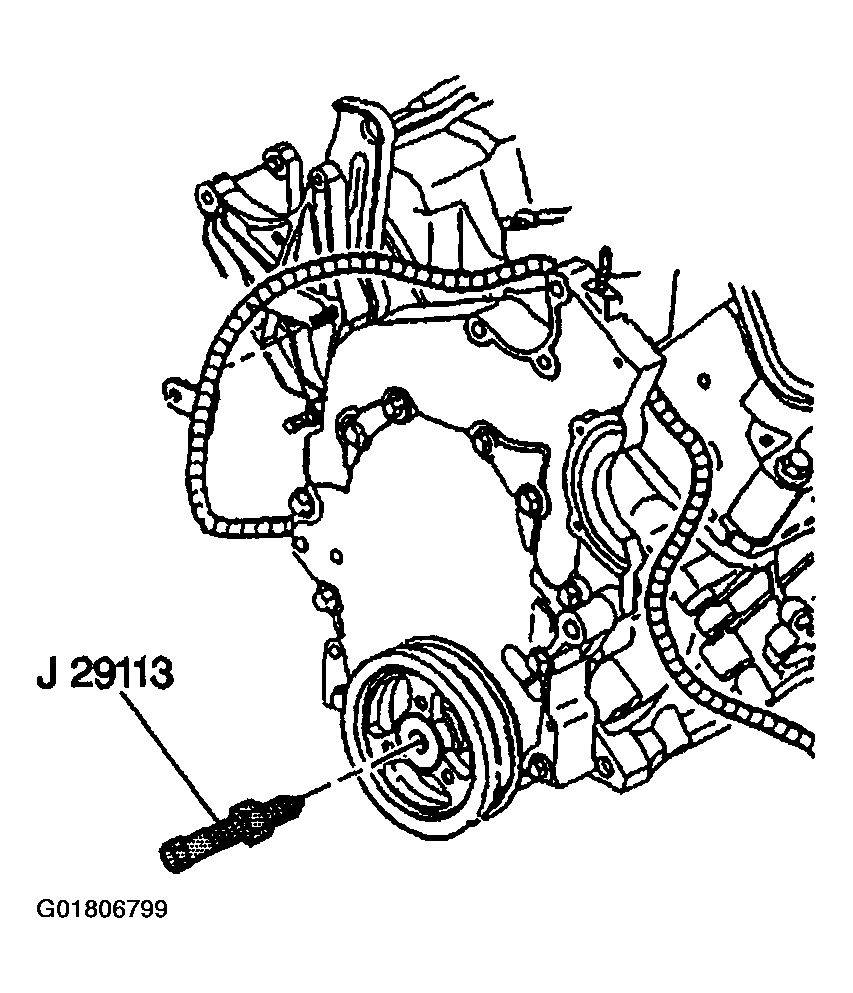

    Fig 1: Crankshaft Balancer Installer
    G01806799Courtesy of GENERAL MOTORS CORP.
  5. Install the crankshaft balancer washer and the bolt. Tighten the bolt to 103 N.m (76 ft lbs).
  6. Remove the J 37096  from the flywheel.
  7. Install the torque converter covers.
  8. Raise the frame to the original position.
  9. Install the frame bolts.
  10. Remove the jackstands.
  11. Install the right engine splash shield.
  12. Install the right front tire and wheel.
  13. Lower the vehicle.
  14. Install the drive belt. Refer to Drive Belt Replacement .
  15. Perform a CKP system variation learn procedure. Refer to CRANKSHAFT POSITION SENSOR .
