Removal Procedure

  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement .
  2. Remove the camshaft rear bearing hole plug.

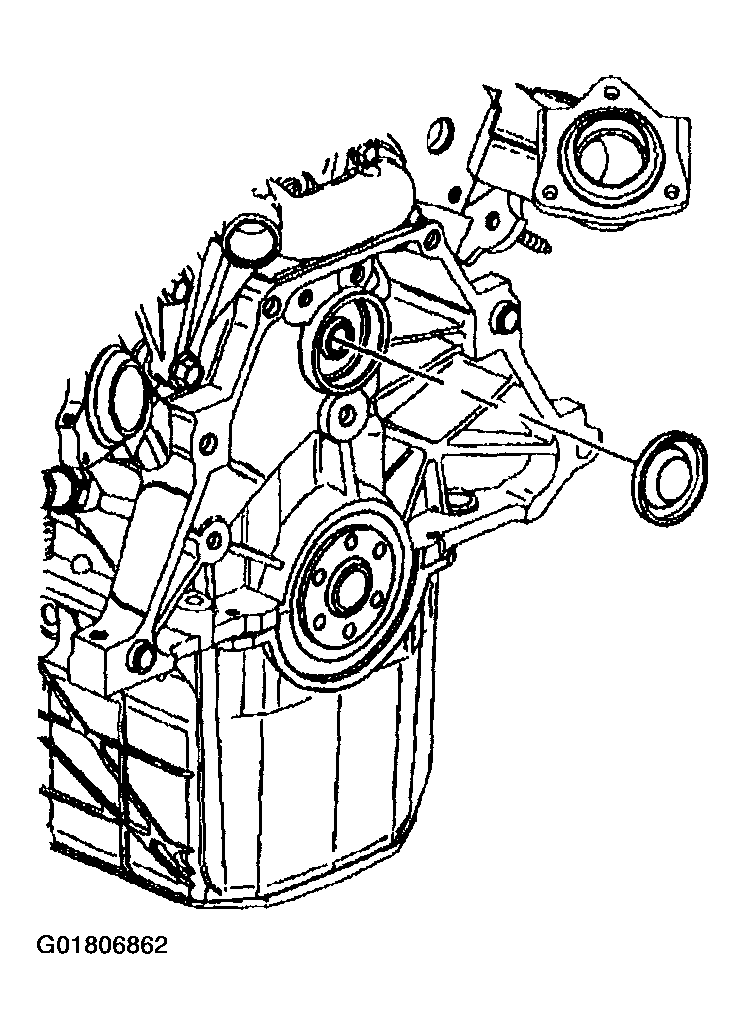

    Fig 1: Camshaft Rear Bearing Hole Plug
    G01806862Courtesy of GENERAL MOTORS CORP.
