Upper Engine Noise, Regardless Of Engine Speed

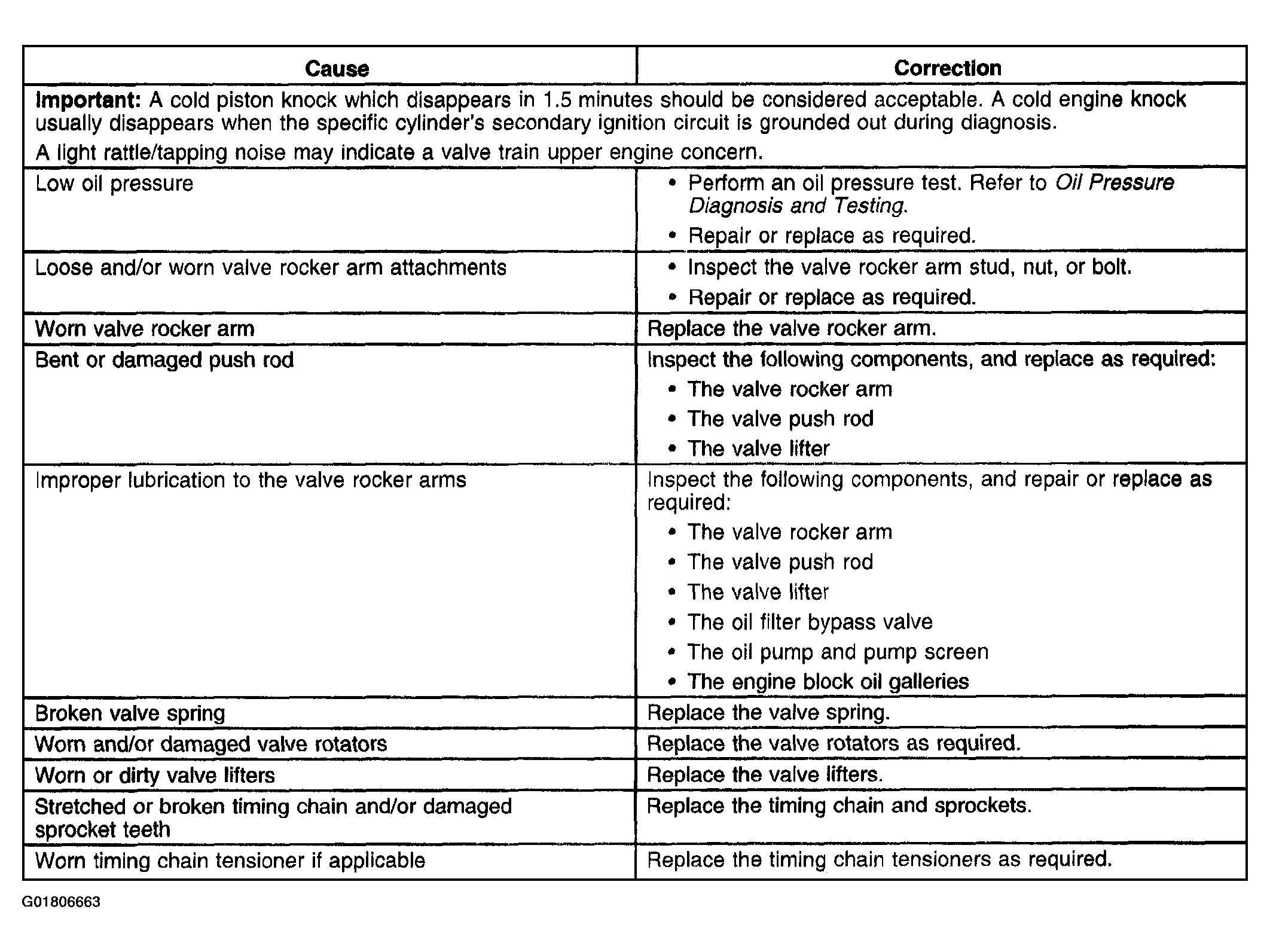

Fig 1: Upper Engine Noise, Regardless Of Engine Speed (1 Of 2)
G01806663Courtesy of GENERAL MOTORS CORP.

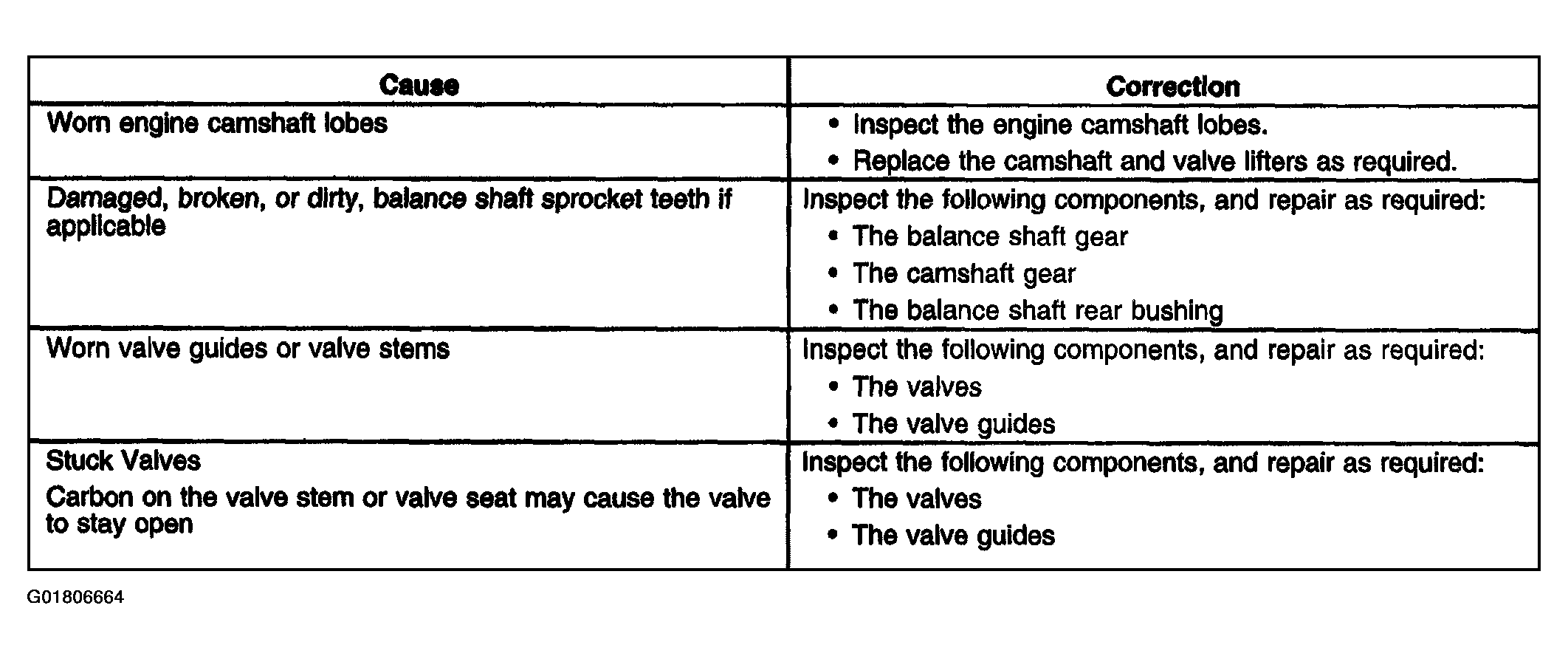

Fig 2: Upper Engine Noise, Regardless Of Engine Speed (2 Of 2)
G01806664Courtesy of GENERAL MOTORS CORP.
