Engine Will Not Crank - Crankshaft Will Not Rotate

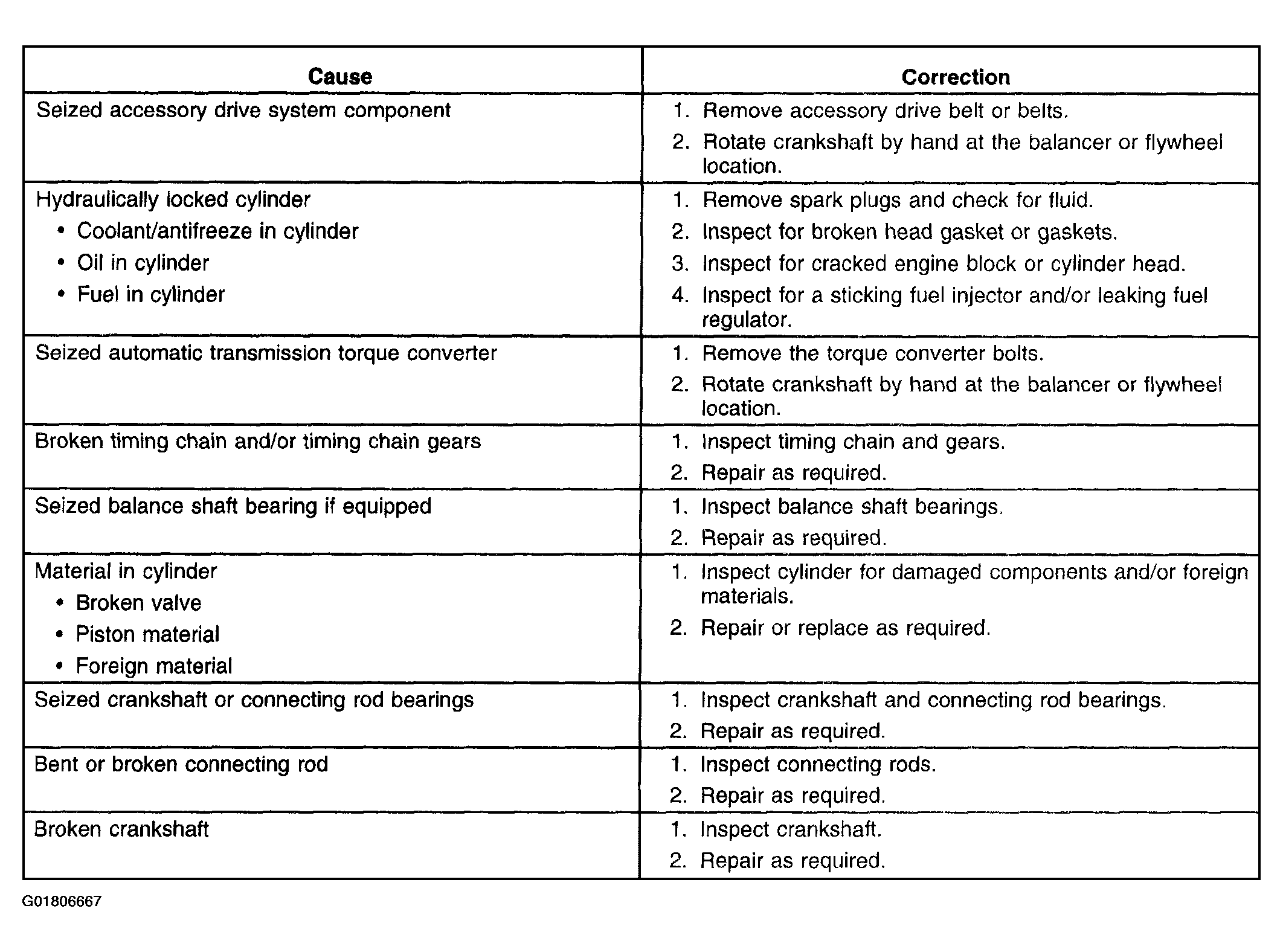

Fig 1: Engine Will Not Crank - Crankshaft Will Not Rotate

G01806667

Courtesy of GENERAL MOTORS CORP.
