Base Engine Misfire With Abnormal Internal Lower Engine Noises

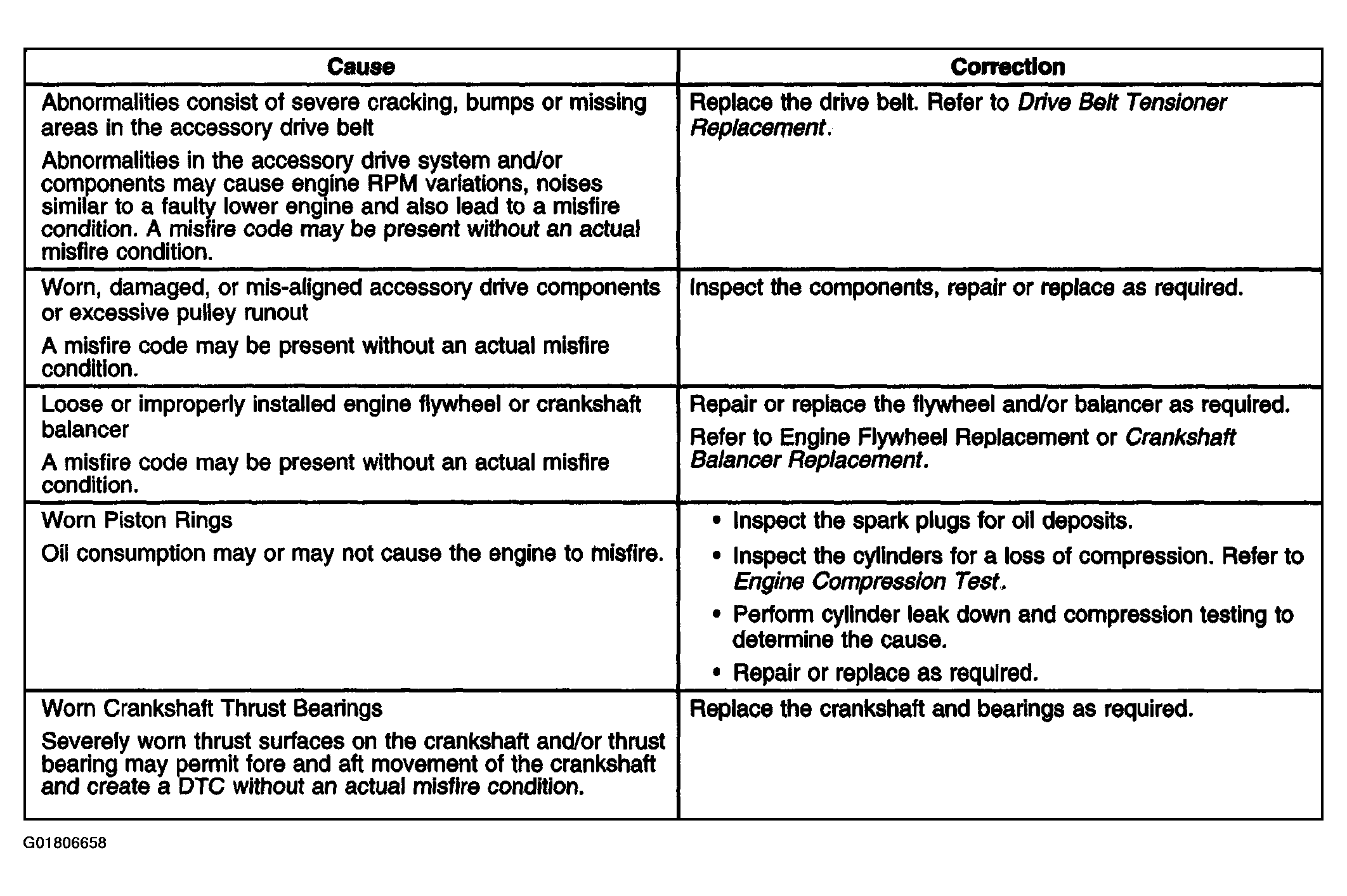

Fig 1: Base Engine Misfire With Abnormal Internal Lower Engine Noises

G01806658

Courtesy of GENERAL MOTORS CORP.
