Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement - Left  or Valve Rocker Arm Cover Replacement - Right .
  2. Remove the lower intake manifold. Refer to Intake Manifold Replacement - Lower .
  3. Remove the valve rocker arms and pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .

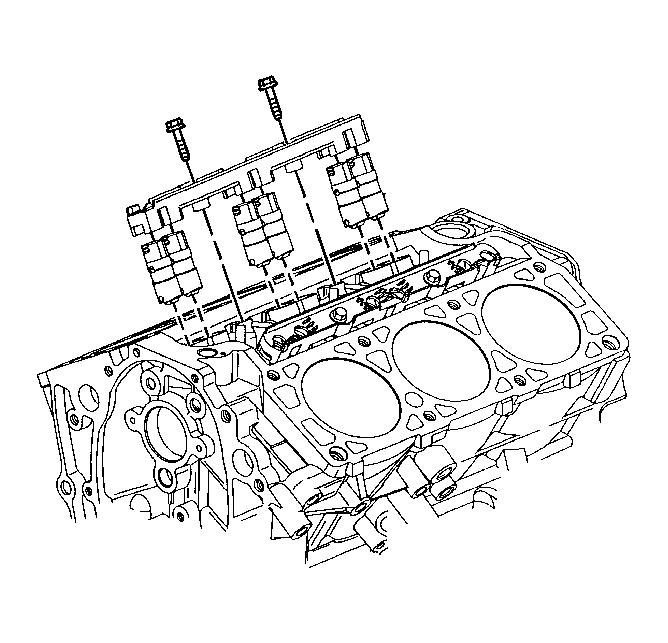

    4. Fig 1: Removing Lifter Guides & Bolts
    GM61836Courtesy of GENERAL MOTORS CORP.
  4. Remove the lifter guide bolts.
  5. Remove the lifter guide.
    6. IMPORTANT: Place the valve train parts in a rack in order to ensure that they are installed in the same location from which they were removed.
  6. Remove the lifters.
