Engine Support Fixture

Tools Required

• J 28467-B  Universal Engine Support Fixture. See Special Tools .
• J 36462-A  Engine Support Adapter Leg Set. See Special Tools .
• J-28467-501  Engine Support Fixture Legs. See Special Tools .

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.

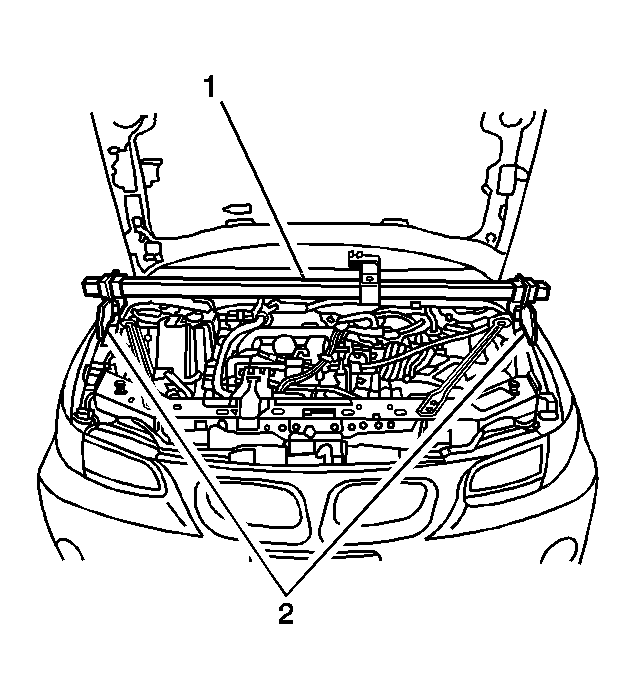

Fig 1: Installing J 28467-B & J 28467-501 To Fender Rails
Courtesy of GENERAL MOTORS CORP.
2. Remove the left engine mount strut and the bracket from the upper radiator support. Refer to Engine Mount Strut Bracket Replacement - Upper Radiator Support .
3. Assemble the J-28467-501  (2) to the J 28467-B  cross bar (1). See Special Tools .
4. Install the J 28467-B  (1) and the J-28467-501  (2) to the fender rails. See Special Tools .

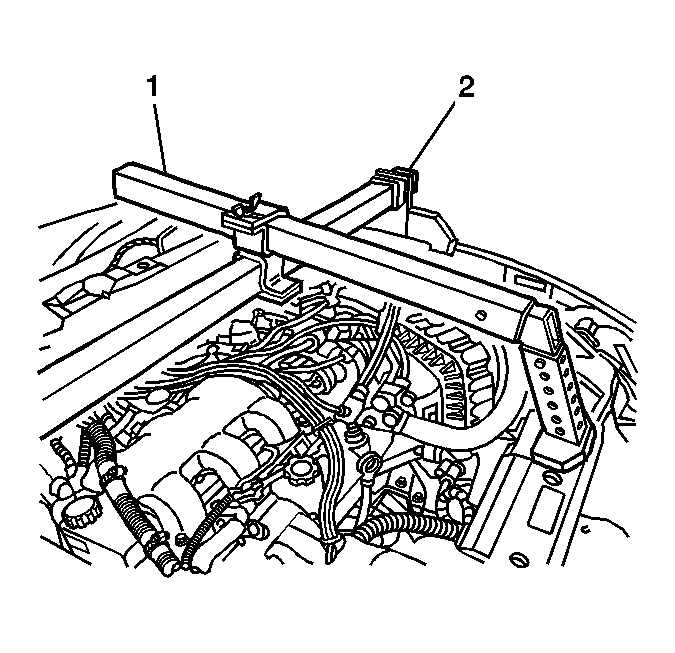

Fig 2: J 36462-A & Cross Bar
Courtesy of GENERAL MOTORS CORP.
5. Install the J 36462-A  (1) to the cross bar (2). See Special Tools .

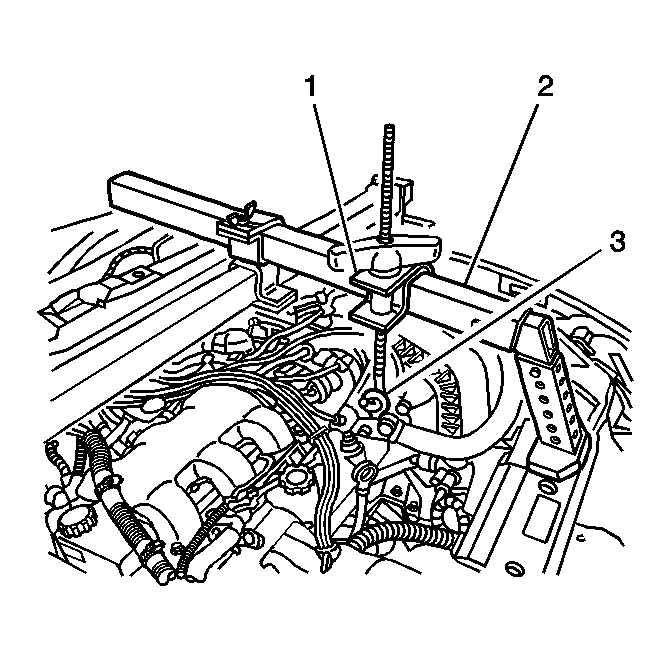

Fig 3: Support Lift Hook, Cross Bar & Right Engine Lift Hook
Courtesy of GENERAL MOTORS CORP.
6. Install the support lift hook (1) to the cross bar (2).
7. Install the support hook (1) to the right engine lift hook (3).
Fig 4: Support Hook, J 36462-A & Left Engine Lift Hook
Courtesy of GENERAL MOTORS CORP.
8. Install the support hook (1) to the J 36462-A  (2). See Special Tools .
9. Install the support hook (1) to the left engine lift hook (3).

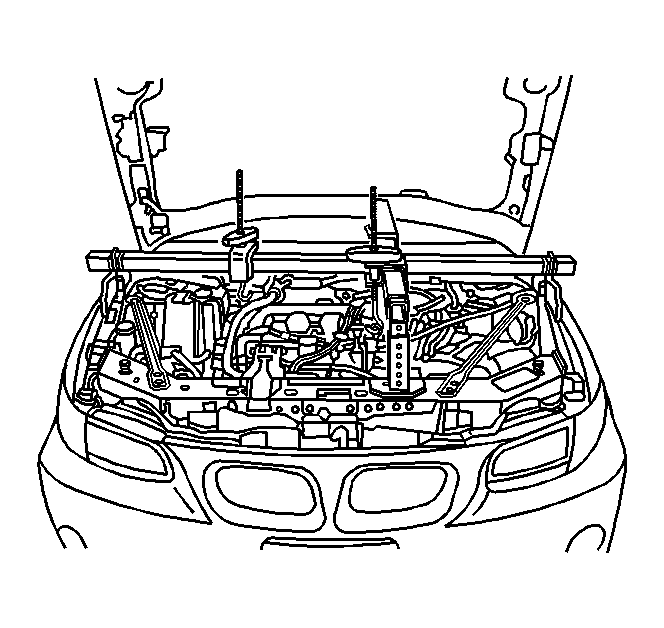

Fig 5: Raising Engine
Courtesy of GENERAL MOTORS CORP.
10. Raise the engine to release the pressure off of the engine mounts.
