Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

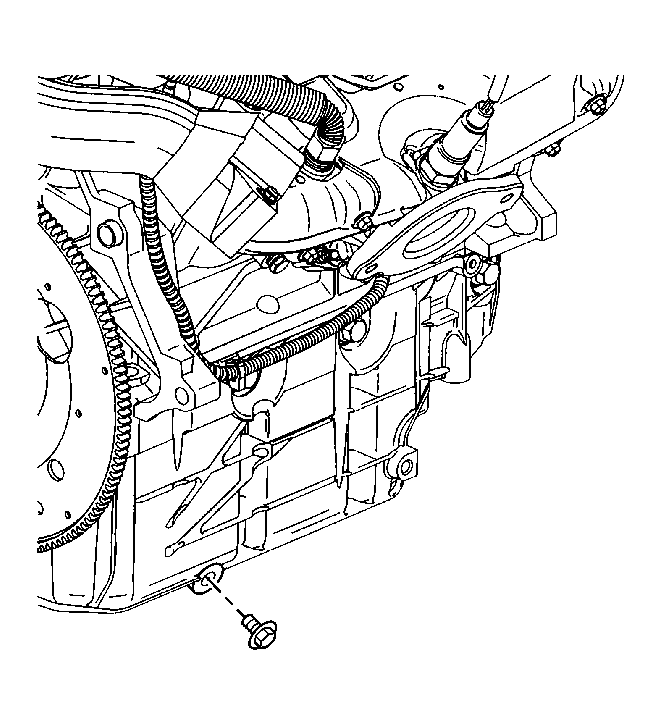

    Fig 1: View Of Engine Oil Drain Plug
    GM190542Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the engine oil drain plug in order to drain the engine oil.
    3. Fig 2: Oil Level Sensor Electrical Connector
    GM54406Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the oil level sensor electrical connector.
  4. Remove the bolt from the oil level sensor.
  5. Remove the oil level sensor.
