Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Engine Mount Strut, Bolt & Nut
    GM61848Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount strut.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.

    Tighten:  Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

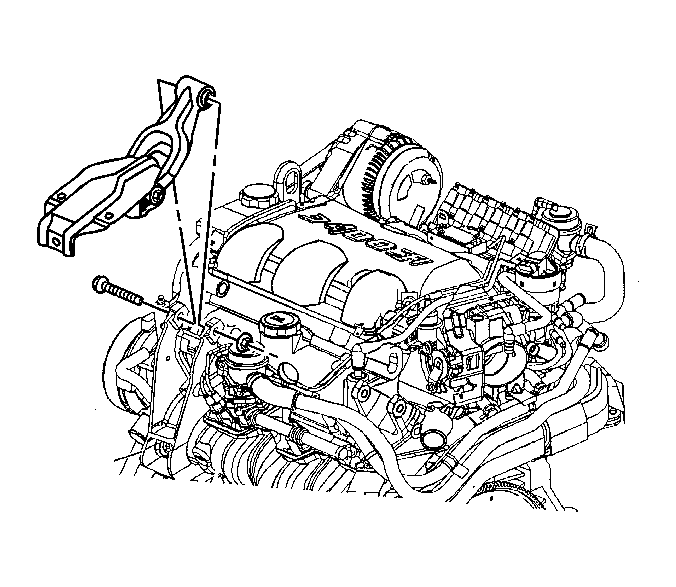

    3. Fig 2: Engine Mount Strut - Right
    GM462746Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the engine mount strut at the right engine mount strut bracket on the engine.

    Tighten:  Tighten the engine mount strut nut to 48 N.m (35 lb ft).
