Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Engine Mount Strut, Bolt & Nut
    GM61848Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine mount strut from the engine mount strut bracket at the upper radiator support. Refer to Engine Mount Strut Replacement - Right  or Engine Mount Strut Replacement - Left .

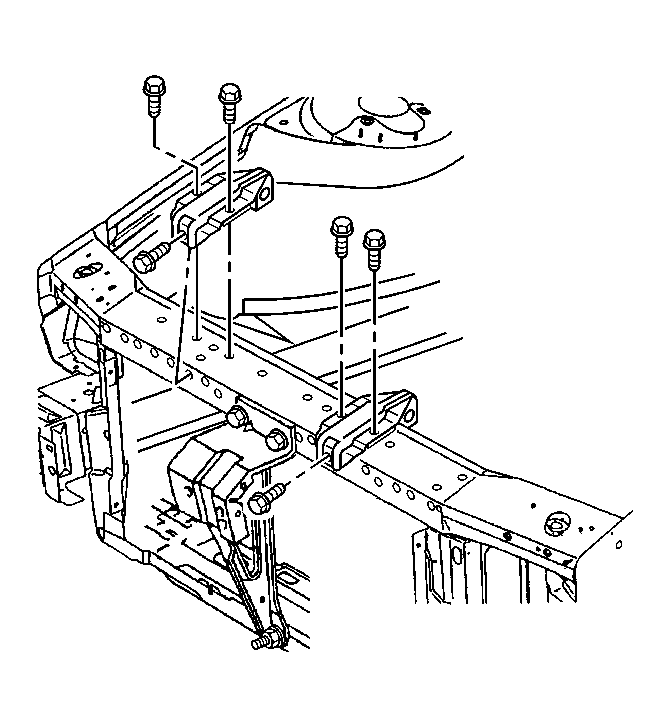

    2. Fig 2: Removing Engine Mount Strut Bracket From Upper Radiator Support
    GM190488Courtesy of GENERAL MOTORS CORP.
  2. Remove the horizontal bolt from the engine mount strut bracket.
  3. Remove the vertical bolts from the engine mount strut bracket.
  4. Remove the engine mount strut bracket from the upper radiator support.
