Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Engine Mount Strut Bracket & Bolts - Left
    GM61845Courtesy of GENERAL MOTORS CORP.
  1. Install the left engine mount strut bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine mount strut bracket bolts through the engine mount strut bracket to the cylinder head.

    Tighten:  Tighten the engine mount strut bracket bolts to 70 N.m (52 lb ft).

  3. Install the thermostat housing. Refer to Thermostat Replacement (3.4L) in Engine Cooling.
  4. Install the engine exhaust crossover pipe. Refer to Exhaust Crossover Pipe Replacement (3.4L) in Engine Exhaust.

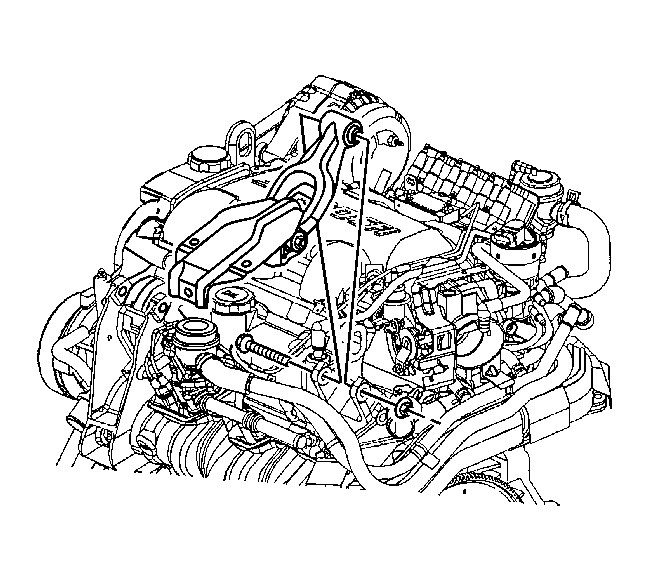

    5. Fig 2: Engine Mount Strut - Left
    GM462754Courtesy of GENERAL MOTORS CORP.
  5. Install the engine mount strut to the left engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left .
