Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

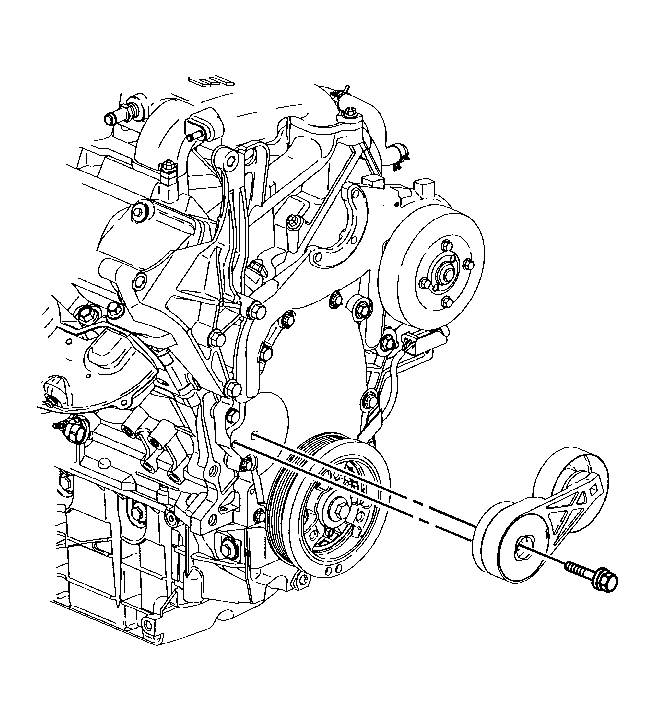

    Fig 1: Drive Belt Tensioner
    GM190498Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt tensioner.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the drive belt tensioner bolt.

    Tighten:  Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to Drive Belt Replacement .
  4. Install the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.
