Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

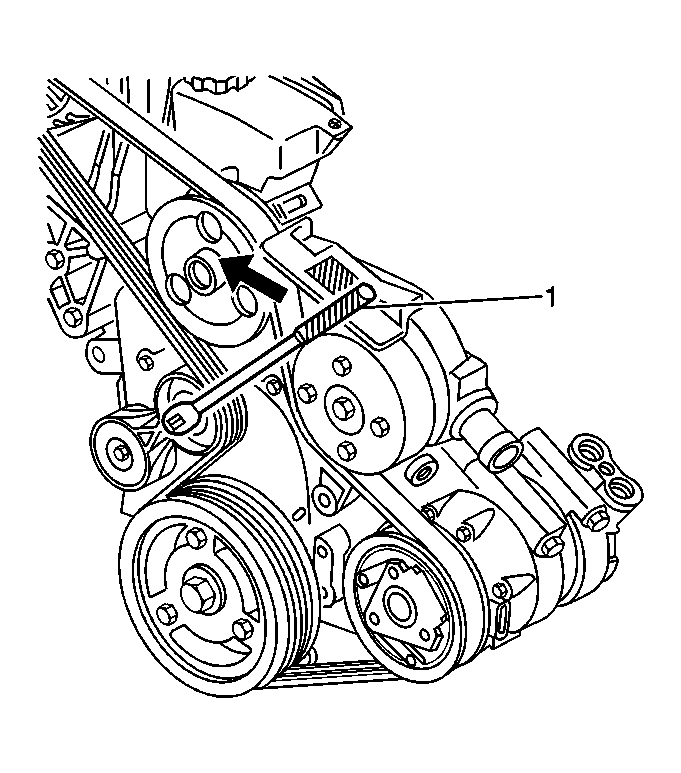

    Fig 1: Removing/Installing Drive Belt Tensioner
    GM262971Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: After the new drive belt is installed, make sure that the mark on the drive belt tensioner is in range, as indicated on the tensioner housing.
  1. Using a 3/8 drive breaker bar (1) rotate the drive belt tensioner in order to release the pressure on the drive belt.
    2. Fig 2: Drive Belt Routing
    GM63635Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt.
