Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Installing Drive Belt
    GM63635Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt to all of the pulleys except the generator pulley.
  2. Rotate the drive belt tensioner in order to install the drive belt over the generator pulley.

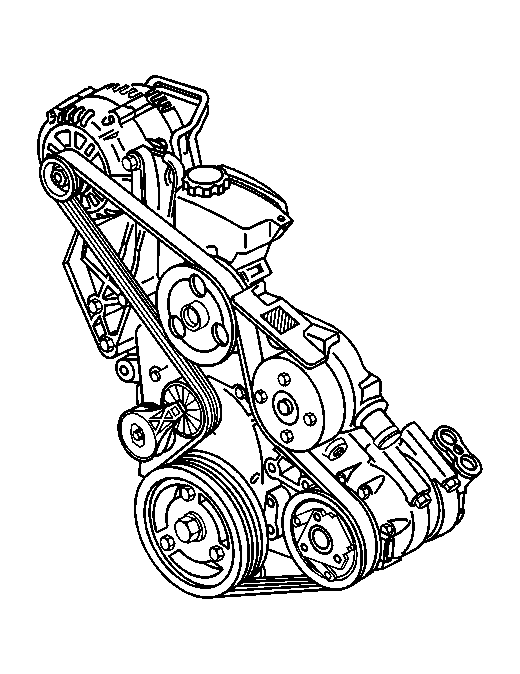

    3. Fig 2: Drive Belt Routing
    GM302535Courtesy of GENERAL MOTORS CORP.
  3. Make sure that the drive belt is properly routed.
    4. IMPORTANT: Make sure the mark on the drive belt tensioner is in range, as indicated on the tensioner housing.
  4. Make sure the drive belt tensioner is operating properly.
