Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .

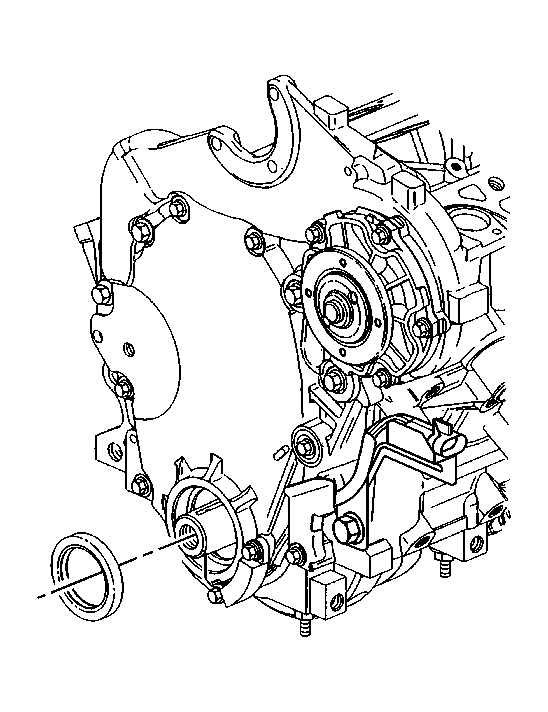

    2. Fig 1: Crankshaft Front Oil Seal
    GM190532Courtesy of GENERAL MOTORS CORP.
  2. Pry out the crankshaft front oil seal with a flat-bladed tool such as a large screwdriver.
  3. Inspect the crankshaft, the crankshaft balancer and the engine front cover for wear and/or damage. Replace or repair the crankshaft, the crankshaft balancer and/or engine front cover as necessary.
