Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Ensure the crankshaft front oil seal lip faces the engine.

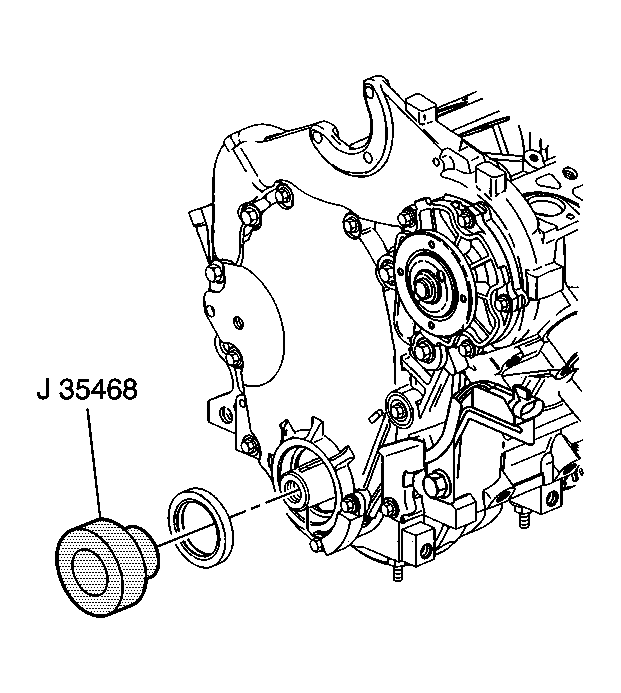

    Fig 1: Installing Crankshaft Front Oil Seal Using J 35468
    GM190533Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the crankshaft front oil seal with engine oil in order to make installation easier.
  2. Install the crankshaft front oil seal using the J 35468  . See Special Tools .
    3. Fig 2: Correct Installation Position Of Oil Seal To Engine Front Cover
    GM190534Courtesy of GENERAL MOTORS CORP.
  3. Ensure the crankshaft front oil seal is installed flush to the engine front cover (1).
  4. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  5. Inspect for leaks.
