Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Installing Crankshaft Balancer Using J 29113
    GM96019Courtesy of GENERAL MOTORS CORP.
  1. Apply sealant GM P/N 12346141 (Canadian P/N 10953433) or equivalent to the keyway of the balancer.
  2. Use the J 29113  to install the crankshaft balancer. See Special Tools .
  3. Remove the J 29113  from the crankshaft balancer. See Special Tools .
  4. Install the J 37096  to prevent the flywheel from rotating. See Special Tools .

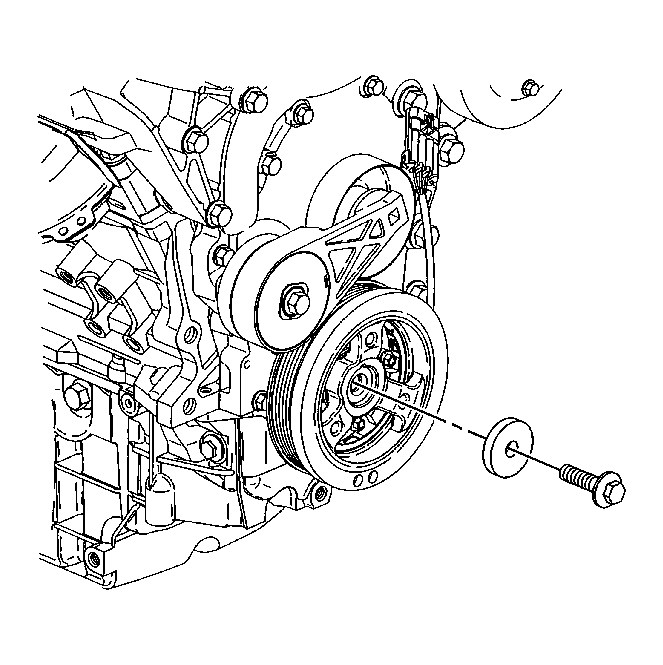

    5. Fig 2: Crankshaft Balancer Bolt & Washer
    GM190528Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the crankshaft balancer washer and the bolt.

    Tighten:  Tighten the bolt to 70 N.m (52 lb ft) + 72 degrees.

  6. Remove the J 37096  from the flywheel. See Special Tools .
  7. Install the torque converter covers.
  8. Raise the frame to the original position.
  9. Install the frame bolts. Refer to Frame Replacement in Frame and Underbody.
  10. Remove the jackstands.
  11. Install the right engine splash shield. Refer to Splash Shield Replacement - Engine - Right in Body Front End.
  12. Install the right front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  13. Lower the vehicle.
  14. Install the drive belt. Refer to Drive Belt Replacement .
  15. Perform a CKP system variation learn procedure. Refer to CKP SYSTEM VARIATION LEARN PROCEDURE .
