Engine Flywheel Installation

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

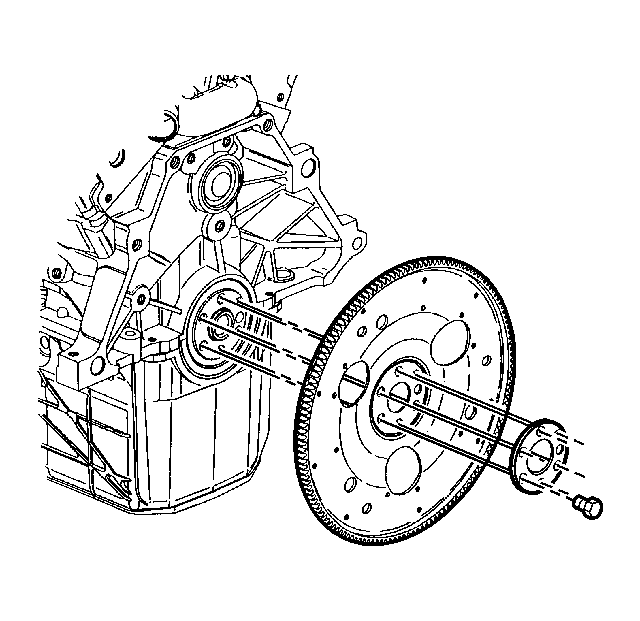

    Fig 1: Engine Flywheel, Retainer & Bolts
    GM187085Courtesy of GENERAL MOTORS CORP.
  1. Install the flywheel.
  2. Install the flywheel retainer.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the flywheel bolts.

    Tighten:  Tighten the flywheel bolts to 71 N.m (52 lb ft).
