Disassembled Views

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

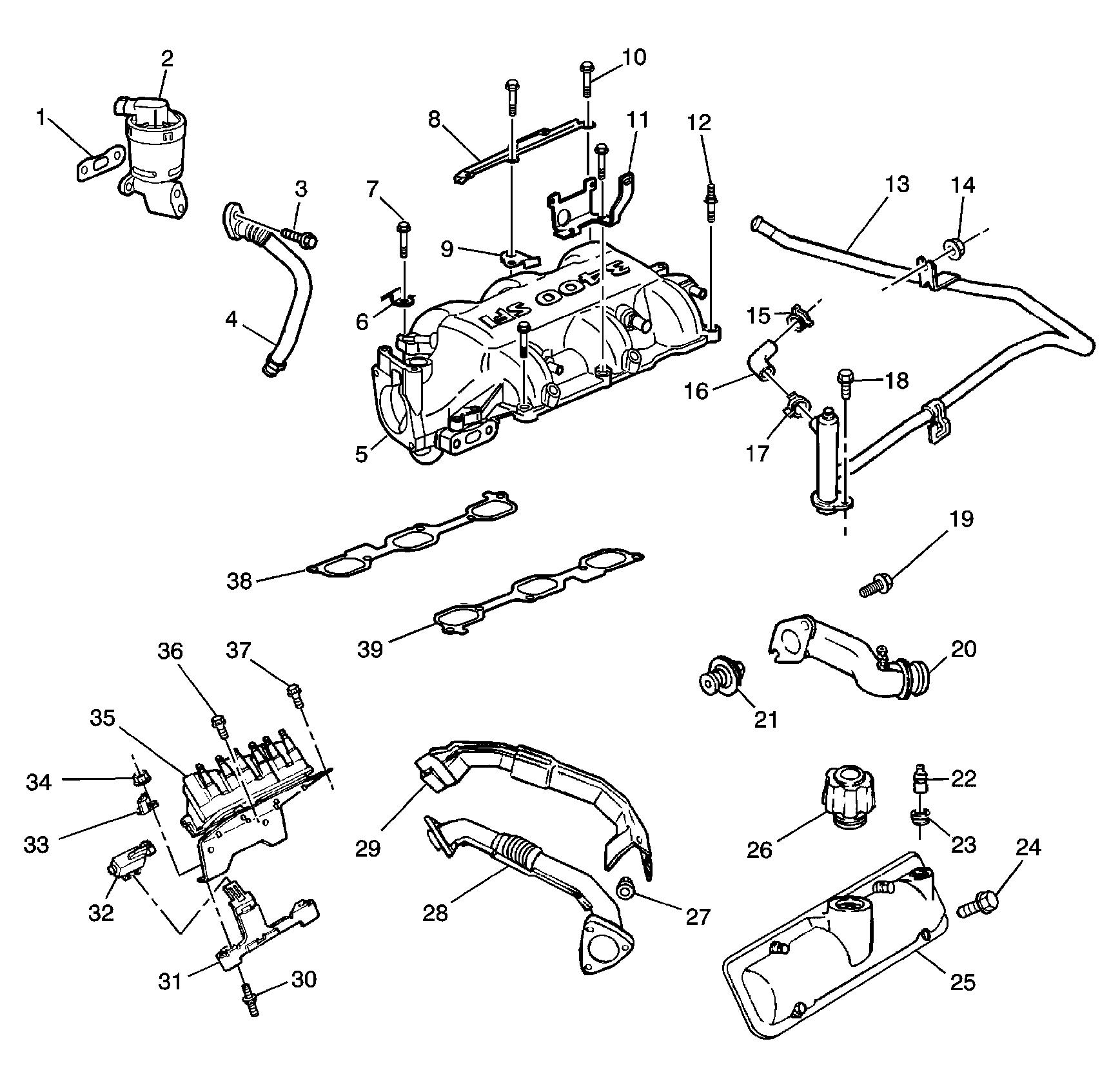

Fig 1: Upper Intake Manifold & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	EGR Valve Gasket
2	EGR Valve Assembly
3	EGR Valve Assembly Bolt
4	EGR Valve Pipe Assembly
5	Upper Intake Manifold
6	Spark Plug Support Bracket
7	Spark Plug Support Bracket Bolt
8	Wire Harness Bracket
9	Radiator Surge Tank Bracket
10	Upper Intake Manifold Bolt
11	Map Sensor Bracket
12	Upper Intake Manifold Bolt
13	Thermostat Bypass Pipe
14	Thermostat Bypass Pipe Nut
15	Thermostat Bypass Hose Clamp
16	Thermostat Bypass Hose
17	Thermostat Bypass Hose Clamp
18	Thermostat Bypass Pipe Screw
19	Coolant Outlet Bolt
20	Coolant Outlet Assembly
21	Thermostat
22	PCV Valve
23	PCV Valve Grommet
24	Rocker Arm Cover Bolt
25	Rocker Arm Cover
26	Oil Fill Cap
27	Exhaust Crossover Nut
28	Exhaust Crossover Pipe
29	Exhaust Crossover Upper Heat Shield
30	EVAP Canister Purge Valve Bracket Stud
31	EVAP Canister Purge Valve Bracket
32	EVAP Canister Purge Valve
33	Spark Plug Wire Support
34	Electronic Ignition System Nut
35	Electronic Ignition System
36	Electronic Ignition System Bolt
37	Electronic Ignition System Bolt
38	Upper Intake Manifold Gasket
39	Upper Intake Manifold Gasket

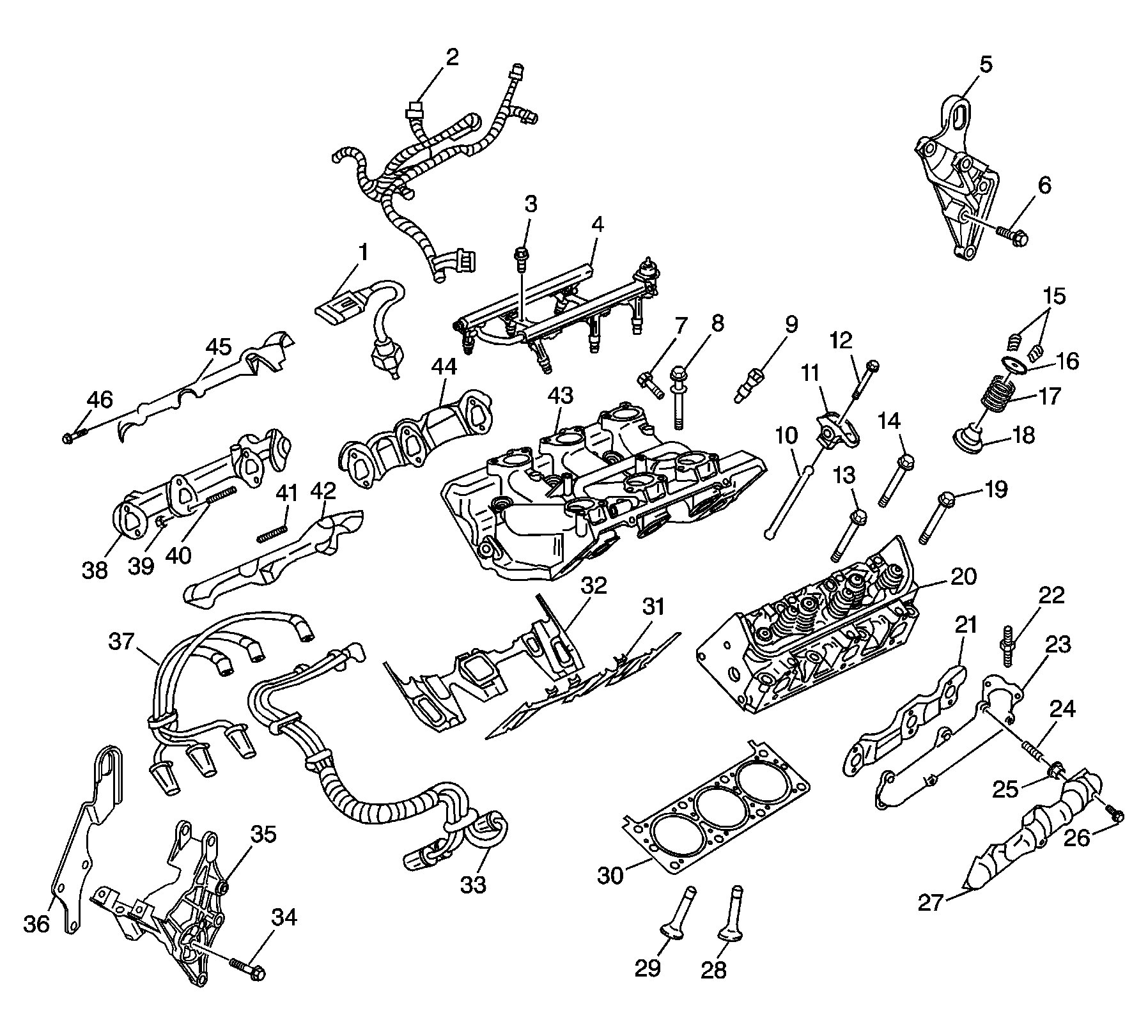

Fig 2: Lower Intake Manifold, Cylinder Head & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor
2	Fuel Injector Wiring Harness
3	Fuel Injector Rail Assembly Bolt
4	Fuel Injector Rail Assembly
5	Engine Lift Bracket
6	Engine Lift Bracket Bolt
7	Lower Intake Manifold Diagonal Bolt
8	Lower Intake Manifold Vertical Bolt
9	Engine Coolant Temperature Sensor
10	Push Rod
11	Valve Rocker Arm
12	Valve Rocker Arm Bolt
13	Cylinder Head Bolt
14	Cylinder Head Bolt
15	Valve Spring Cap Key
16	Valve Spring Cap
17	Valve Spring
18	Valve Stem Oil Stem Seal/Valve Spring Seat
19	Cylinder Head Bolt
20	Cylinder Head
21	Left Exhaust Manifold Gasket
22	Exhaust Crossover Stud
23	Left Exhaust Manifold
24	Left Exhaust Manifold Stud
25	Left Exhaust Manifold Nut
26	Left Exhaust Manifold Heat Shield Bolt
27	Left Exhaust Manifold Heat Shield
28	Intake Valve
29	Exhaust Valve
30	Cylinder Head Gasket
31	Lower Intake Manifold Gasket
32	Lower Intake Manifold Gasket
33	Left Spark Plug Wires
34	Generator Mount Bracket Bolt
35	Generator Mount Bracket
36	Front Engine Lift Bracket
37	Right Spark Plug Wires
38	Right Exhaust Manifold
39	Right Exhaust Manifold Nut
40	Right Exhaust Manifold Stud
41	Right Exhaust Manifold Lower Heat Shield Bolt
42	Right Exhaust Manifold Lower Heat Shield
43	Lower Intake Manifold
44	Right Exhaust Manifold Gasket
45	Right Exhaust Manifold Upper Heat Shield
46	Right Exhaust Manifold Upper Heat Shield Bolt

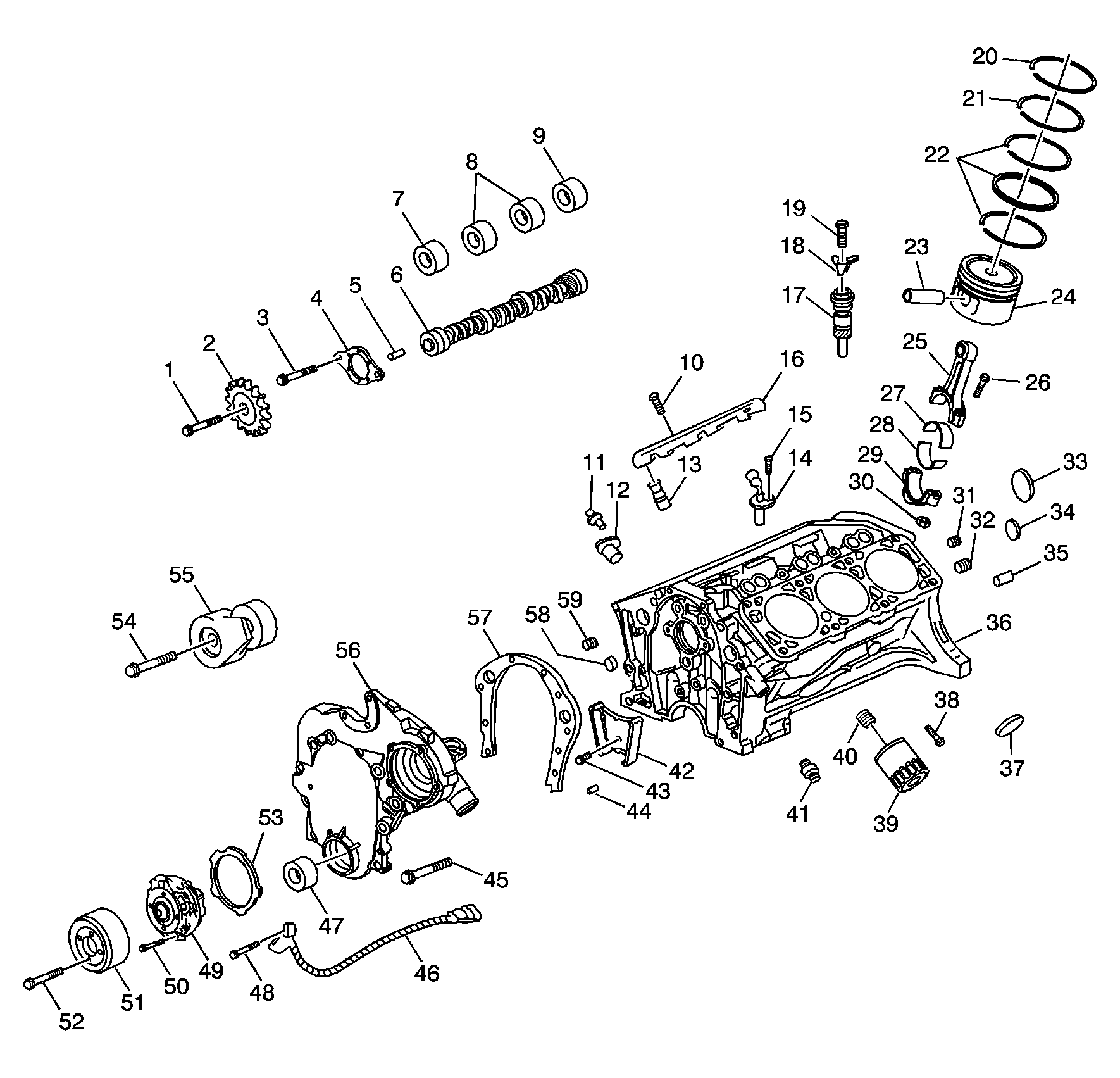

Fig 3: Engine Block & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Sprocket Bolt
2	Camshaft Sprocket
3	Camshaft Thrust Plate Screw
4	Camshaft Thrust Plate
5	Camshaft Sprocket Alignment Pin
6	Camshaft
7	Front Camshaft Bearing
8	Intermediate Camshaft Bearings
9	Rear Camshaft Bearing
10	Valve Lifter Guide Bolt
11	Crankshaft Position Sensor Side-of-Block Stud
12	Crankshaft Position Sensor Side-of-Block
13	Valve Lifter
14	Camshaft Position Sensor
15	Camshaft Position Sensor Bolt
16	Valve Lifter Guide
17	Oil Pump Drive Assembly
18	Oil Pump Drive Clamp
19	Oil Pump Drive Clamp Bolt
20	Upper Piston Compression Ring
21	Lower Piston Compression Ring
22	Oil Control Ring Assembly
23	Piston Pin
24	Piston
25	Connecting Rod
26	Connecting Rod Bolt
27	Upper Connecting Rod Bearing Insert
28	Lower Connecting Rod Bearing Insert
29	Connecting Rod Bearing Cap
30	Connecting Rod Bearing Cap Nut
31	Oil Gallery 1/8 inch Plug
32	Oil Gallery 1/4 inch Plug
33	Camshaft Rear Cover
34	Coolant Jacket Press-in-Plug
35	Transmission Dowel Pin
36	Engine Block
37	Coolant Jacket Press-in-Plug
38	Coolant Drain Plug
39	Oil Filter
40	Oil Filter Fitting
41	Knock Sensor
42	Timing Chain Dampener
43	Timing Chain Dampener Bolt
44	Engine Front Cover Alignment Pin
45	Engine Front Cover Bolt
46	Crankshaft Position Sensor
47	Crankshaft Front Oil Seal
48	Crankshaft Position Sensor Bolt
49	Water Pump
50	Water Pump Bolt
51	Water Pump Pulley
52	Water Pump Pulley Bolt
53	Water Pump Gasket
54	Drive Belt Tensioner Bolt
55	Drive Belt Tensioner
56	Engine Front Cover
57	Engine Front Cover Gasket
58	Oil Gallery Press-in-Plug
59	Oil Gallery 1/4 inch Plug

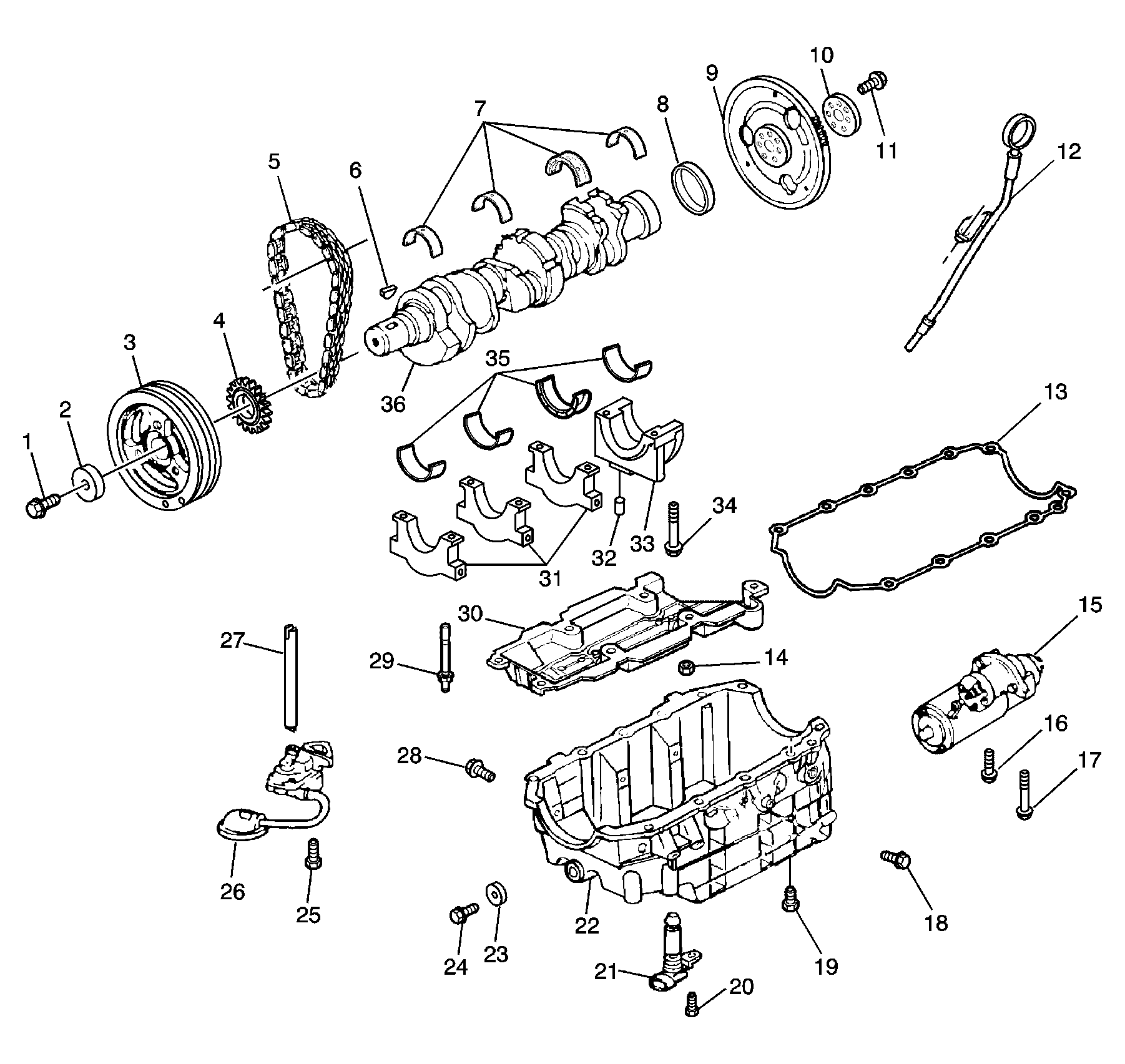

Fig 4: Crankshaft & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Balancer Bolt
2	Crankshaft Balancer Washer
3	Crankshaft Balancer
4	Crankshaft Sprocket
5	Timing Chain
6	Crankshaft Balancer Key
7	Crankshaft Upper Main Bearing Insert
8	Rear Crankshaft Oil Seal
9	Engine Flywheel
10	Engine Flywheel Retainer
11	Engine Flywheel Bolt
12	Oil Level Indicator Assembly
13	Oil Pan Gasket
14	Crankshaft Oil Deflector Nut
15	Starter Motor
16	Starter Motor Short Bolt
17	Starter Motor Long Bolt
18	Oil Pan Side Bolt
19	Oil Pan Bolt
20	Low Oil Level Indicator Bolt - if equipped
21	Low Oil Level Indicator - if equipped
22	Oil Pan
23	Oil Pan Drain Plug Washer
24	Oil Pan Drain Plug
25	Oil Pump Bolt
26	Oil Pump
27	Oil Pump Drive Shaft
28	Oil Pan Side Bolt
29	Crankshaft Main Bearing Cap Stud
30	Crankshaft Oil Deflector
31	Crankshaft Main Bearing Cap
32	Oil Pump Alignment Pin
33	Crankshaft Rear Main Bearing Cap
34	Crankshaft Main Bearing Bolt
35	Crankshaft Lower Main Bearing Insert
36	Crankshaft
