Test Description

The number below refers to the step number on the diagnostic table.

  1. 2)  - Determines whether the DTC is current.

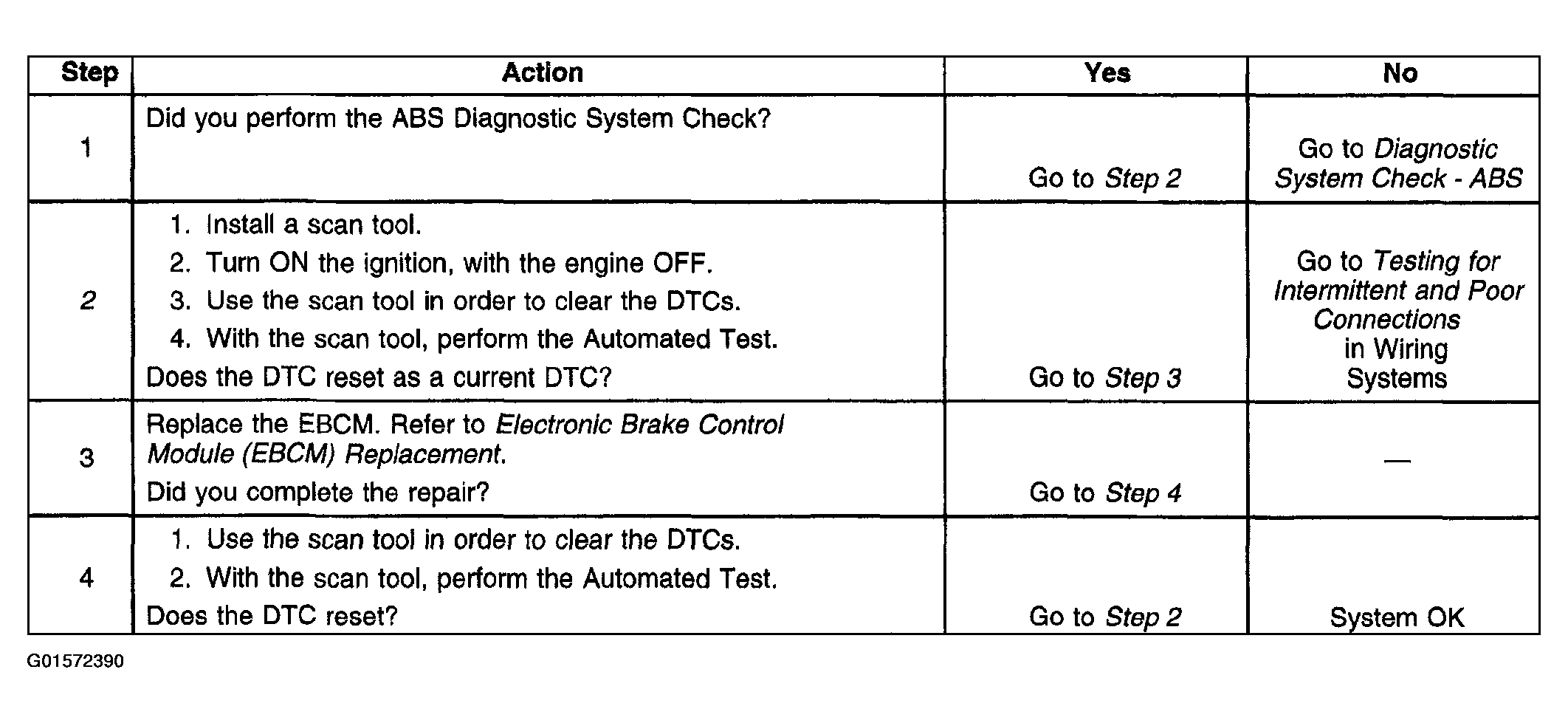

Fig 1: DTC C1261-C1274 Diagnosis
G01572390Courtesy of GENERAL MOTORS CORP.
