Automatic Transmission System Hydraulic Diagrams

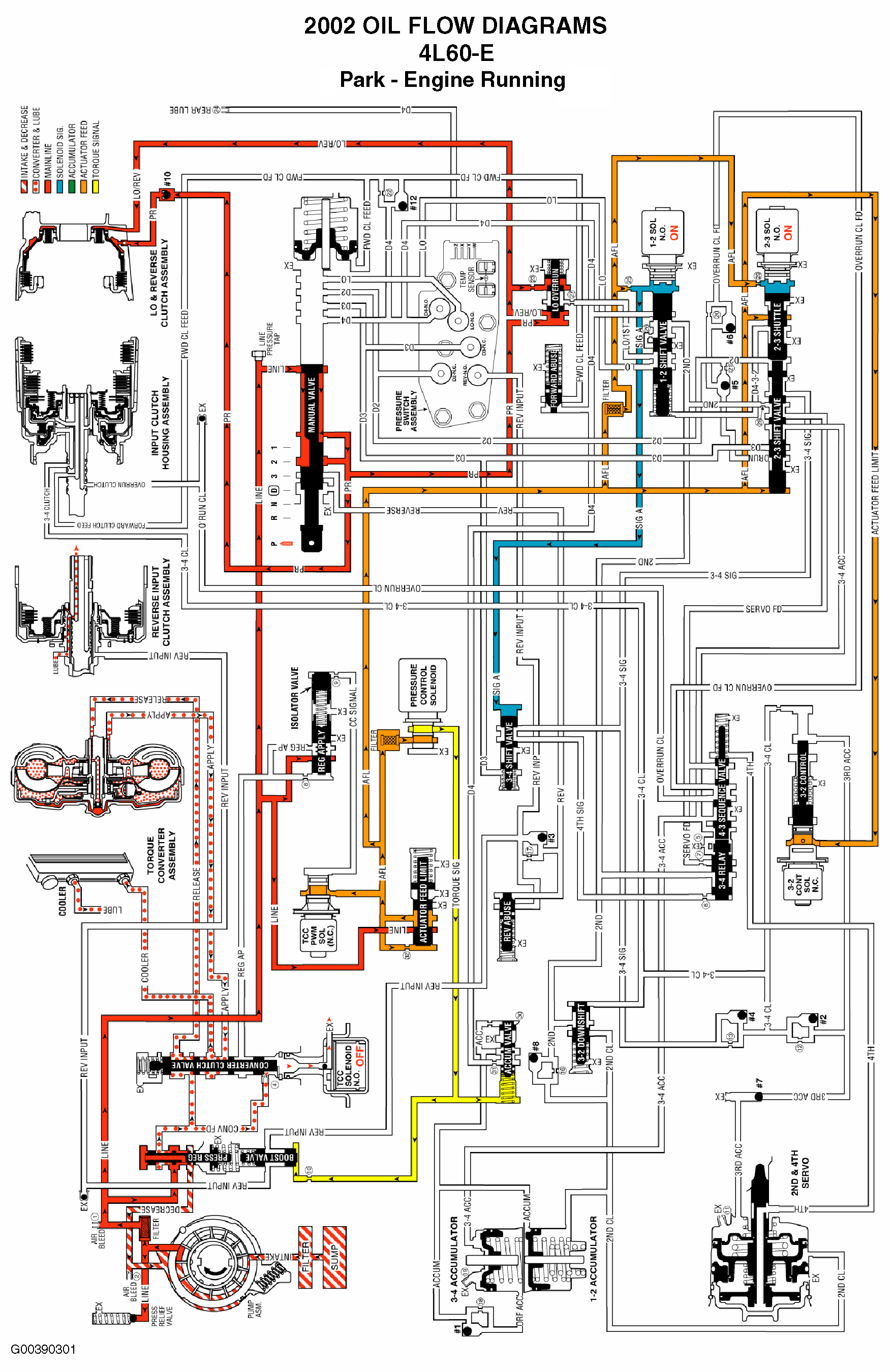

Fig 1: Park - Engine Running (C)

Courtesy of GENERAL MOTORS CORP.

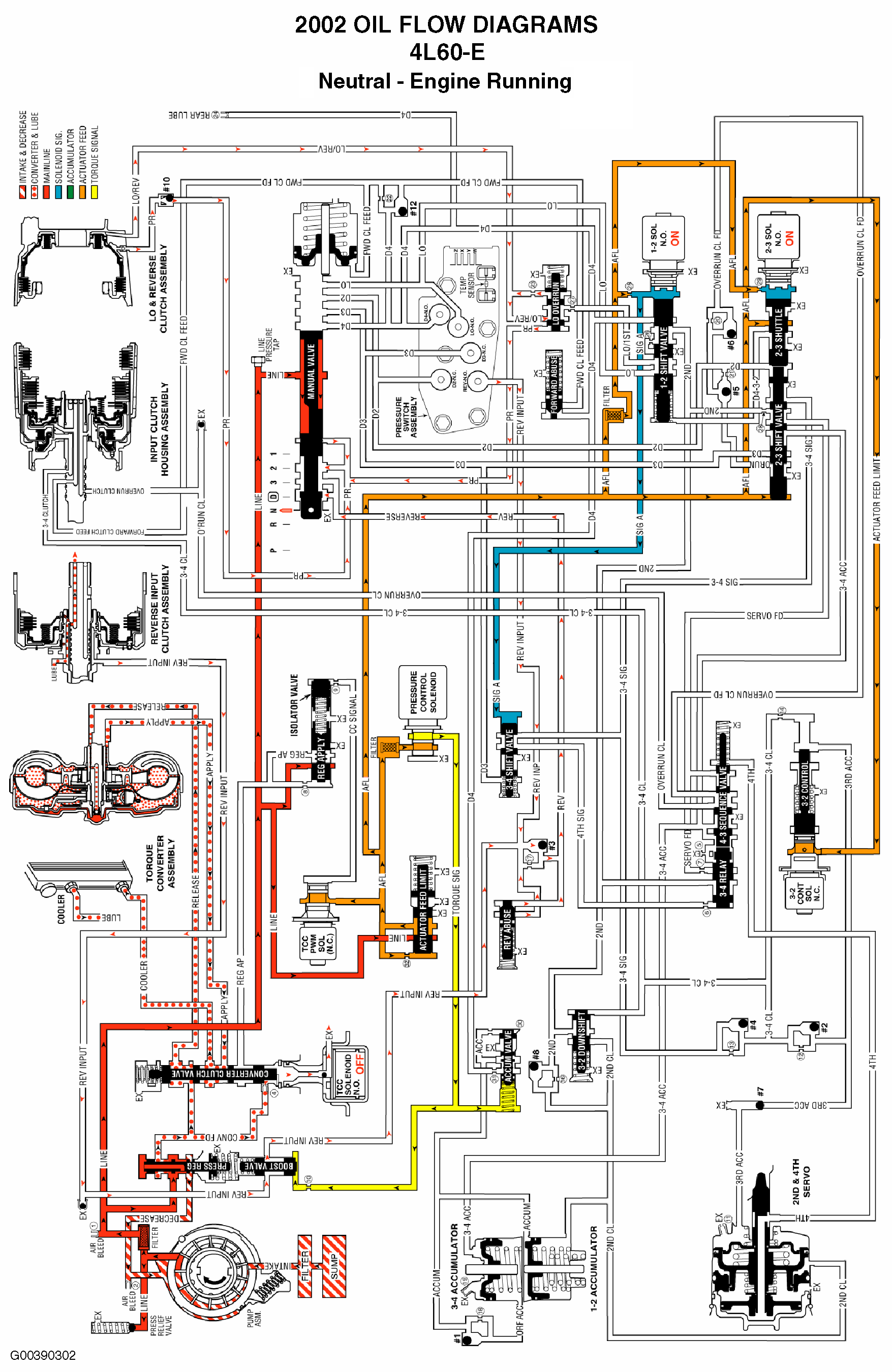

Fig 2: Neutral - Engine Running (C)

Courtesy of GENERAL MOTORS CORP.

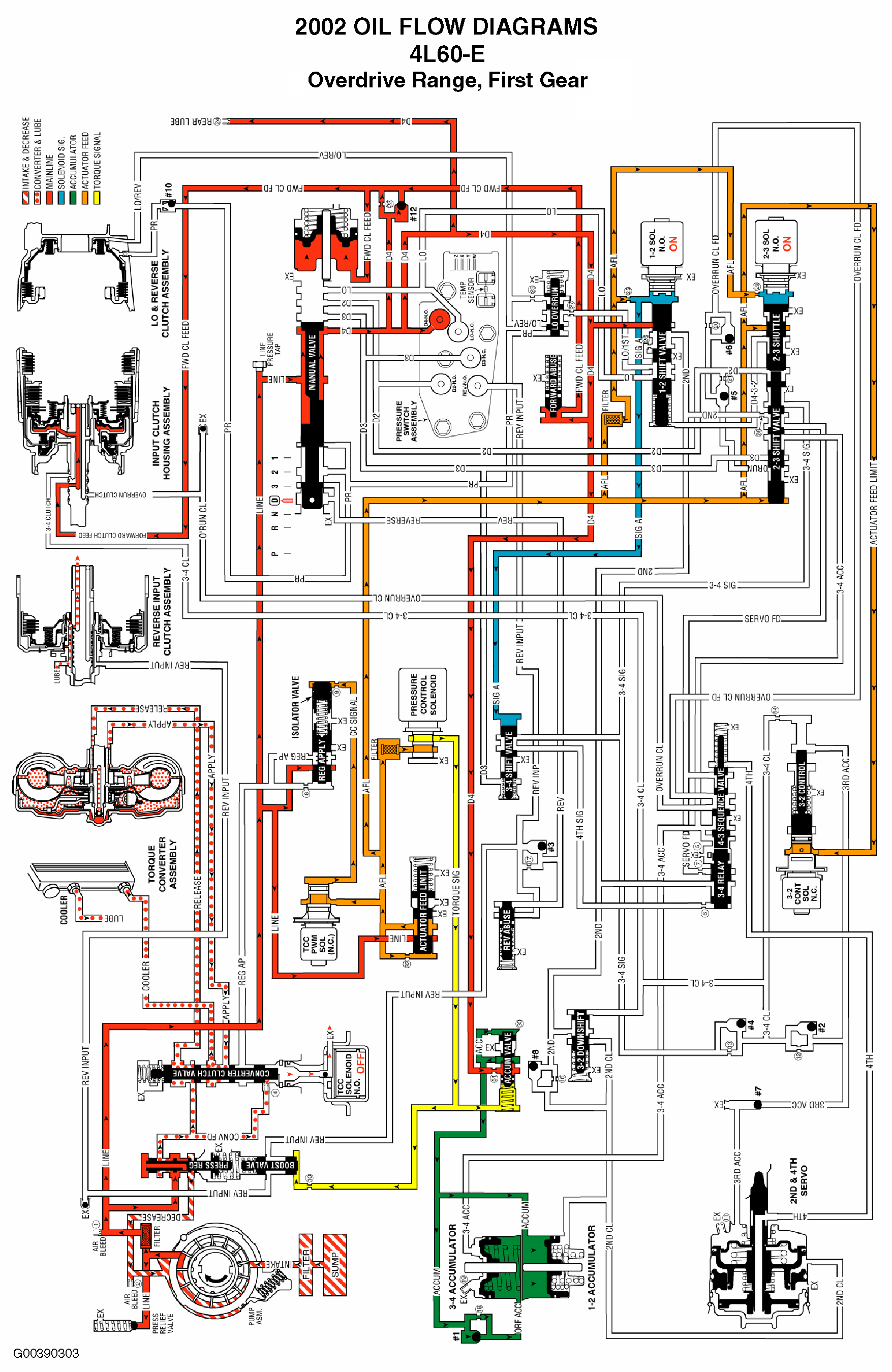

Fig 3: Overdrive Range, First Gear (C)

Courtesy of GENERAL MOTORS CORP.

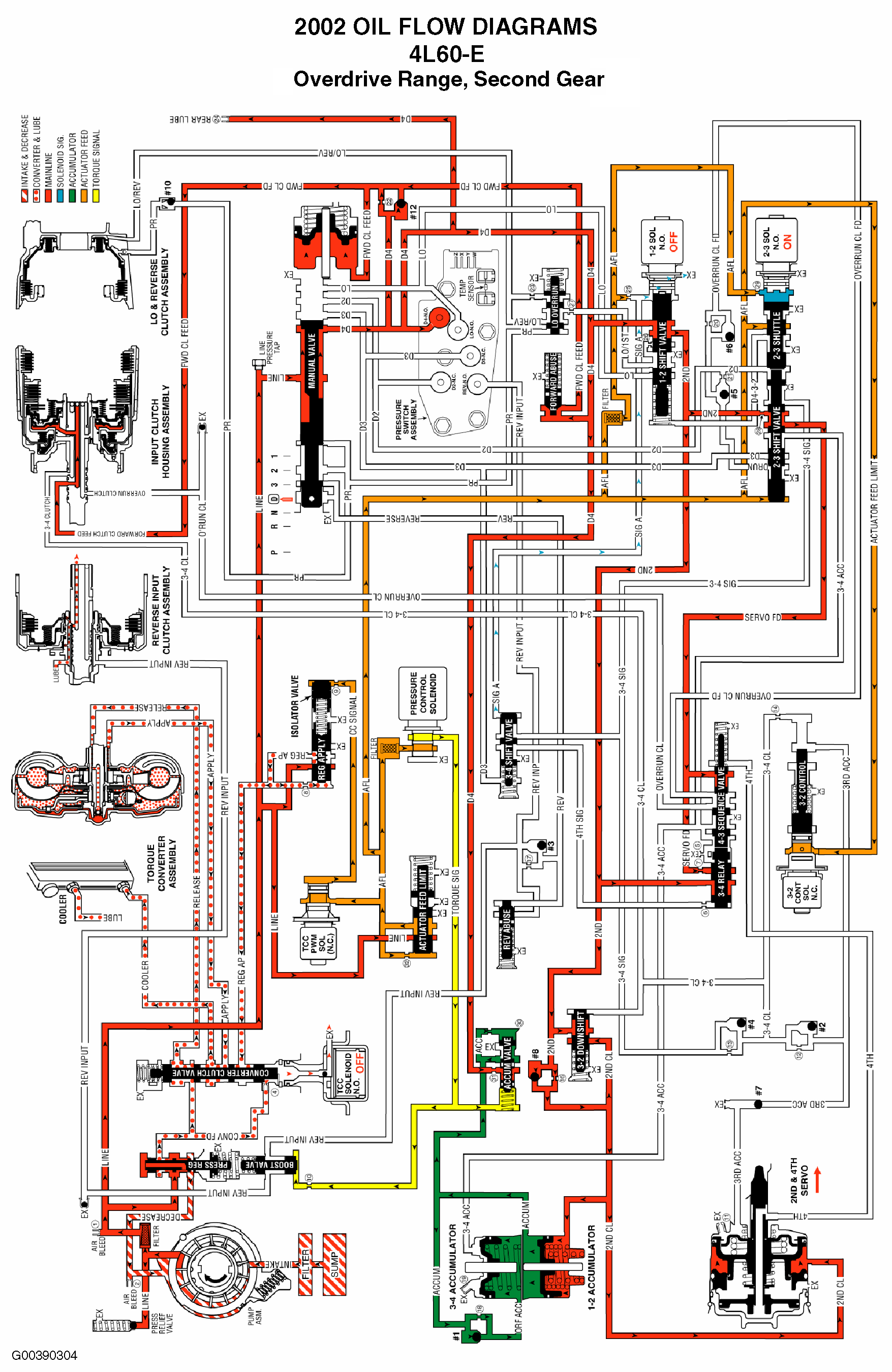

Fig 4: Overdrive Range, Second Gear (C)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Overdrive Range, Third Gear (C)

Courtesy of GENERAL MOTORS CORP.

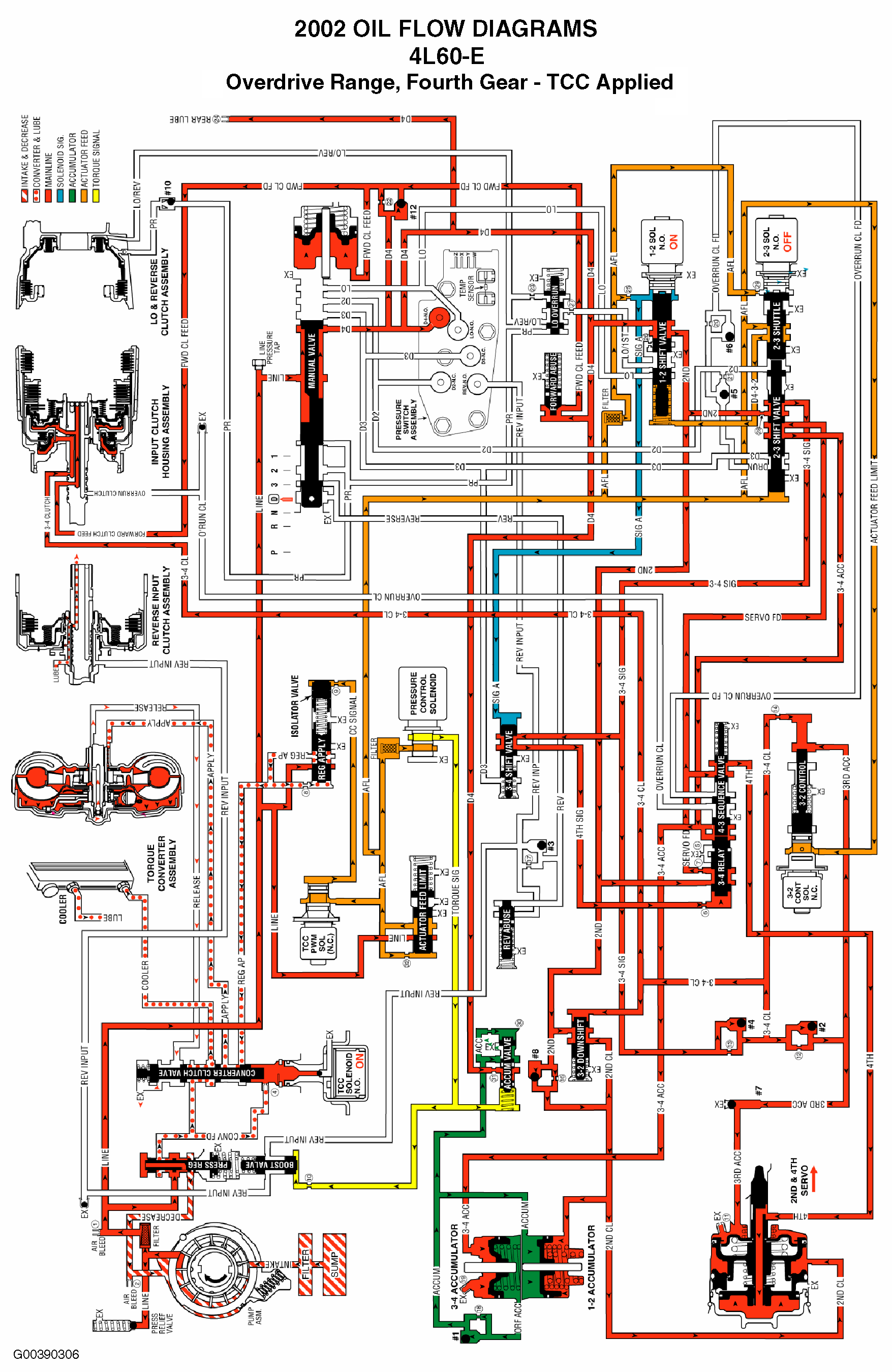

Fig 6: Overdrive Range, Fourth Gear - TCC Applied (C)

Courtesy of GENERAL MOTORS CORP.

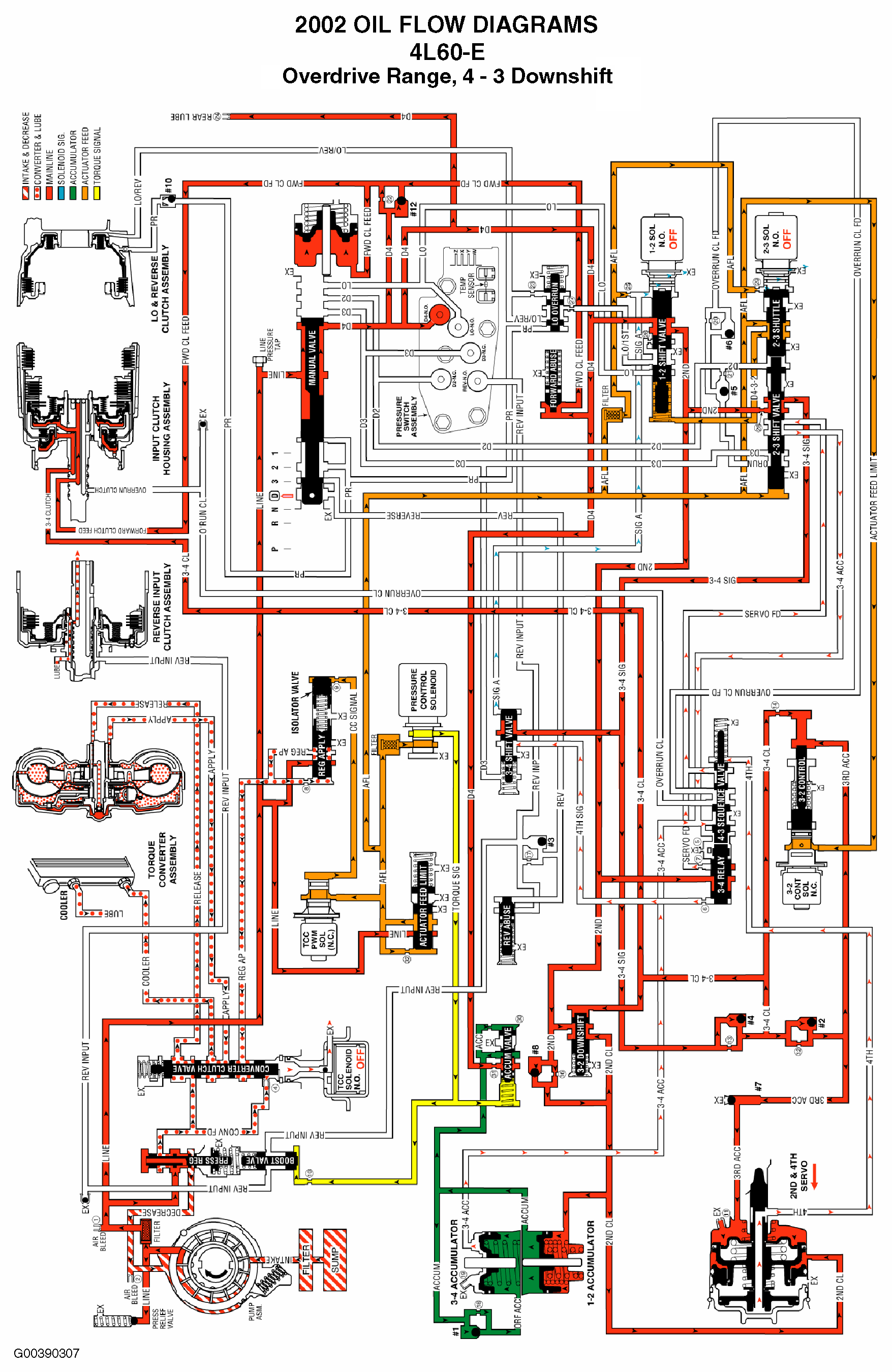

Fig 7: Overdrive Range, 4-3 Downshift (C)

Courtesy of GENERAL MOTORS CORP.

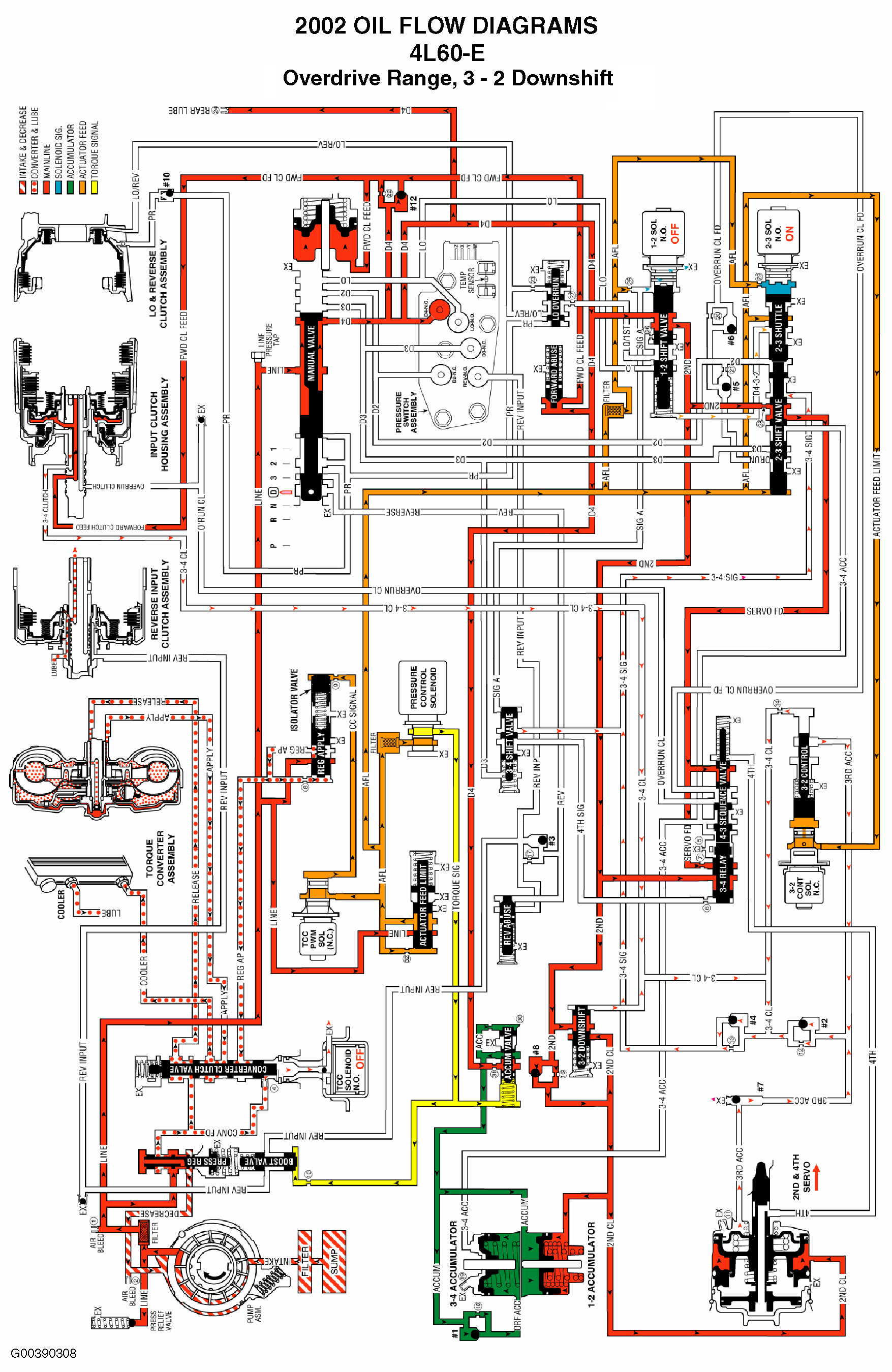

Fig 8: Overdrive Range, 3-2 Downshift (C)

Courtesy of GENERAL MOTORS CORP.

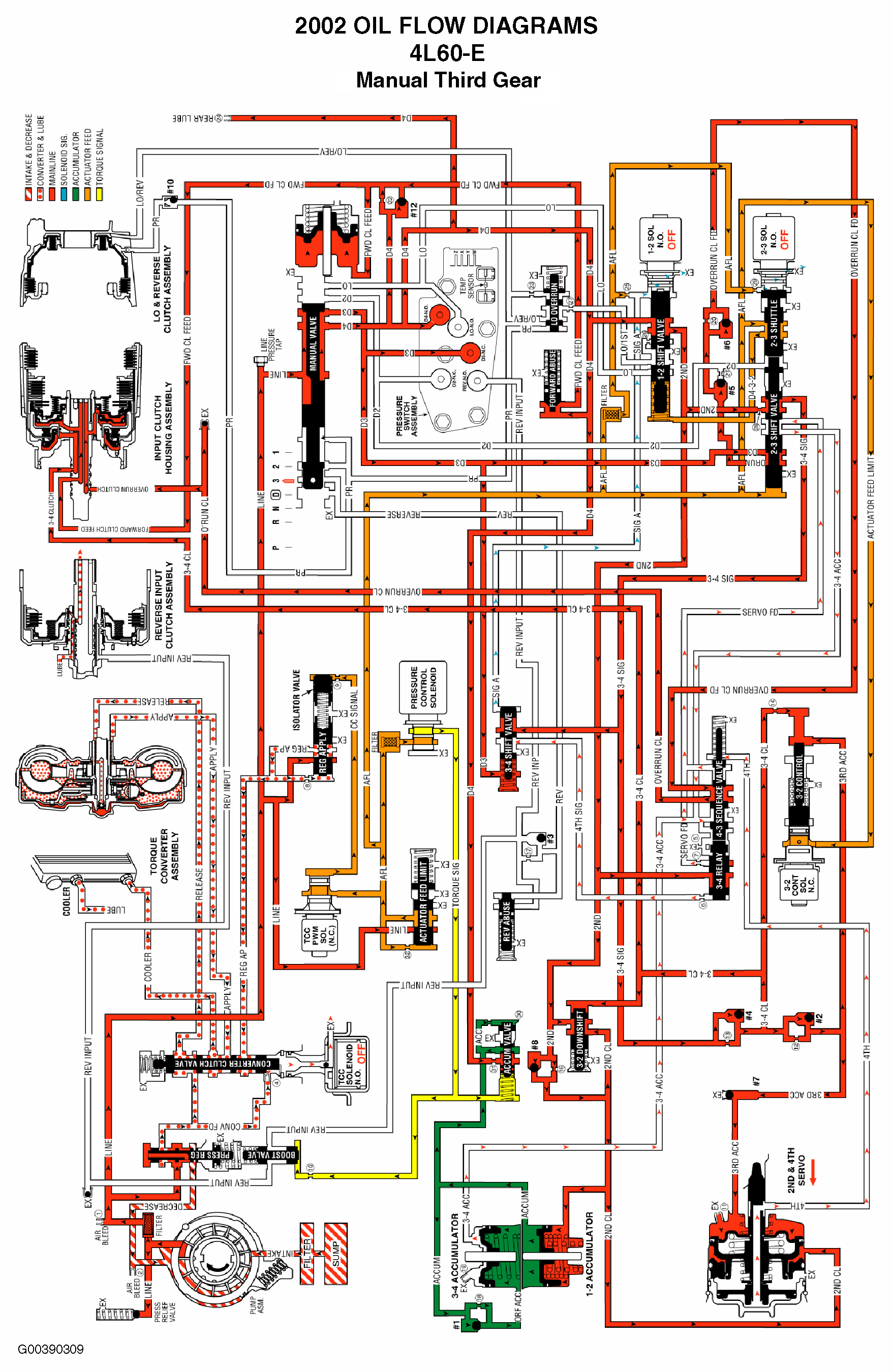

Fig 9: Manual Third Gear (C)

Courtesy of GENERAL MOTORS CORP.

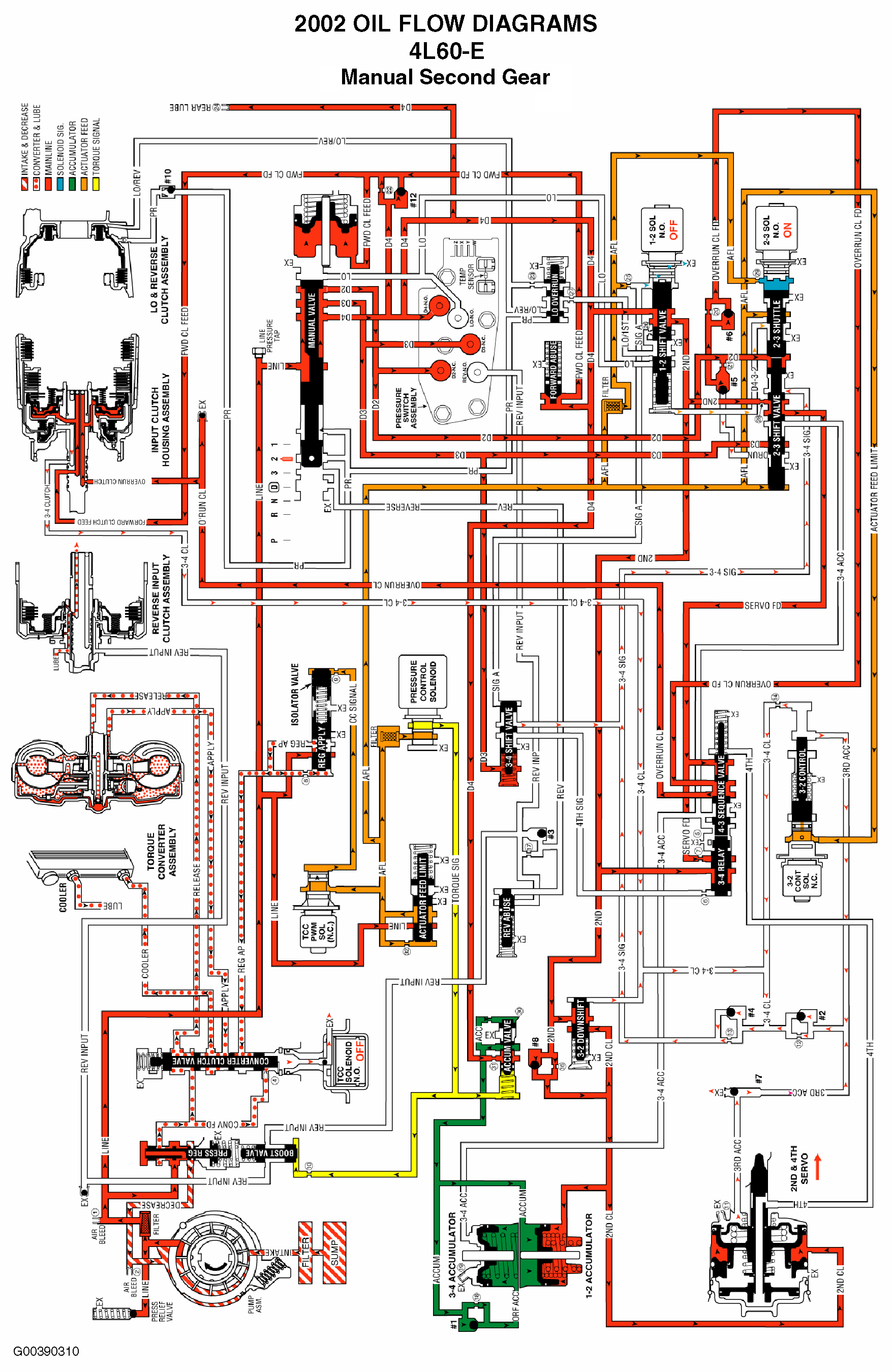

Fig 10: Manual Second Gear (C)

Courtesy of GENERAL MOTORS CORP.

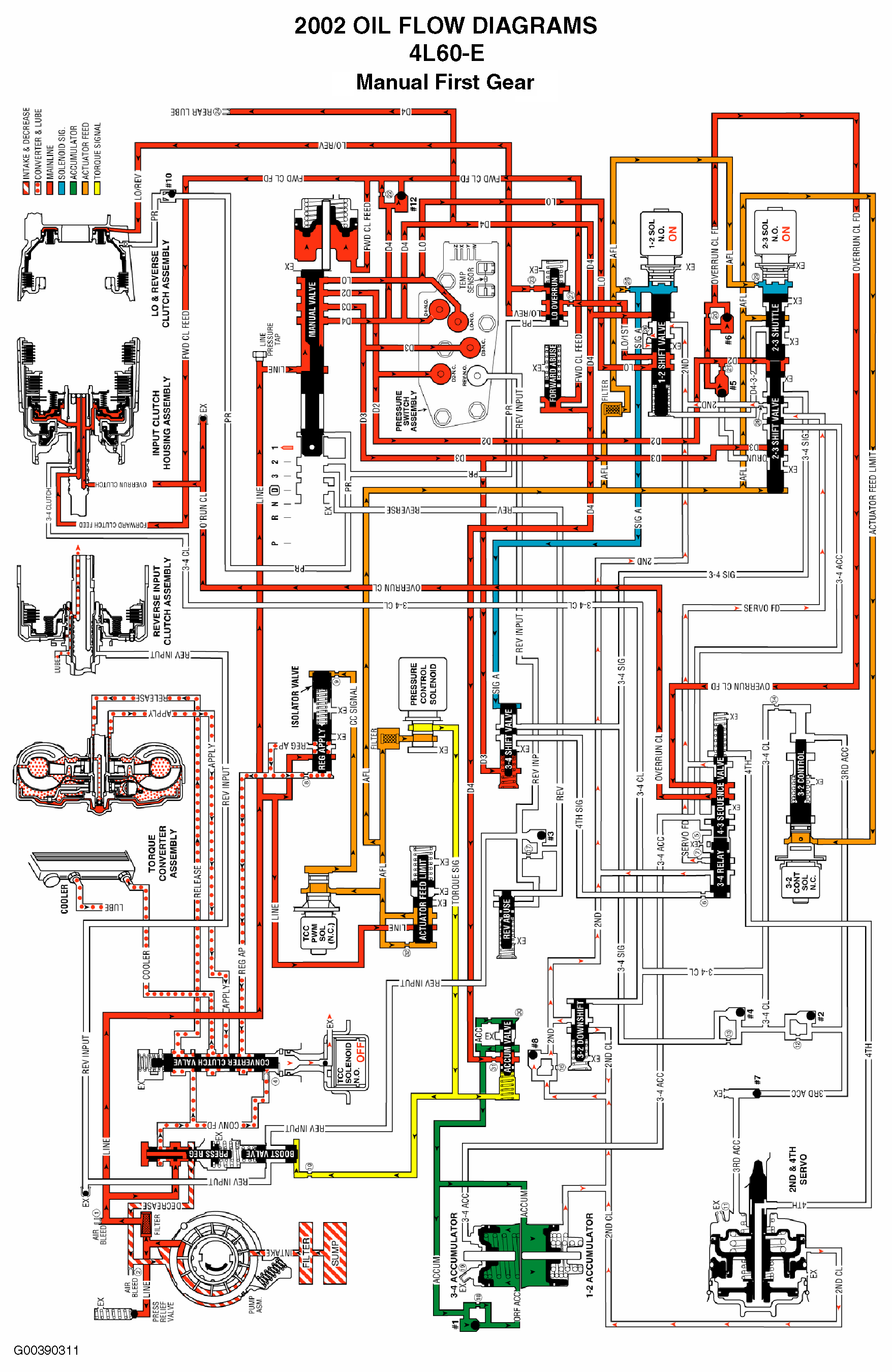

Fig 11: Manual First Gear (C)

Courtesy of GENERAL MOTORS CORP.

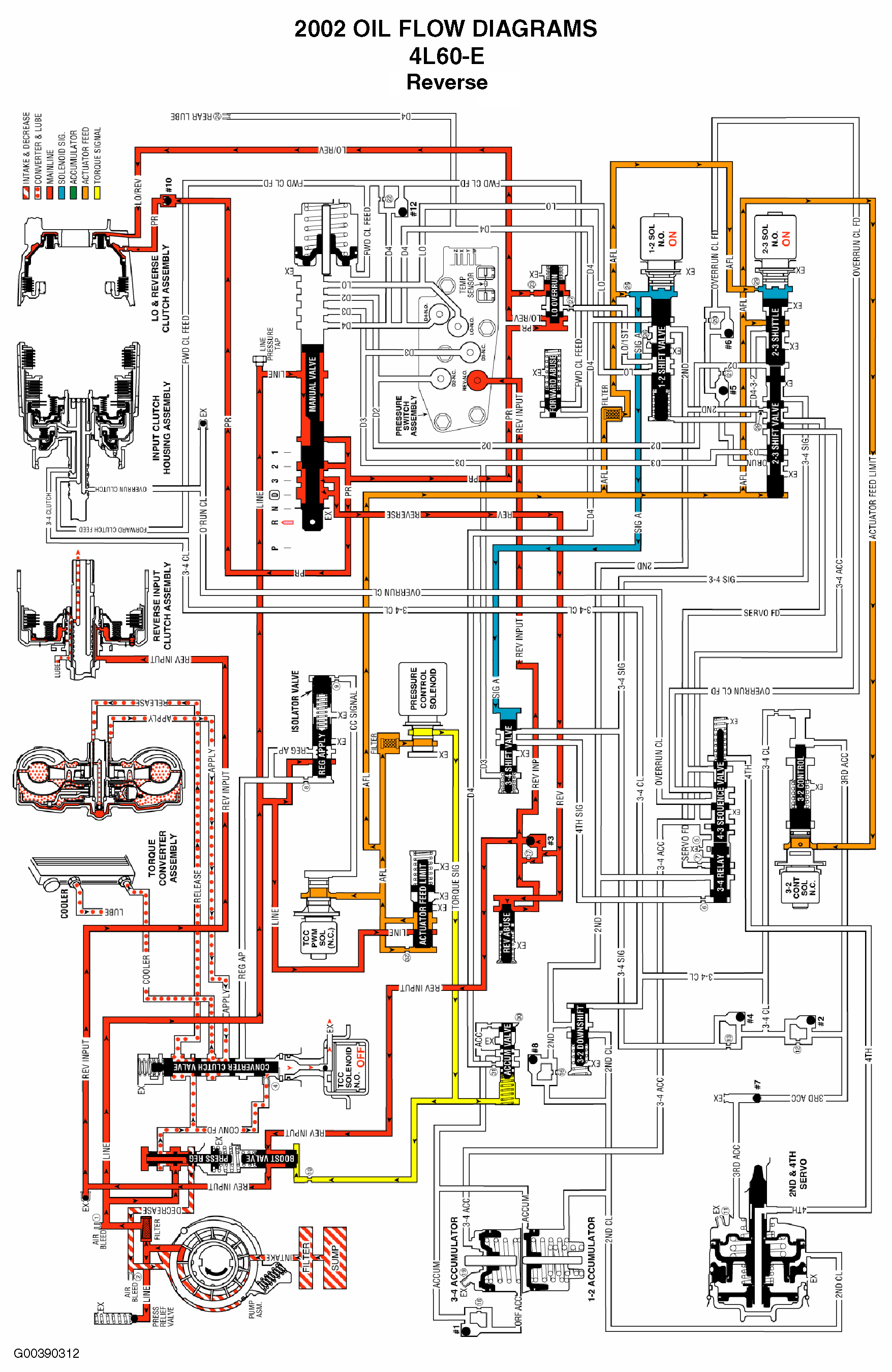

Fig 12: Reverse (C)

Courtesy of GENERAL MOTORS CORP.
