Fatigue Spalling

The surface is flaked with metal due to bearing fatigue. See Fig 1 .

  1. Clean all the parts and the housings.
  2. Replace the bearing. Refer to WHEEL HUB, BEARINGS & SEAL.

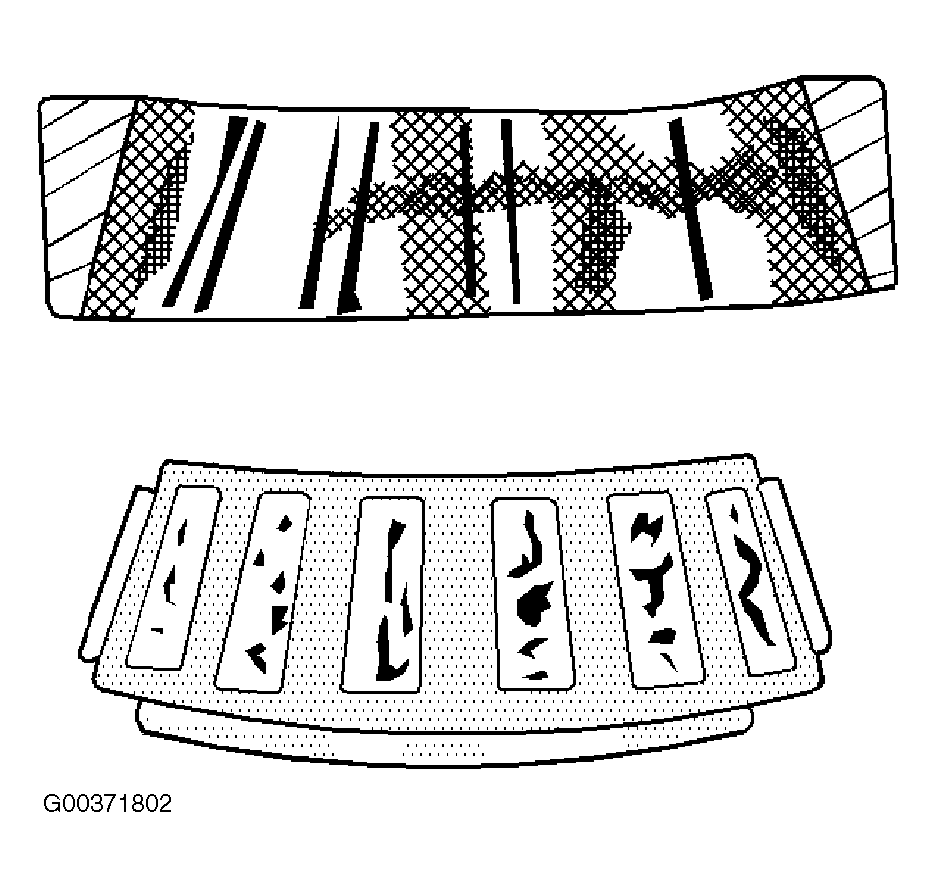

Fig 1: Identifying Fatigue Spilling
G00371802Courtesy of GENERAL MOTORS CORP.
