Cage Wear

The wear around the outside diameter of the cage and the roller pockets is caused by abrasive material or inefficient lubrication. See Fig 1 .

  1. Check the seals.
  2. Clean all the parts and the housings.
  3. Replace the bearings. Refer to WHEEL HUB, BEARINGS & SEAL.

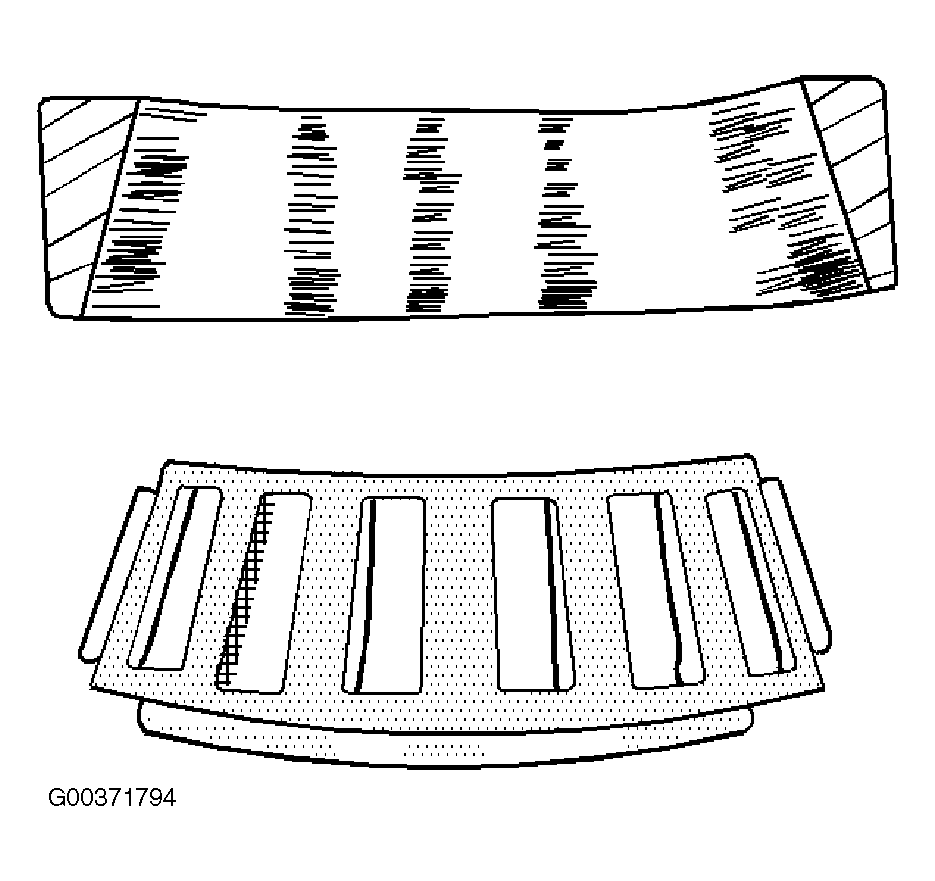

Fig 1: Identifying Cage Wear
G00371794Courtesy of GENERAL MOTORS CORP.
