Bent Cage

When a cage is damaged due to improper handling or improper tool usage. See Fig 1 and Fig 2 . Replace the bearing. Refer to WHEEL HUB, BEARINGS & SEAL.

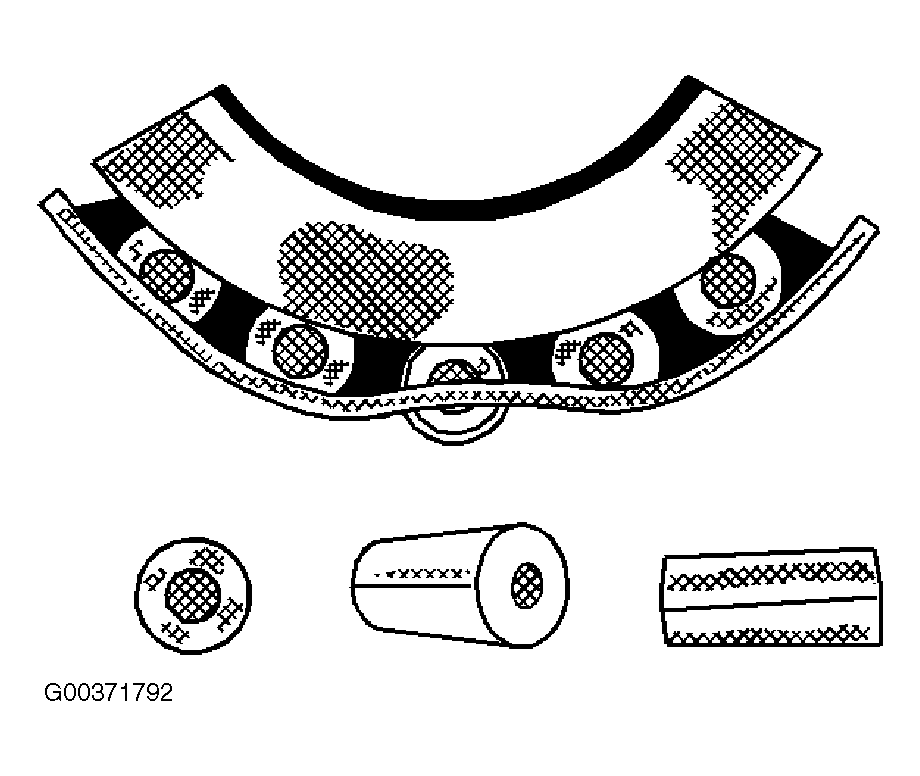

Fig 1: Identifying Bent Cage (Top View)
G00371792Courtesy of GENERAL MOTORS CORP.

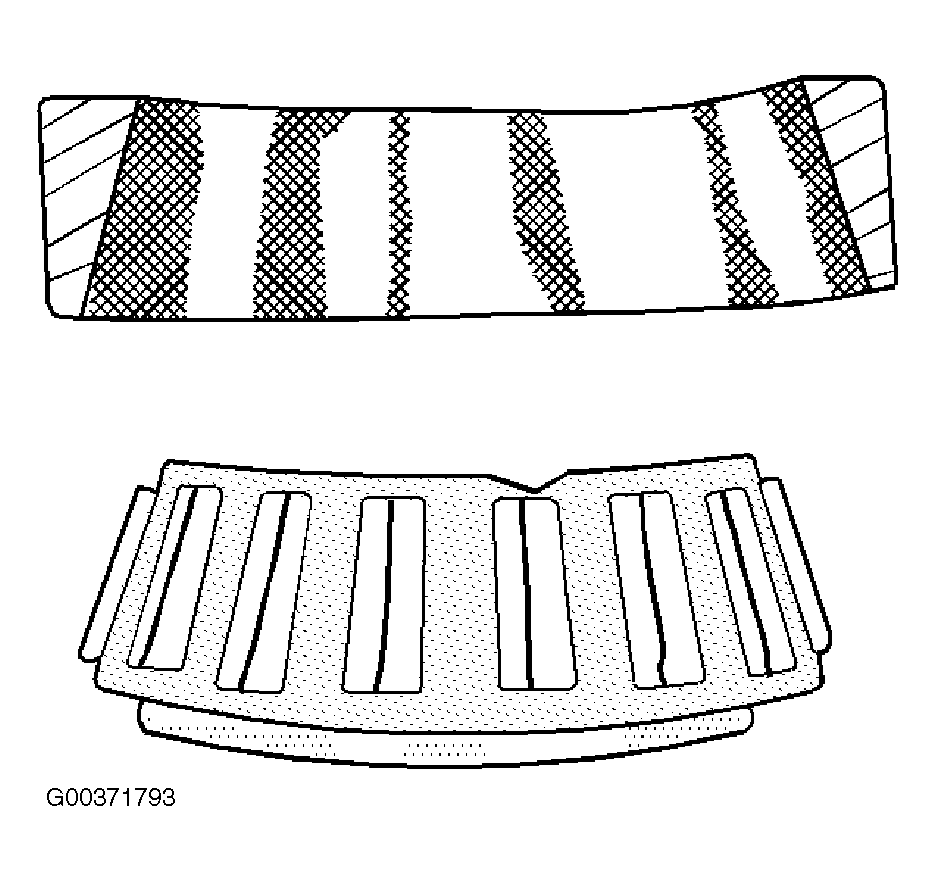

Fig 2: Identifying Bent Cage (Side View)
G00371793Courtesy of GENERAL MOTORS CORP.
