Abrasive Roller Wear

The pattern on the races and the rollers is caused by fine abrasives. See Fig 1 .

  1. Clean all of the parts and the housings.
  2. Check the seals and the bearings.
  3. Replace leaky seals, rough, or noisy bearings. Refer to WHEEL HUB, BEARINGS & SEAL.

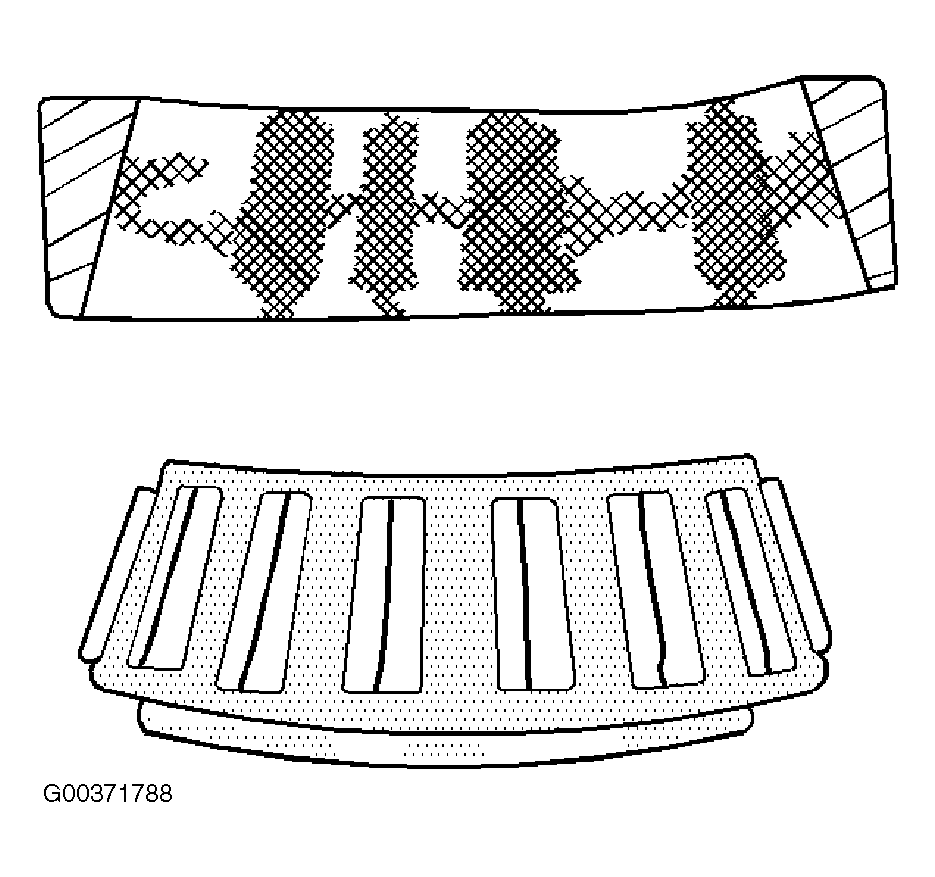

Fig 1: Identifying Abrasive Roller Wear
G00371788Courtesy of GENERAL MOTORS CORP.
