Radial Tire Lead/Pull Correction

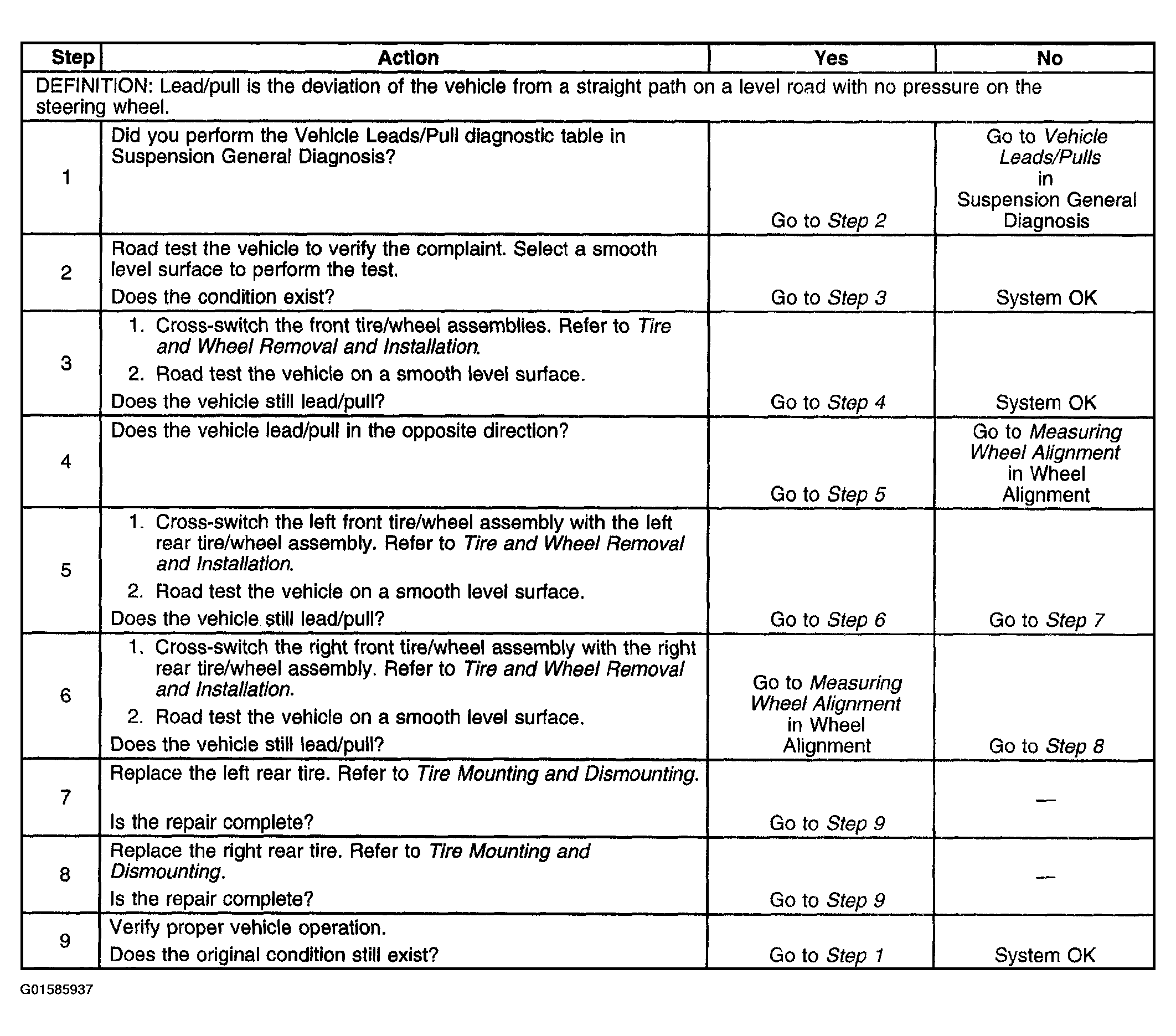

Fig 1: Radial Tire Lead/Pull Correction
G01585937Courtesy of GENERAL MOTORS CORP.
