Fatigue Spalling

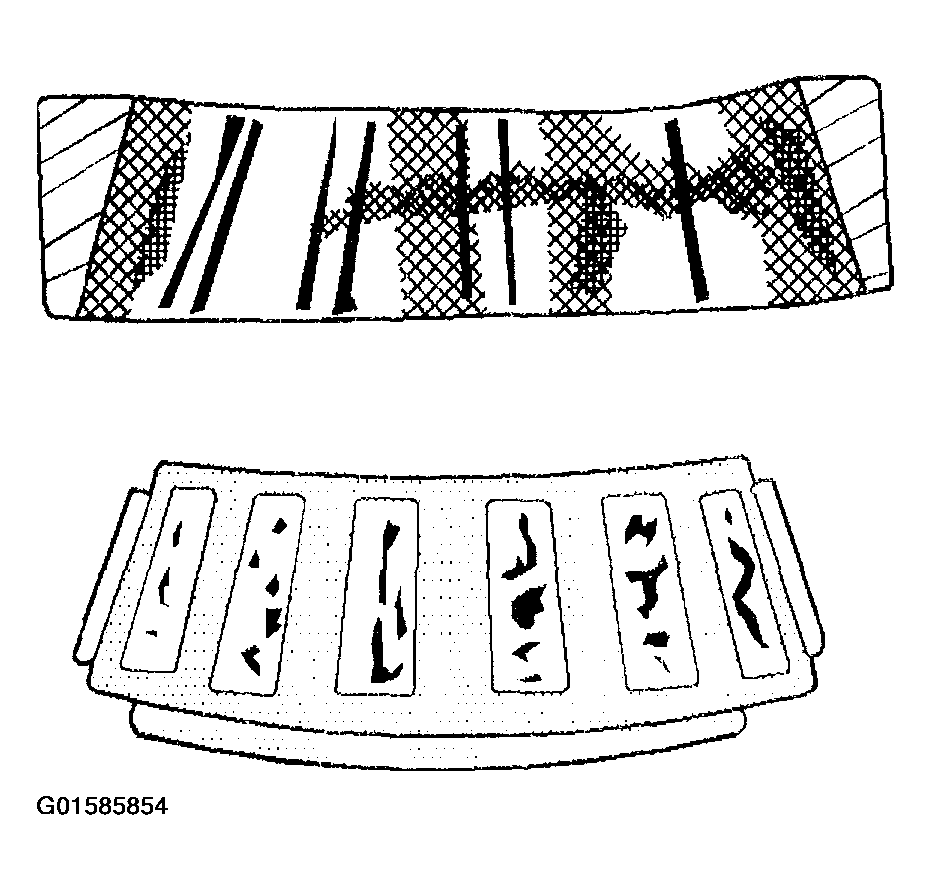

Fig 1: Identifying Fatigue Spalling

Courtesy of GENERAL MOTORS CORP.

The surface is flaked with metal due to bearing fatigue.

1. Clean all the parts and the housings.
2. Replace the bearing. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT in Front Suspension.
