Bent Cage (Side View)

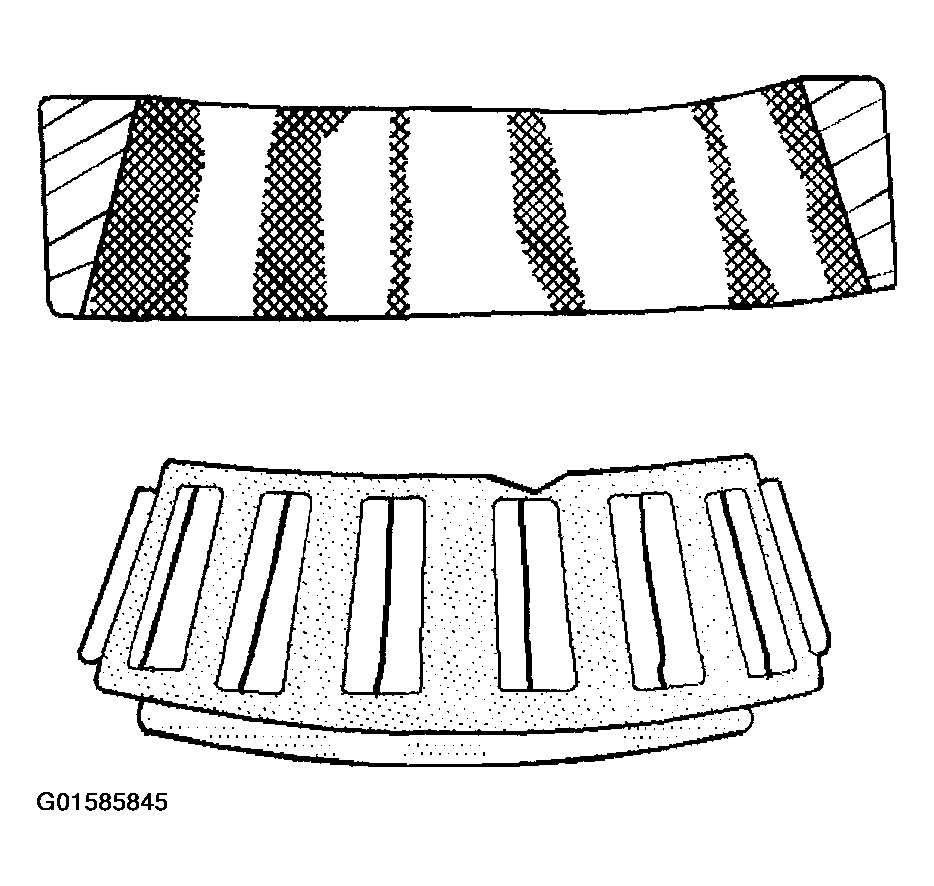

Fig 1: Identifying Bent Cage (Side View)

Courtesy of GENERAL MOTORS CORP.

The cage may be damaged due to improper handling or improper tool usage. Replace the bearing. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT in Front Suspension.
