Abrasive Roller Wear

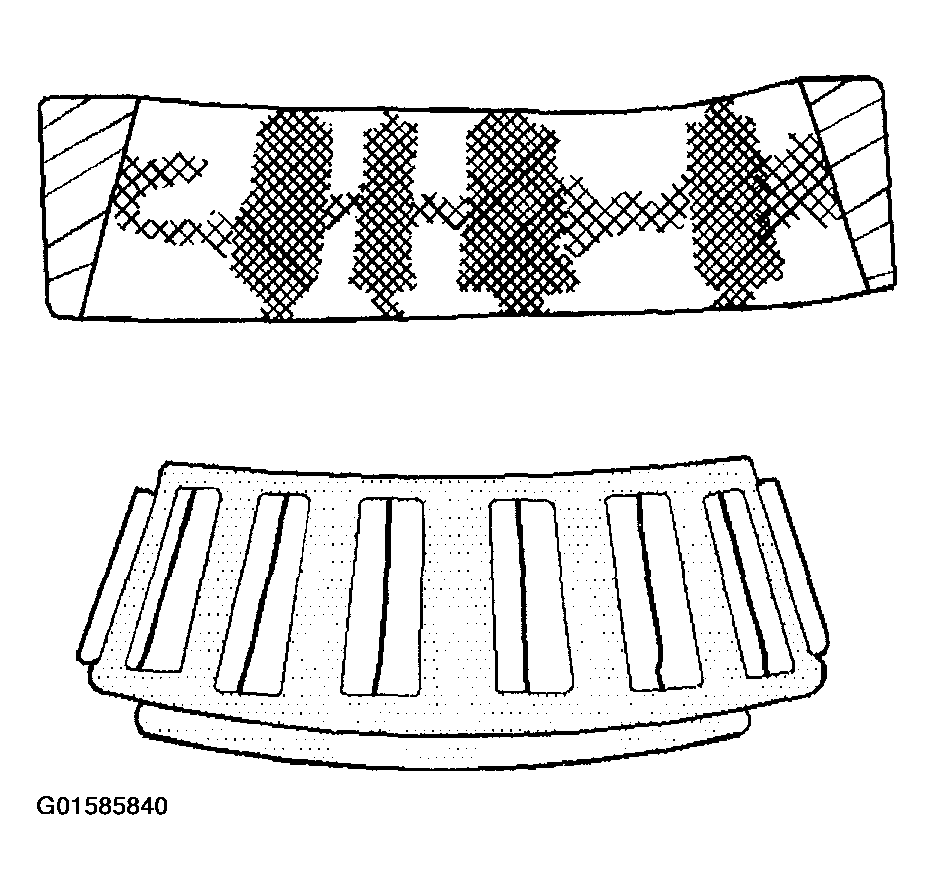

Fig 1: Identifying Abrasive Roller Wear

Courtesy of GENERAL MOTORS CORP.

The pattern on the races and the rollers is caused by fine abrasives.

1. Clean all of the parts and the housings.
2. Check the seals and the bearings.
3. Replace leaky seals, rough, or noisy bearings. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT in Front Suspension.
