Vehicle Leads/Pulls

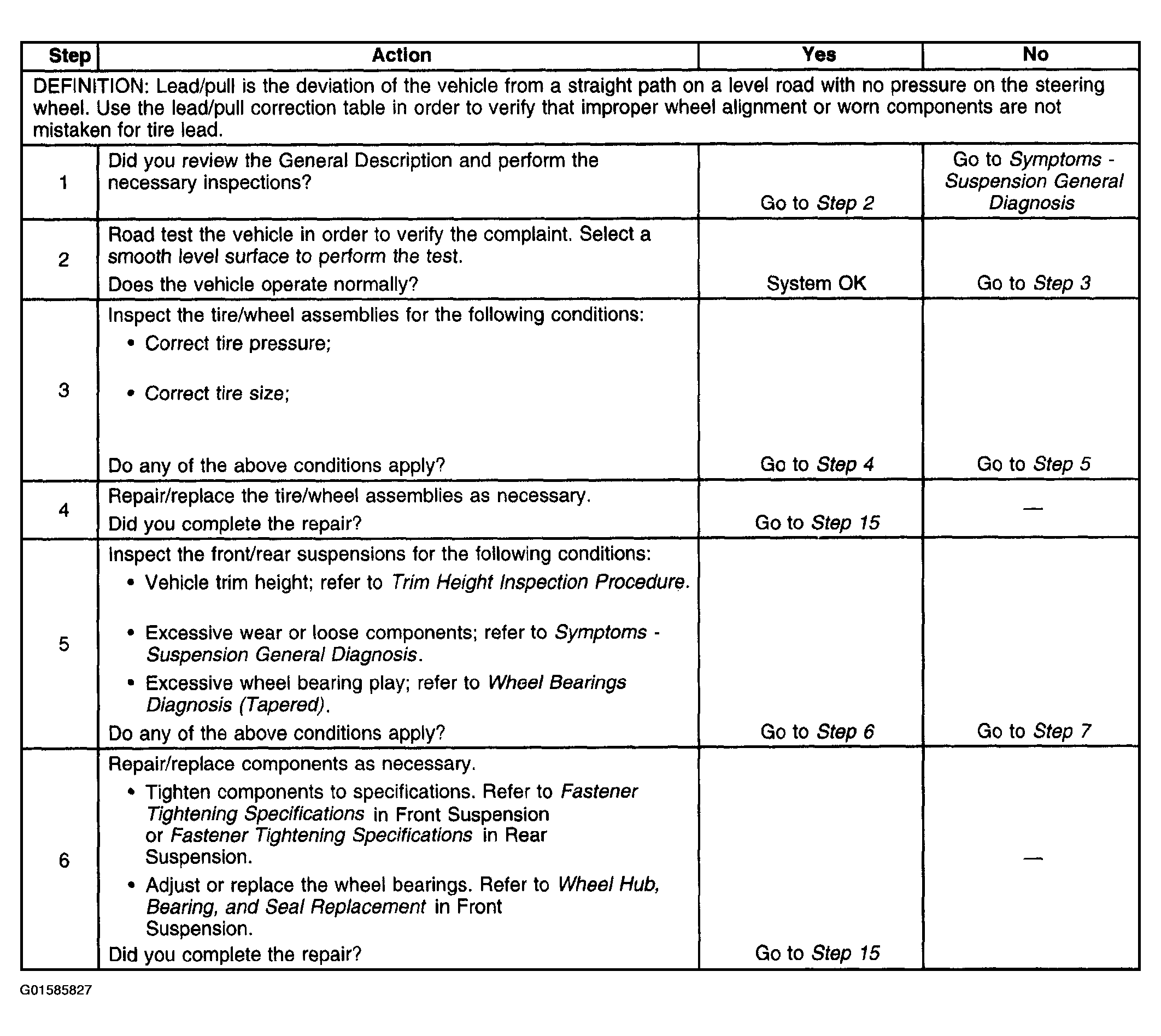

Fig 1: Vehicle Leads/Pulls (1 Of 2)

G01585827

Courtesy of GENERAL MOTORS CORP.

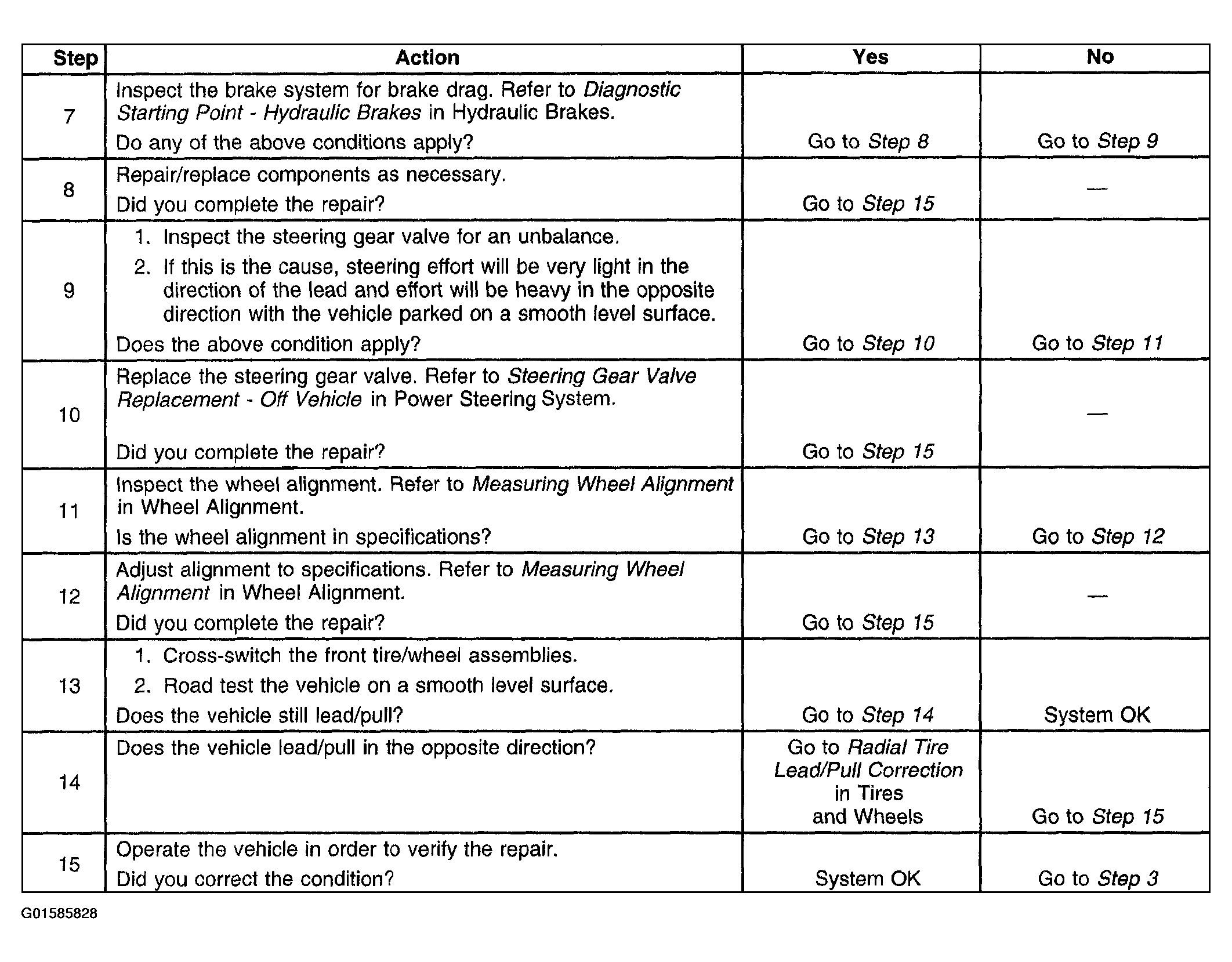

Fig 2: Vehicle Leads/Pulls (Of 2)

G01585828

Courtesy of GENERAL MOTORS CORP.
