Front Axle Height Measurement
The C height dimension measurement determines the proper ride height for the front end of the vehicle. Vehicles without torsion bars have no adjustment and could require replacement of suspension components. The B height dimension measurement determines if the front axle is bent. Check the suspension and steering components for any binding conditions.
- Lift the front bumper of the vehicle up about 38 mm (1.5 in).
- Gently remove your hands.
- Allow the vehicle to settle into position.
- Repeat this jouncing operation 2 more times for a total of 3 times.

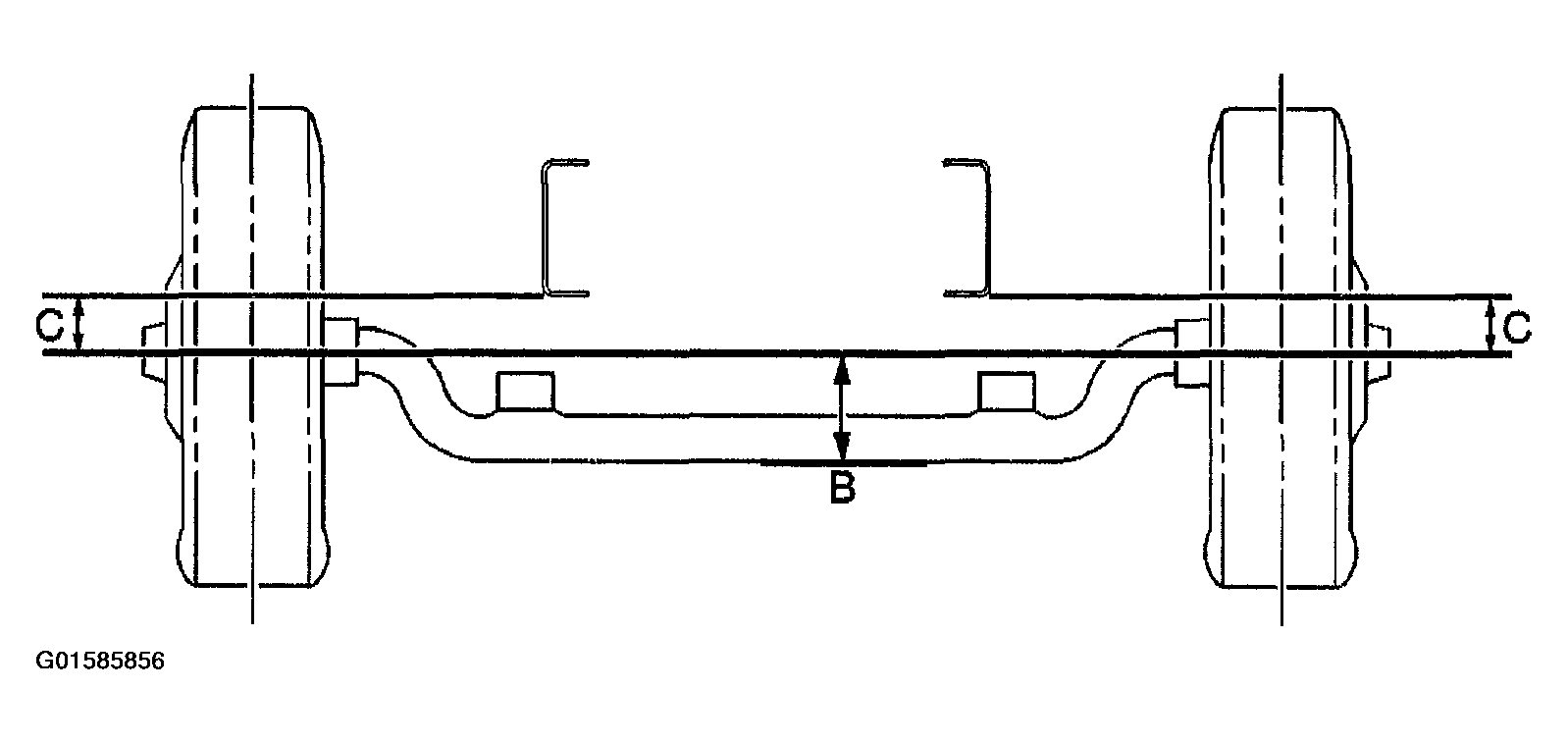

- Measure from the center line to the bottom inside frame rail in order to obtain the C height measurement for the axle.
- Measure from the axle center line of each front wheel to the bottom of the axle beam to obtain the B height measurement for the front axle.
- The true C and B height dimension is the average of the high and low measurements. Refer to Trim Height Specifications .
