Struts or Shock Absorbers On-Vehicle Testing

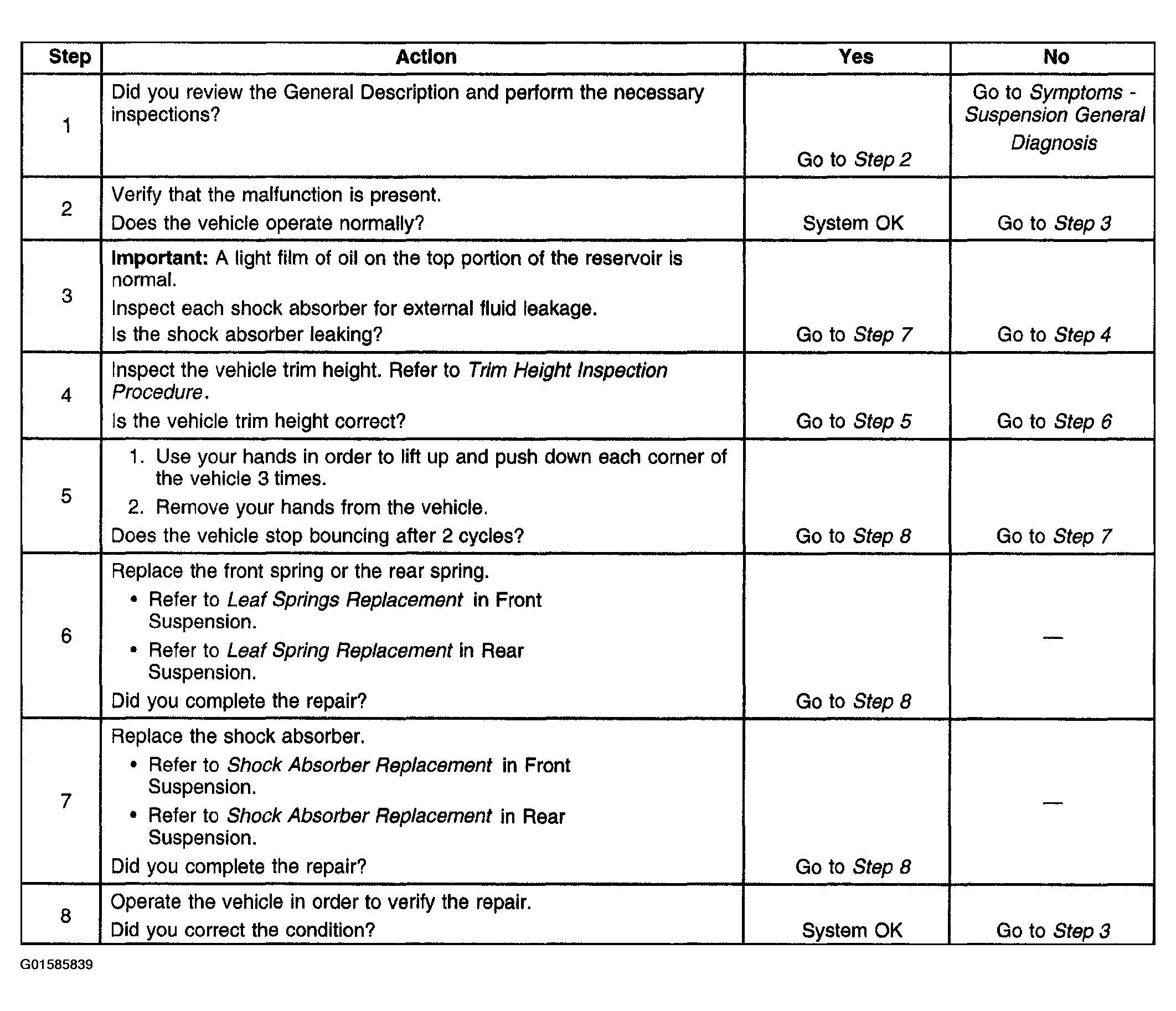

Fig 1: Struts Or Shock Absorbers On-Vehicle Testing
G01585839Courtesy of GENERAL MOTORS CORP.
