Ride Diagnosis - Too Soft

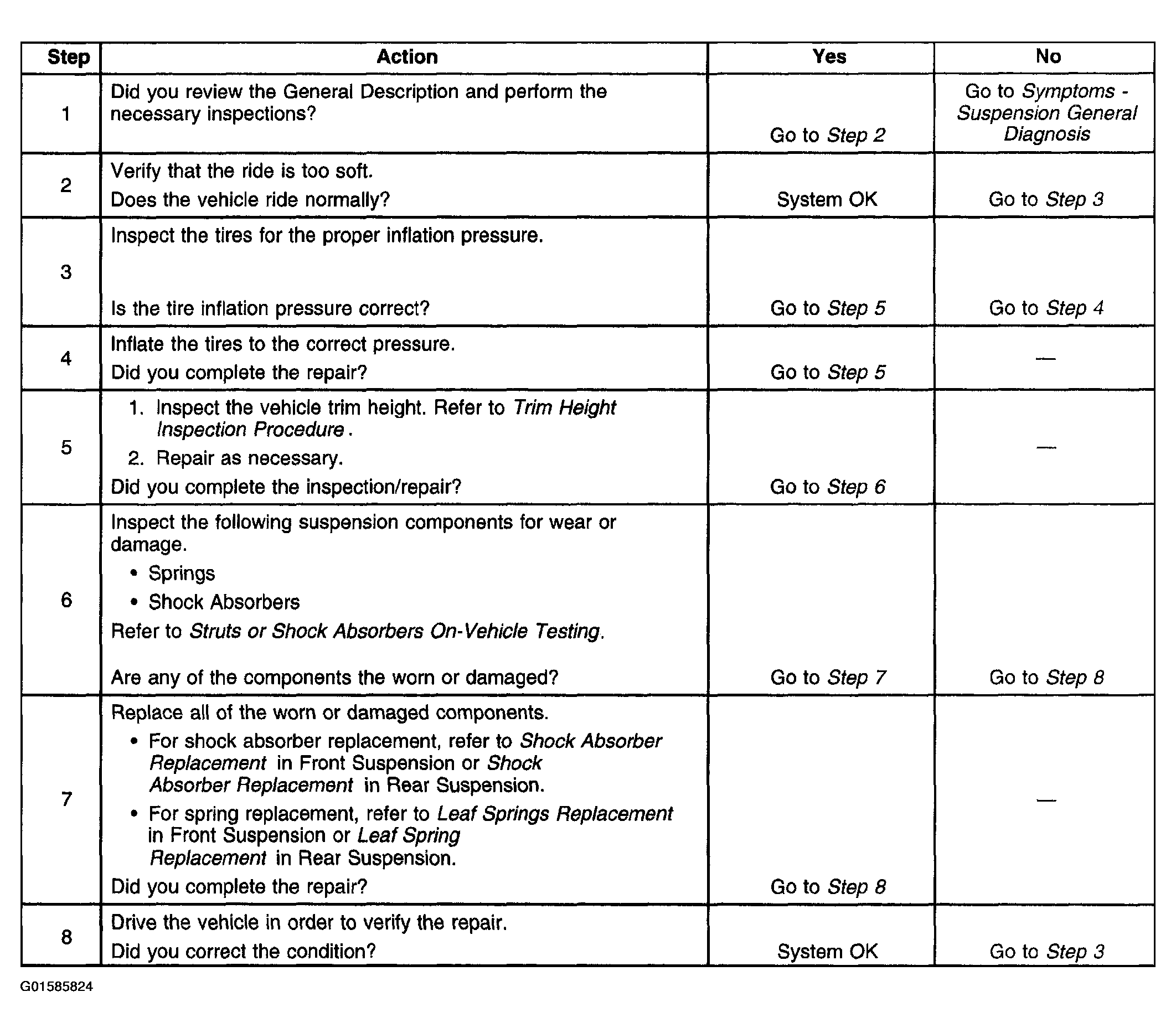

Fig 1: Ride Diagnosis - Too Soft
G01585824Courtesy of GENERAL MOTORS CORP.
