Ride Diagnosis - Too Hard

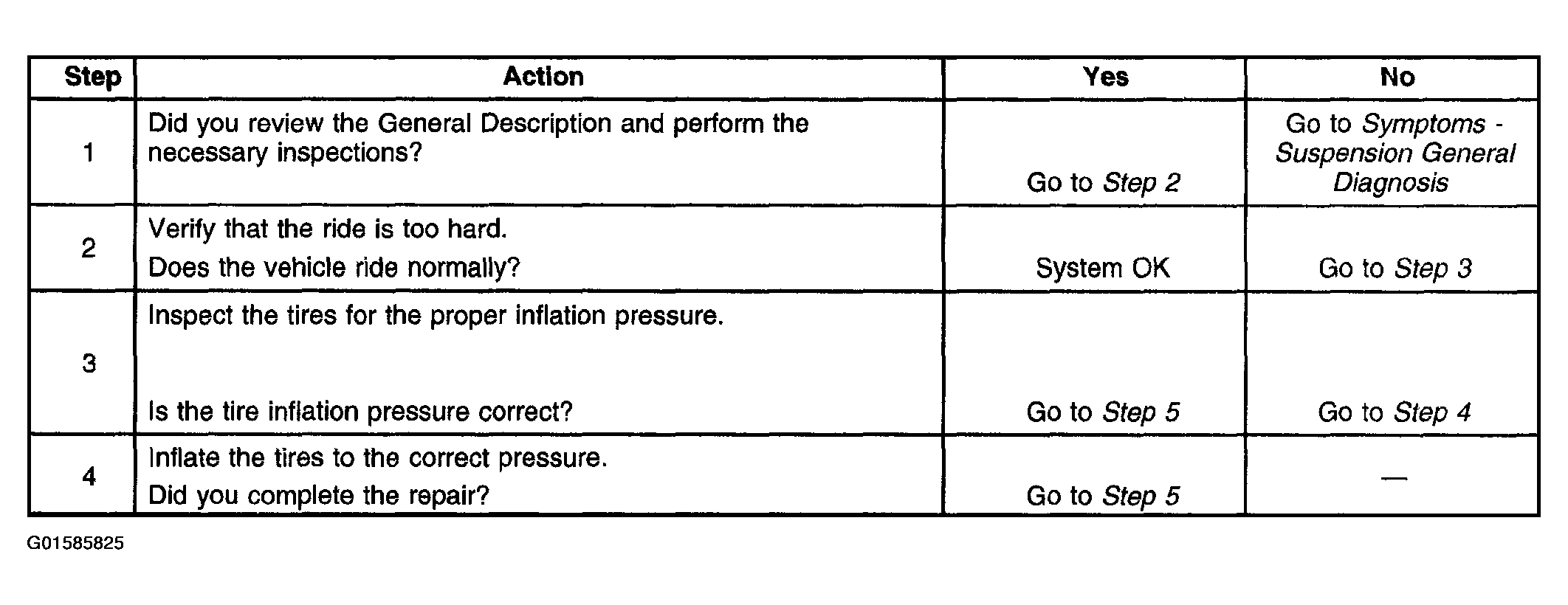

Fig 1: Ride Diagnosis - Too Hard (1 Of 2)

G01585825

Courtesy of GENERAL MOTORS CORP.

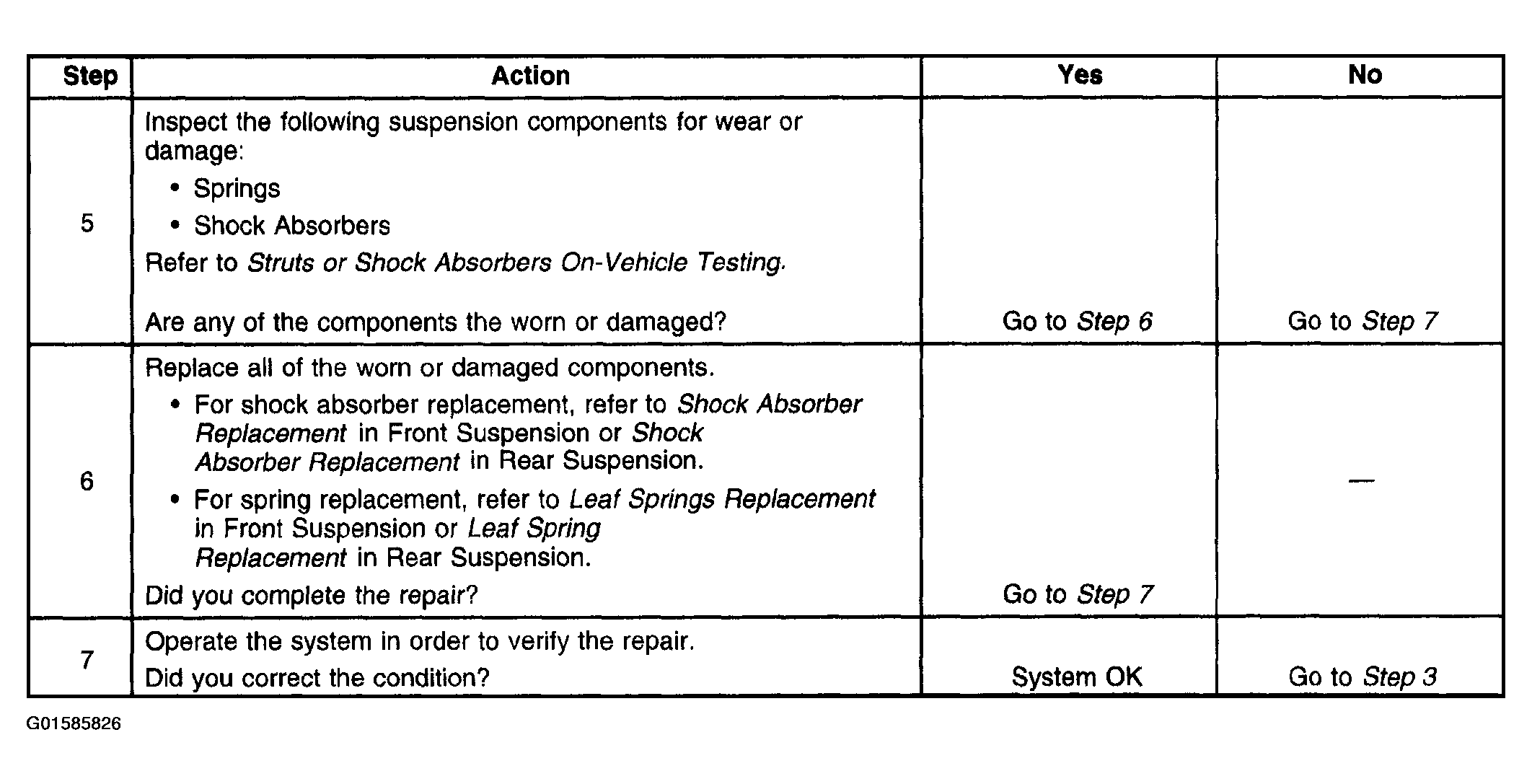

Fig 2: Ride Diagnosis - Too Hard (2 Of 2)

G01585826

Courtesy of GENERAL MOTORS CORP.
