Noise Diagnosis - Front Suspension

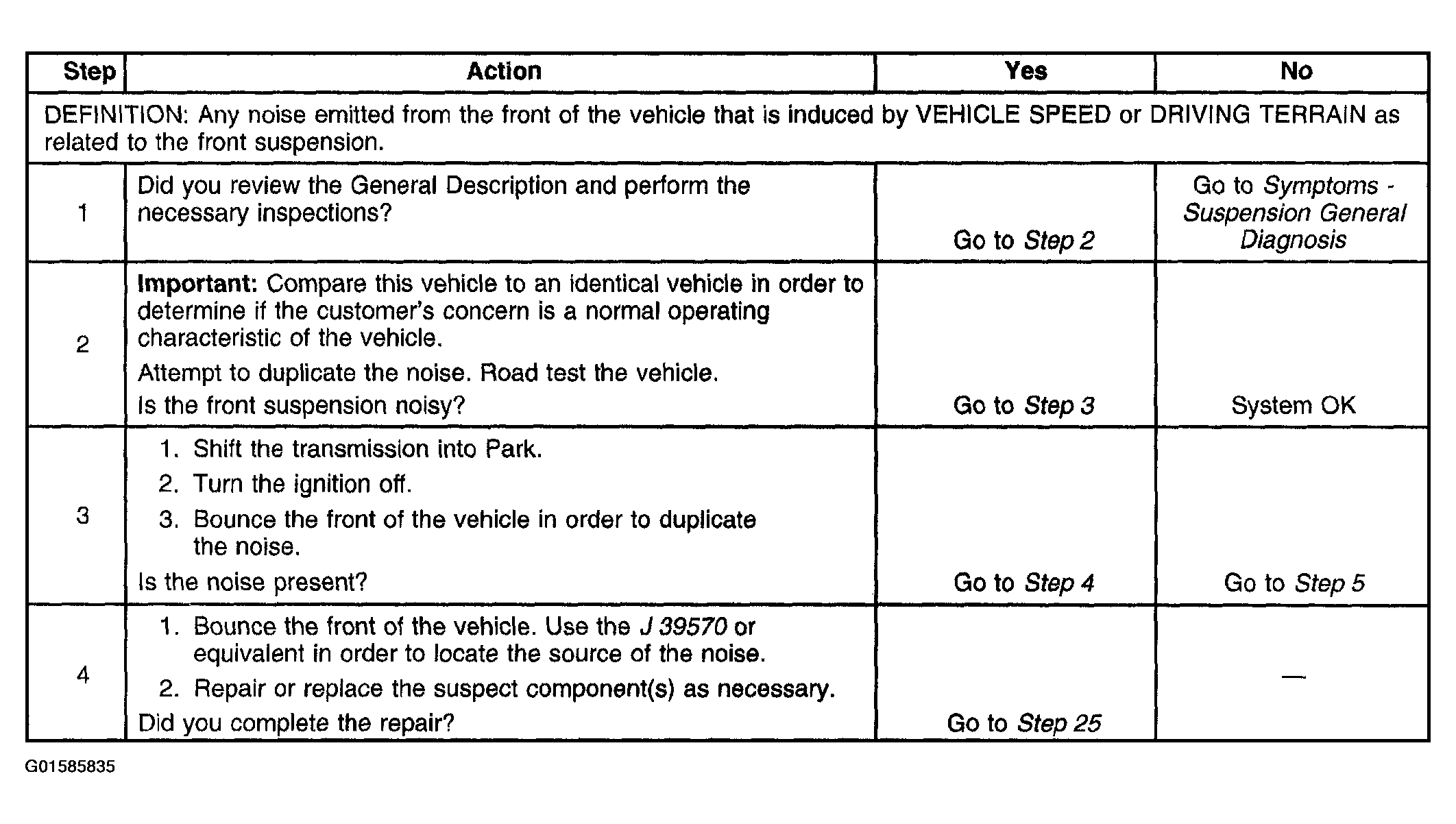

Fig 1: Noise Diagnosis - Front Suspension (1 Of 3)
G01585835Courtesy of GENERAL MOTORS CORP.

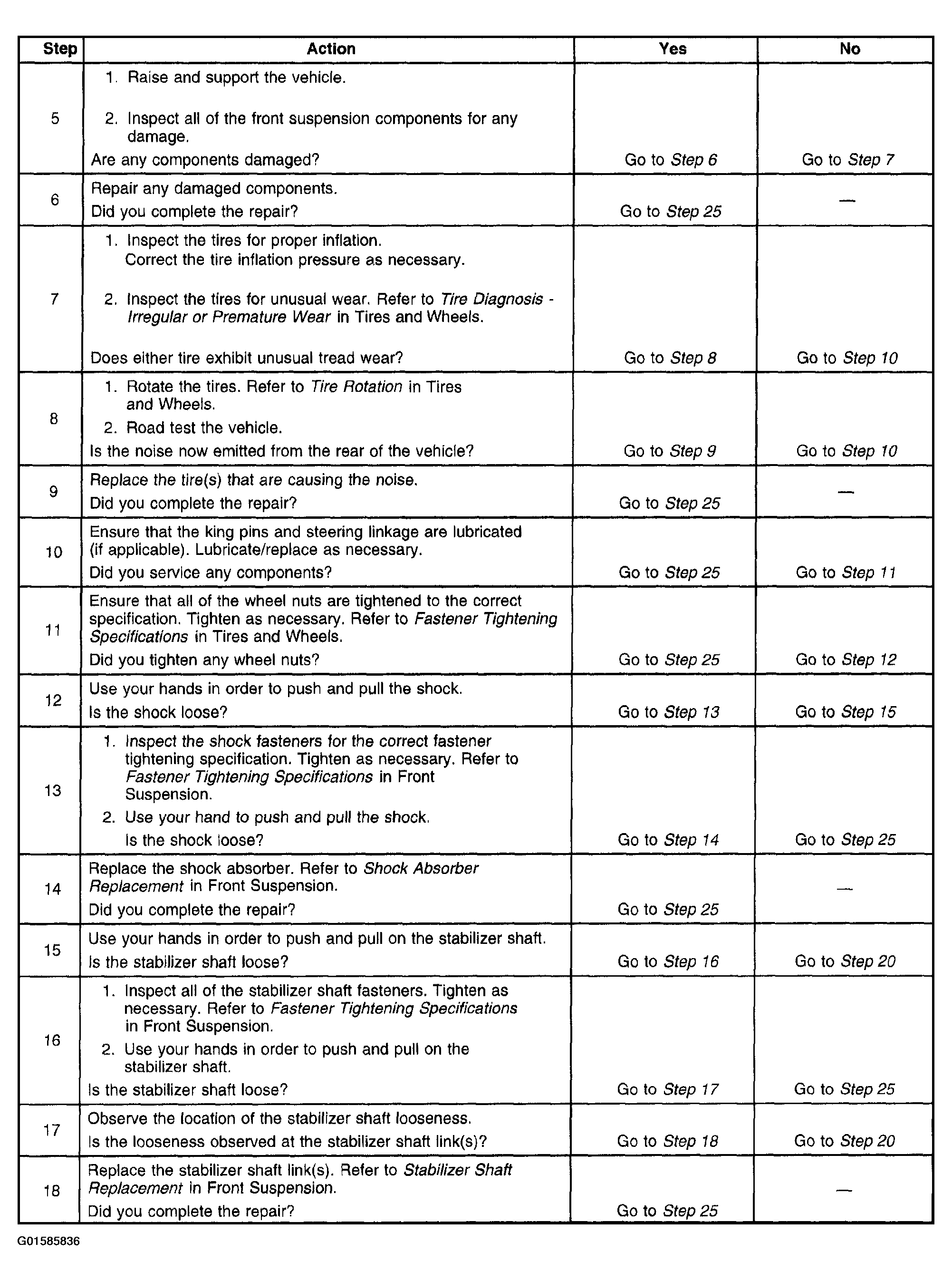

Fig 2: Noise Diagnosis - Front Suspension (2 Of 3)
G01585836Courtesy of GENERAL MOTORS CORP.

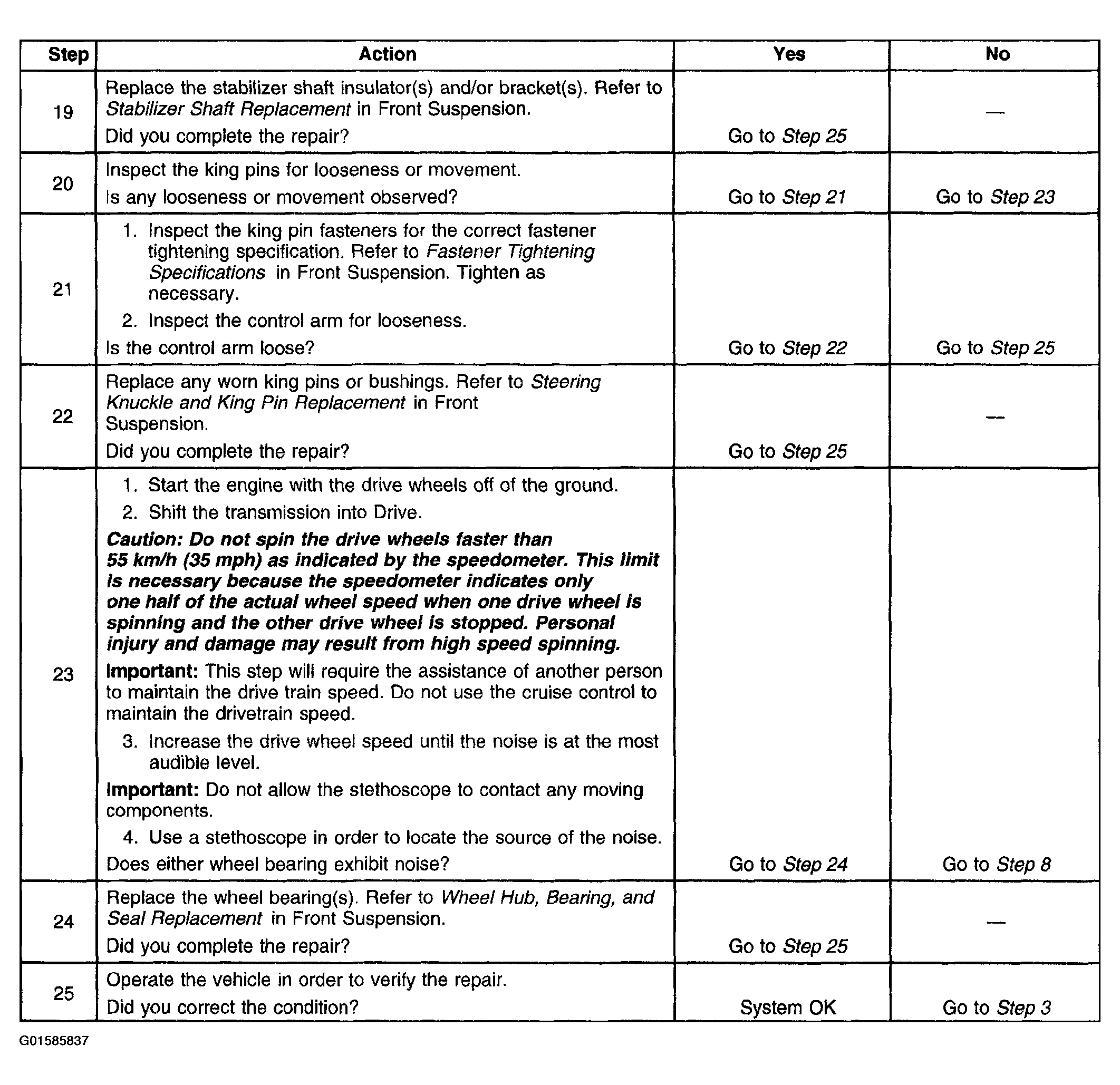

Fig 3: Noise Diagnosis - Front Suspension (3 Of 3)
G01585837Courtesy of GENERAL MOTORS CORP.
