Memory Steer
Memory Steer

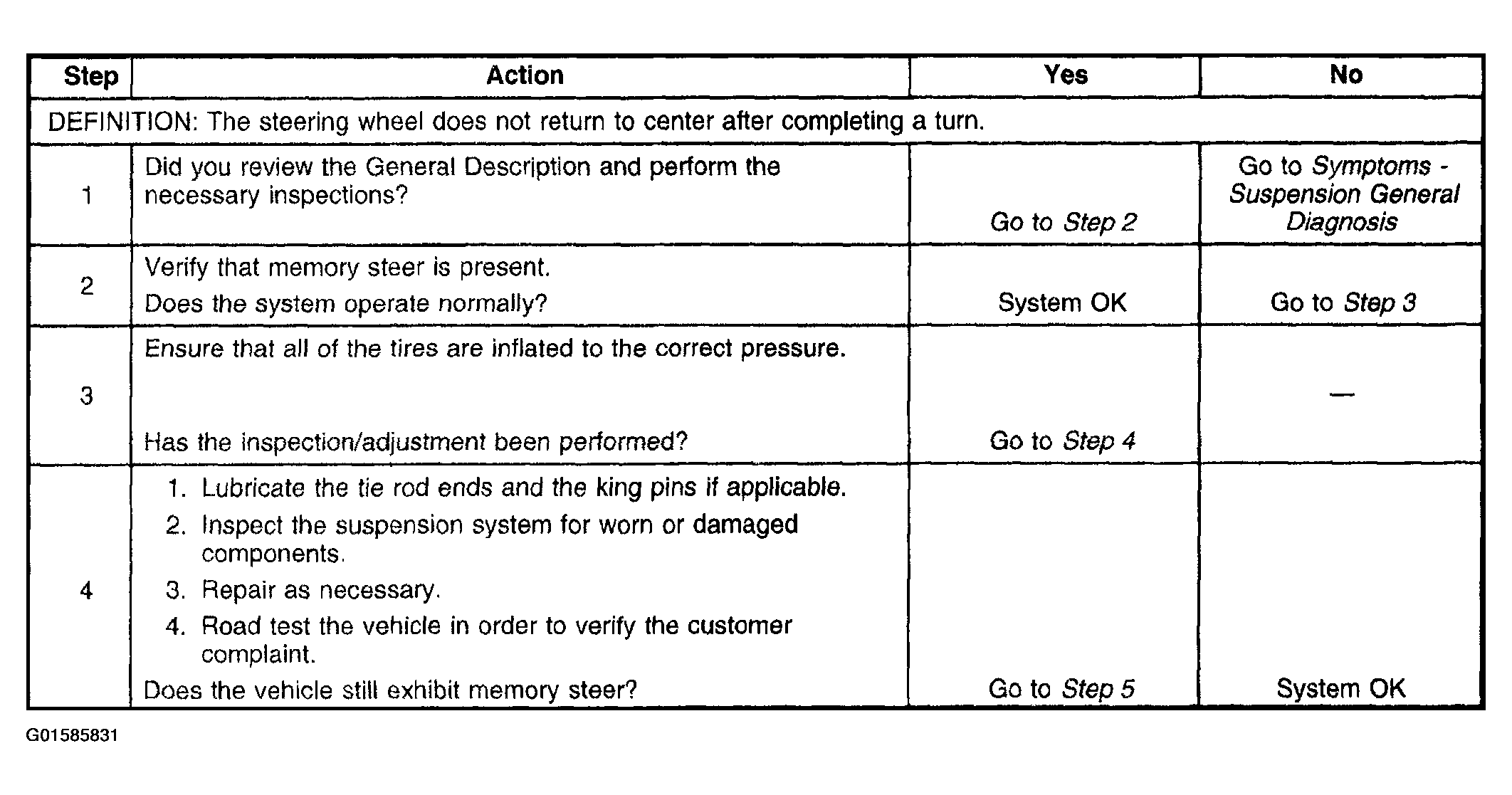

Fig 1: Memory Steer (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

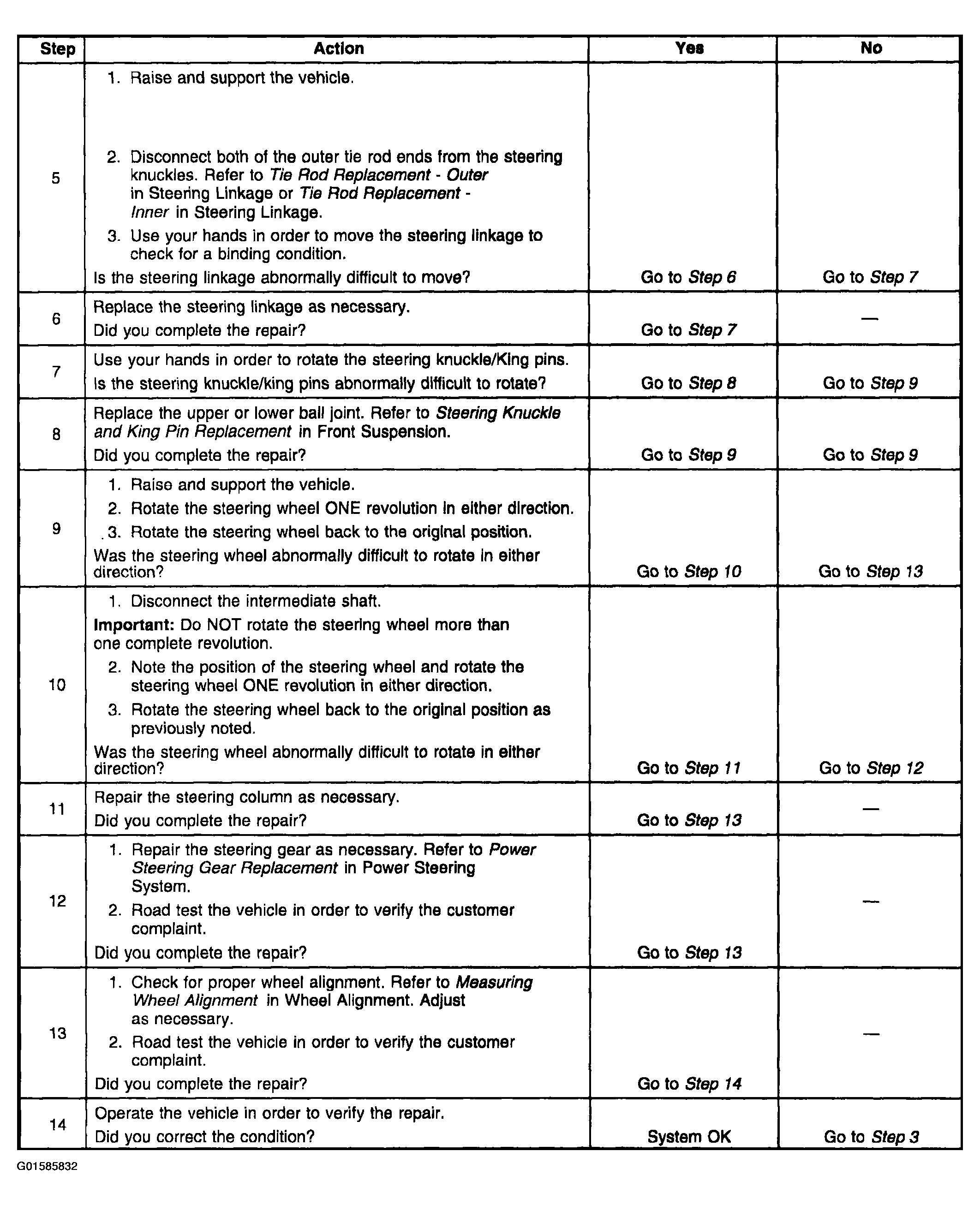

Fig 2: Memory Steer (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
