VSS Buffer Module: Removal

WARNING: This page is about a different car, the 2002 GMC Cab & Chassis Sierra and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box.

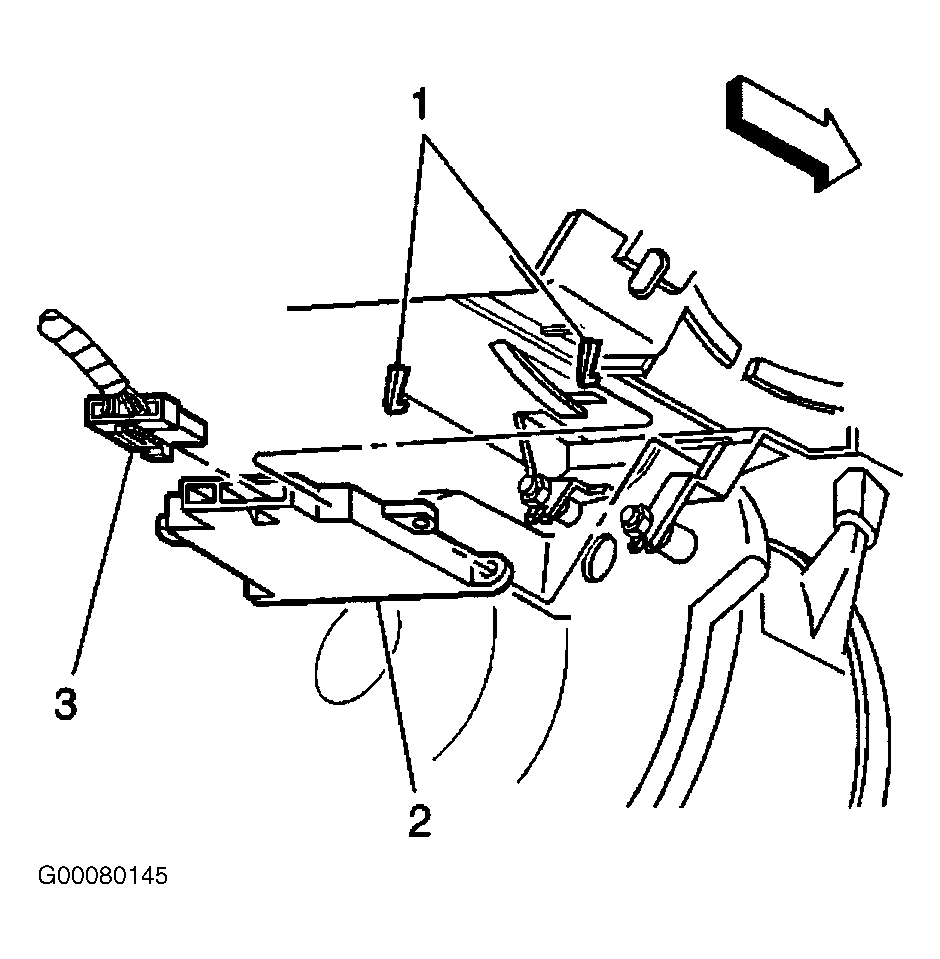

  2. Pull the retaining tabs (1) toward the back of the vehicle in order to release the Vehicle Speed Sensor (VSS) module (2). See Figure .
  3. Remove the VSS module (2) from the instrument panel carrier.
  4. Disconnect the electrical connector (3) from the VSS module (2).
  5. Remove the VSS module (2) from the vehicle.
