Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean and dry the VSS.
    2. Fig 1: Removing/Installing Vehicle Speed Sensor
    GM1548949Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the VSS and the retaining stud to 12 N.m (97 lb in).

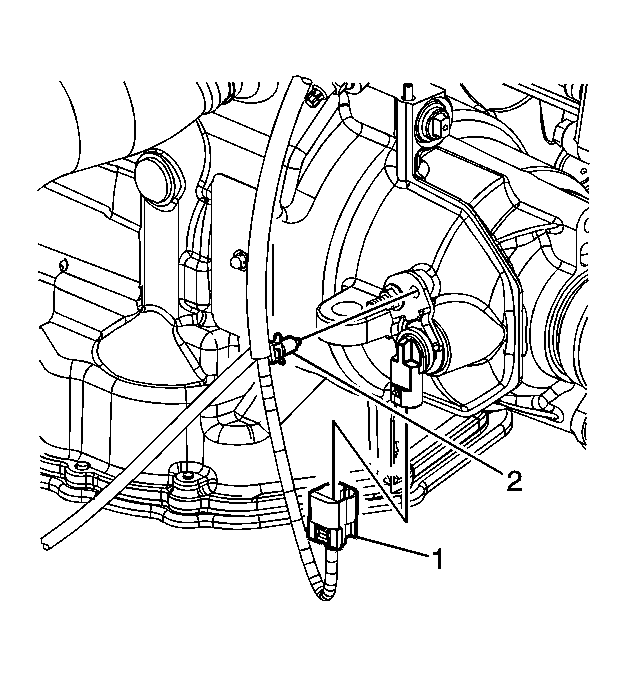

    3. Fig 2: VSS Electrical Harness Retainer
    GM1878229Courtesy of GENERAL MOTORS CORP.
  3. Install the VSS electrical harness retainer (2) to the VSS.
  4. Install the electrical connector (1) to the VSS.
  5. Lower the vehicle.
