Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

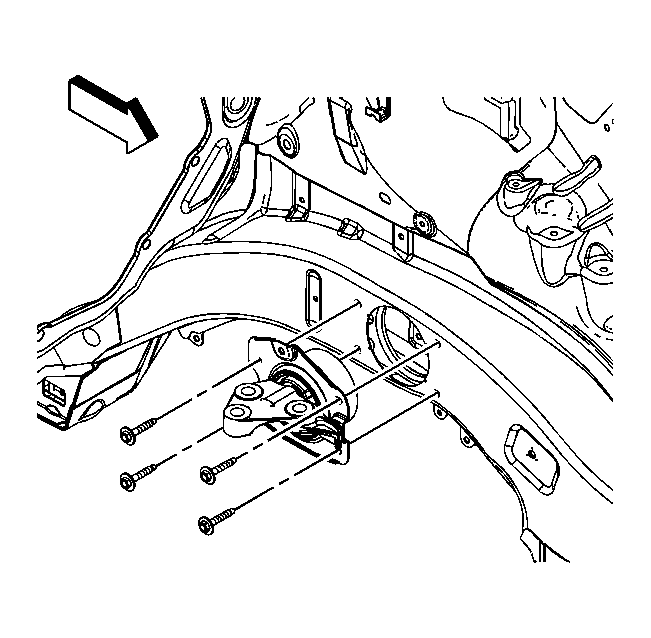

Fig 1: Transmission Mount To Frame Rail Bolts

Courtesy of GENERAL MOTORS CORP.

Install the left transmission mount.

CAUTION: Refer to Fastener Caution .

Install the transmission mount to frame rail bolts and tighten to 27 N.m (20 lb ft).

Fig 2: Transmission Mount Spacer Bolts And Spacer

Courtesy of GENERAL MOTORS CORP.

Install the transmission mount spacer and bolts and tighten the bolts to 50 N.m (37 lb ft).
Using the engine support, raise the transmission until the transmission mount spacer contacts the left transmission mount.

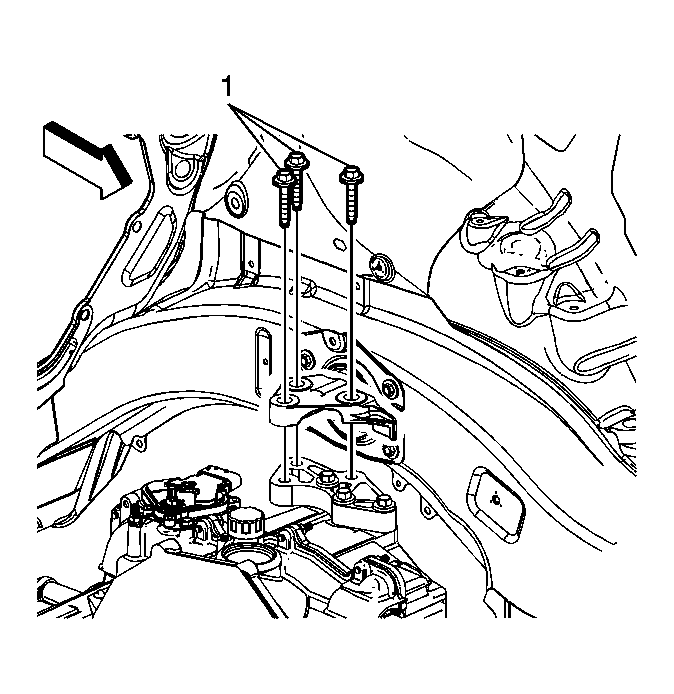

Fig 3: Transmission Mount To Transmission Mount Spacer Bolts

Courtesy of GENERAL MOTORS CORP.

Install the transmission mount to transmission mount spacer bolts (1) and tighten to 50 N.m (37 lb ft).
Raise the vehicle.

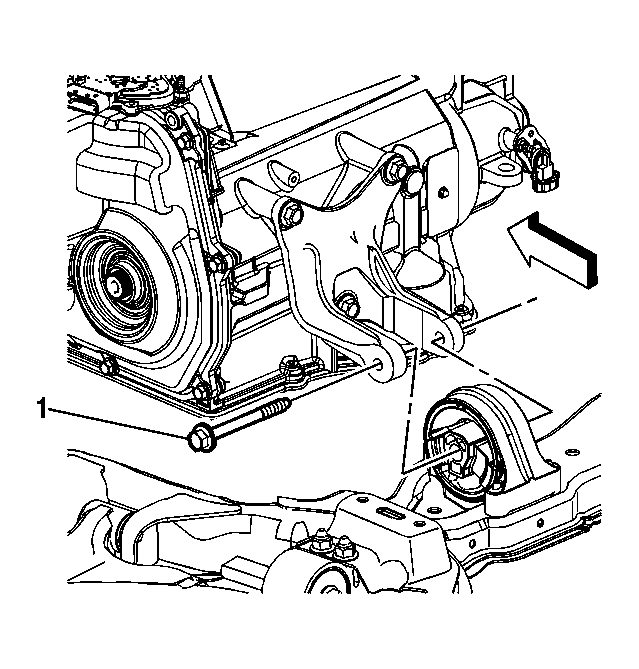

Fig 4: Rear Transmission Mount Thru Bolt

Courtesy of GENERAL MOTORS CORP.

Install the rear transmission mount thru bolt (1) and tighten to 100 N.m (74 lb ft).

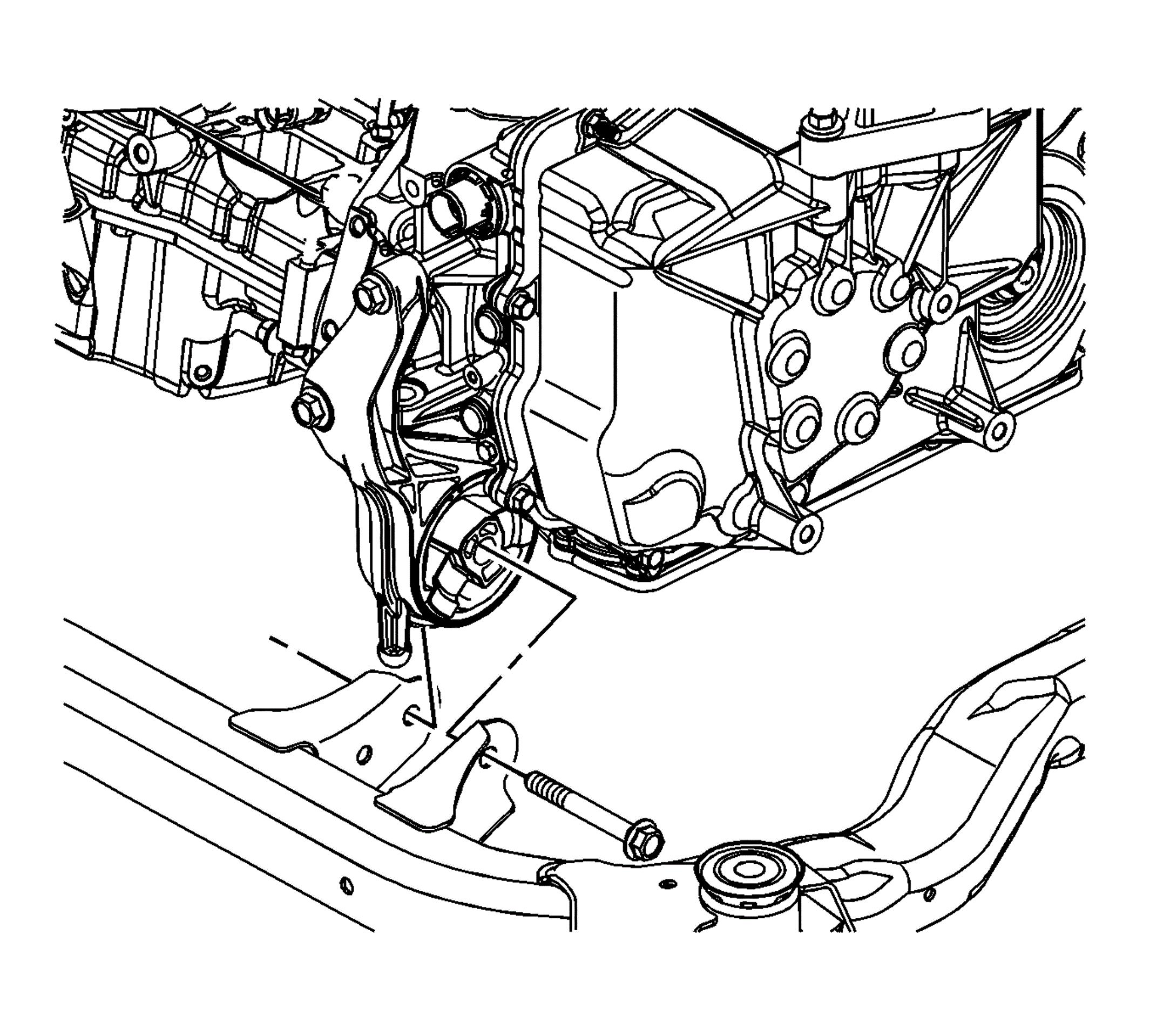

Fig 5: Front Transmission Mount Thru Bolt

Courtesy of GENERAL MOTORS CORP.

Install the front transmission mount thru bolt and tighten to 110 N.m (81 lb ft).
Lower the vehicle.
Remove the engine support fixture. Refer to Engine Support Fixture .
Install the battery box if equipped with 2.4L (LE5). Refer to Battery Box Replacement .
Install the battery tray support bracket if equipped with 2.4L (LAT). Refer to Battery Tray Support Bracket Replacement .
