Transmission Front Mount Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

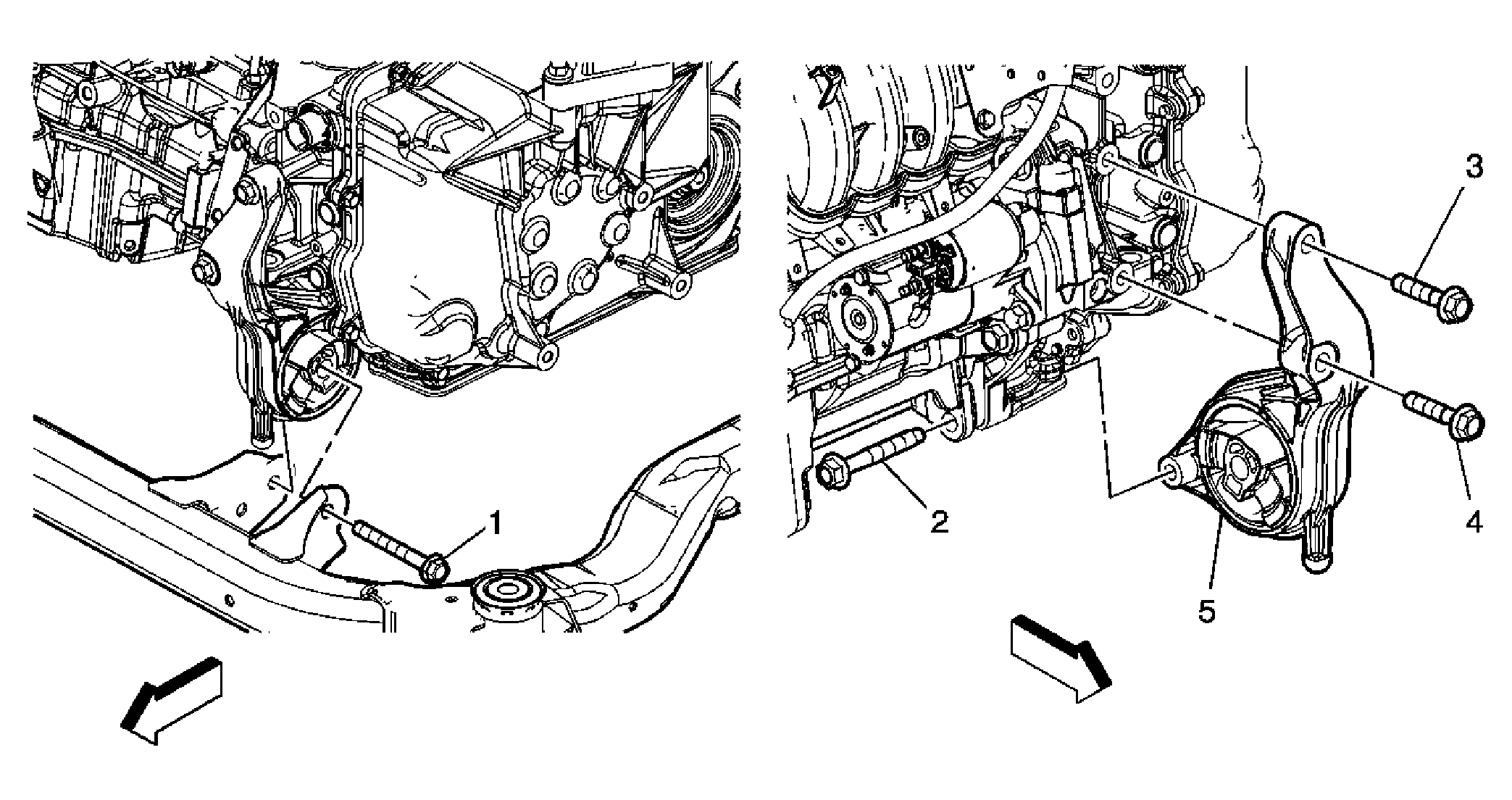

Fig 1: Transmission Front Mount

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front bumper fascia air deflector. Refer to Front Bumper Fascia Air Deflector Replacement . Support the transmission with a transmission jack stand.
1	Front Transmission Mount Thru Bolt CAUTION: Refer to Fastener Caution . Tighten: 110 N.m (81 lb ft)
2	Front Transmission Mount Bolt Tighten: 90 N.m (66 lb ft)
3	Front Transmission Mount Bolt Tighten: 90 N.m (66 lb ft)
4	Front Transmission Mount Bolt Tighten: 90 N.m (66 lb ft)
5	Front Transmission Mount
