Transmission Control Bracket Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

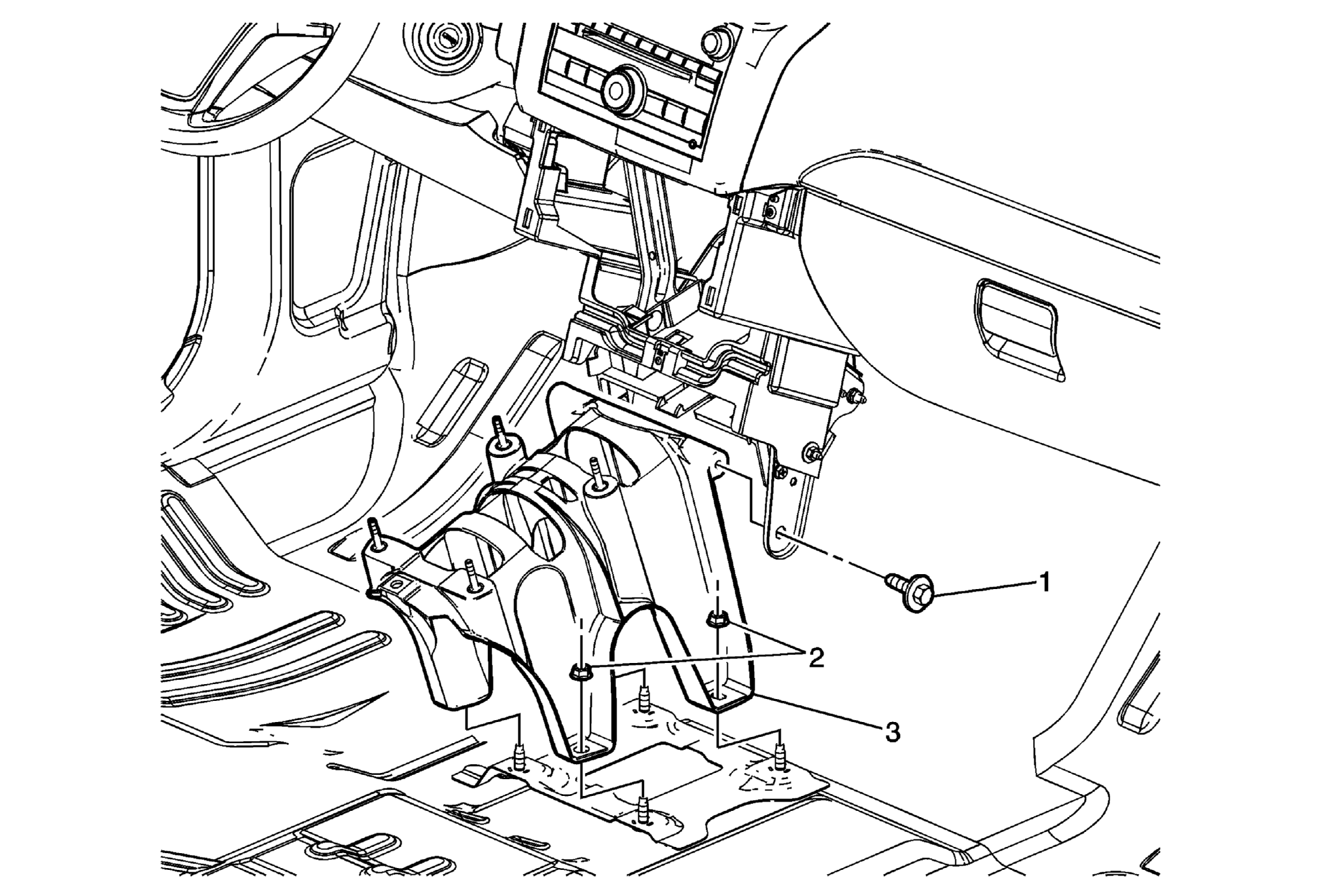

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the automatic transmission control. Refer to Transmission Control Replacement . |
|
| 1 | Transmission Control Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 25 N.m (18 lb ft) |
| 2 | Transmission Control Bracket Nut (Qty: 4) Tighten: 25 N.m (18 lb ft) |
| 3 | Transmission Control Bracket |
