Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Shift Cable Retainers
    GM1869726Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the range select cable (2) from the range select lever (1).
  2. Release the range select cable retaining clip (3) and remove the cable from the range select cable bracket (4).

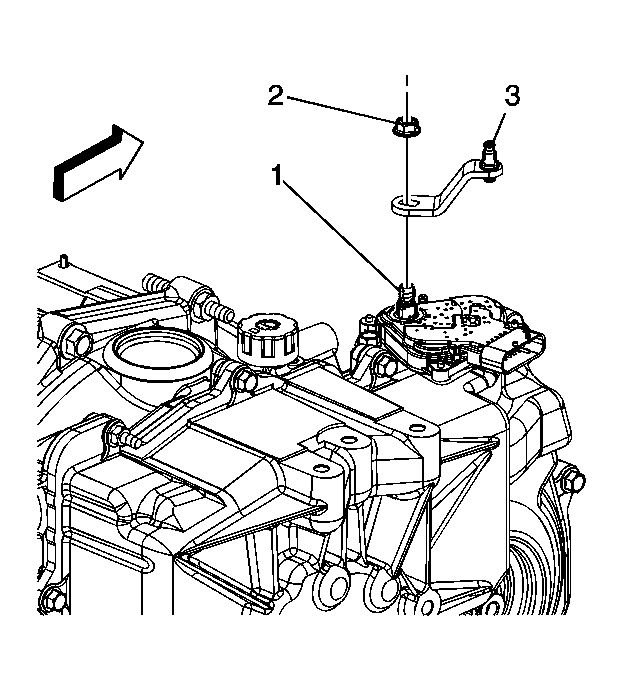

    3. Fig 2: Removing/Installing Transaxle Range Select Lever At Manual Shaft
    GM1547451Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission range select lever nut (2).
  4. Remove the transmission range select lever (3) from the transmission manual shaft (1).
