Automatic Transmission Control Indicator Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

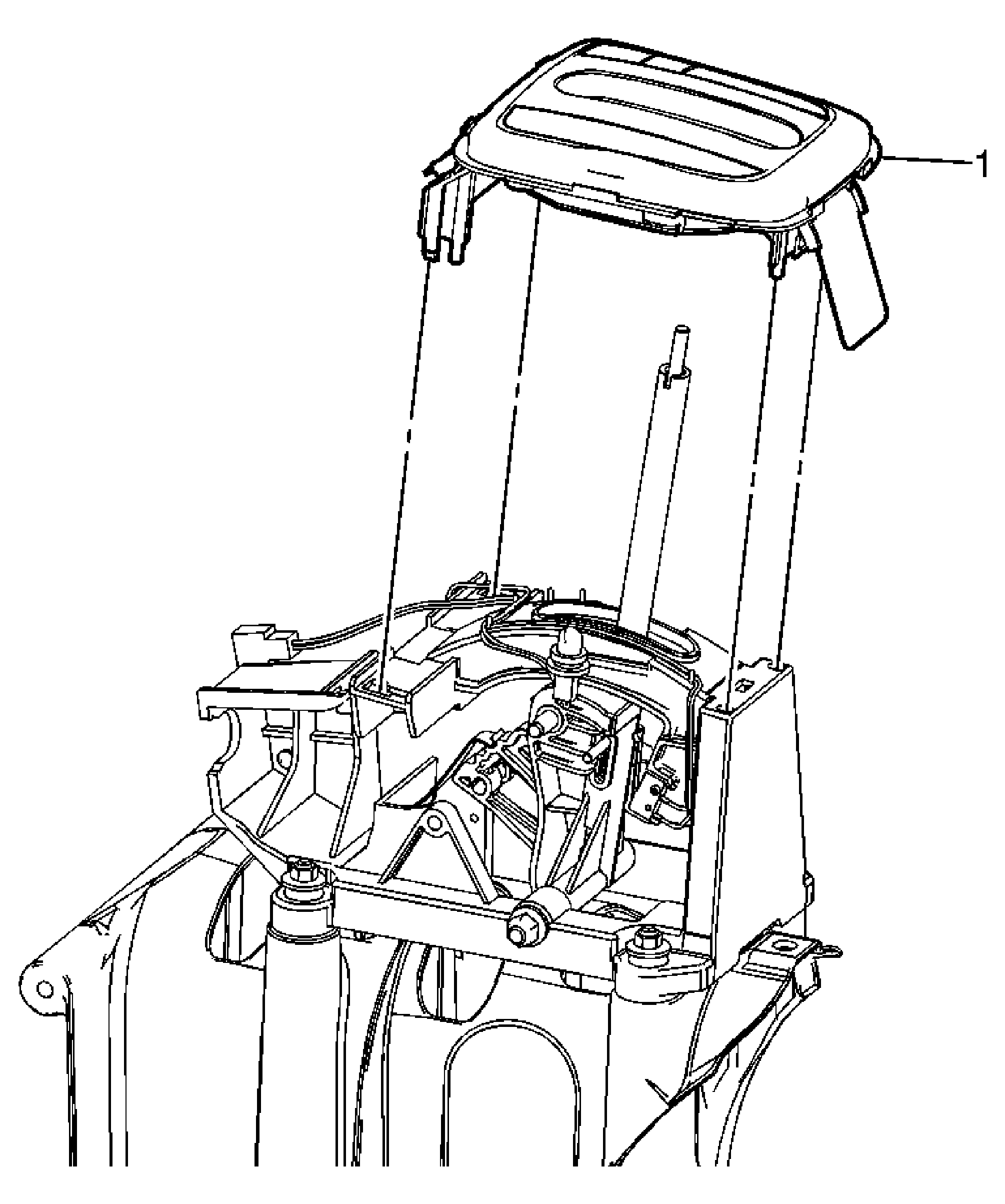

Fig 1: Automatic Transmission Control Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the automatic transmission control lever knob. Refer to Transmission Control Lever Knob Replacement . Remove the control position indicator bulb from the automatic transmisson control indicator.
1	Automatic Transmisson Control Indicator

Callout

Component Name

Preliminary Procedures

Remove the automatic transmission control lever knob. Refer to Transmission Control Lever Knob Replacement .
Remove the control position indicator bulb from the automatic transmisson control indicator.

Automatic Transmisson Control Indicator
